Photometers
PCE Instruments PCE-UV34 UV light meter with detachable cabled sensor and digital LCD display 1647
Technical specifications PCE-UV34 - UV Light Meter for Ultraviolet Radiation

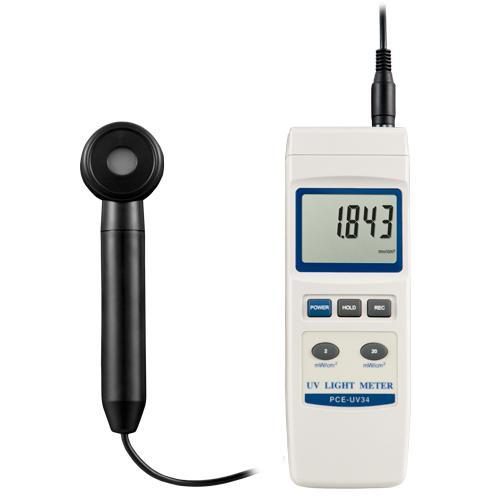

PCE Instruments PCE-UV34 UV light meter with digital display and external UV sensor
PCE Instruments PCE-UV34 UV light meter, white unit with PROBE INPUT port on the front

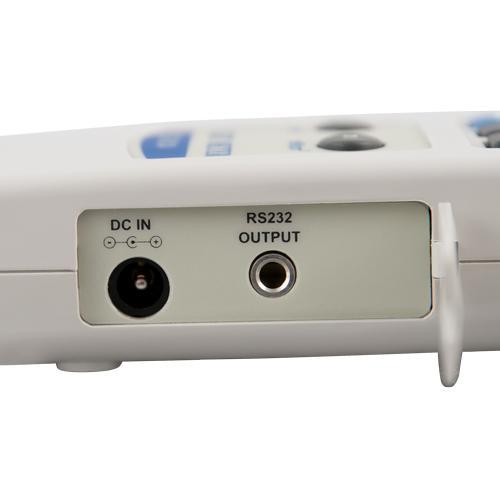

DC IN and RS232 OUTPUT ports on the PCE Instruments PCE-UV34 UV light meter, side close-up
Underside of the PCE Instruments PCE-UV34 UV light meter, white body with tripod thread and serial number label

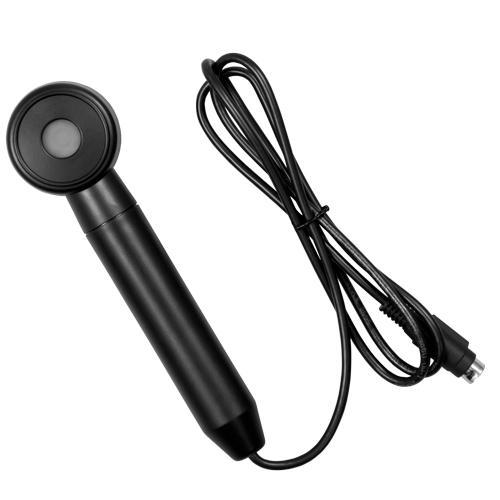

UV sensor for PCE Instruments PCE-UV34 UV light meter, black cylindrical with round head and connection cable
Man outdoors measuring UV with PCE Instruments PCE-UV34 UV light meter and cabled sensor
PCE Instruments PCE-UV34 UV light meter in use, with external sensor and backlit LCD display on a green background
PCE Instruments PCE-UV34 UV light meter used outdoors, with cabled sensor and handheld unit
PCE Instruments PCE-UV34 UV light meter with large display, POWER/HOLD/REC buttons and external cabled sensor
PCE Instruments PCE-UV34 UV light meter with detachable cabled sensor and digital LCD display 1647
Technical specifications PCE-UV34 - UV Light Meter for Ultraviolet Radiation
PCE Instruments PCE-UV34 UV light meter with digital display and external UV sensor
PCE Instruments PCE-UV34 UV light meter, white unit with PROBE INPUT port on the front
DC IN and RS232 OUTPUT ports on the PCE Instruments PCE-UV34 UV light meter, side close-up
Underside of the PCE Instruments PCE-UV34 UV light meter, white body with tripod thread and serial number label
UV sensor for PCE Instruments PCE-UV34 UV light meter, black cylindrical with round head and connection cable
Man outdoors measuring UV with PCE Instruments PCE-UV34 UV light meter and cabled sensor
PCE Instruments PCE-UV34 UV light meter in use, with external sensor and backlit LCD display on a green background
PCE Instruments PCE-UV34 UV light meter used outdoors, with cabled sensor and handheld unit
PCE Instruments PCE-UV34 UV light meter with large display, POWER/HOLD/REC buttons and external cabled sensor

Availability & price

Code Availability excl. VATincl. VAT Certificate Cart
PCE-UV34
€275,00
€341,00
0

Description

Range 0.000 to 1.999 mW/cm² or 0.000 to 19.9 W/m²
1.999 to 19.99 mW/cm² or 19.99 to 199.9 W/m²
Resolution 0.001 mW/cm²
Accuracy ±4% + 2 digits
Response time 0.4 seconds
Wavelength Wide range from 290 to 390 nm
Zero reset Pressing a key
Light sensor Photodiode with UV correction filter
Memory Minimum, maximum and hold values (MIN, MAX, HOLD)
Automatic power off after 10 minutes of inactivity
Display 22 mm / 0.9 in LCD
Overrange indication "----"
Operating conditions     0 to 50°C / 32 ... 122°F max. 80% RH
Power supply 9V battery
Dimensions Device: 68 x 200 x 30 mm / 2.7 x 7.9 x 1.2 in
Light sensor: 68 x 60 x 27 mm / 2.7 x 2.4 x 1.1 in
Weight 220 g / < 1 lb (with battery)

UVA/UVB radiation meter PCE-UV34
measures UV radiation, with external sensor
The PCE-UV34 radiation meter is a device used to measure UVA and UVB radiation, which is why it has a wide range of applications in industrial and laboratory environments. This precision meter operates at a wavelength from 290 to 390 nm.

- Two measurement ranges:
  - 0.000 to 1.999 mW/cm2 or 0.000 to 19.9 W/m²
  - 1.999 to 19.99 mW/cm2 or 19.99 to 199.9 W/m²
- External sensor with UV correction filter
- Automatic battery shutdown after 10 minutes of inactivity
- Large LCD display
- Minimum, maximum value functions and data hold
- Compact design

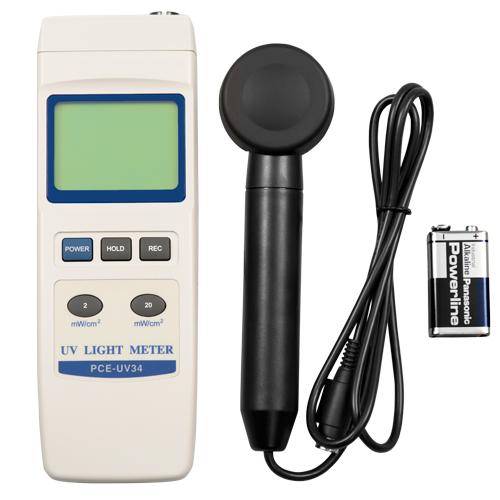

Package contents
1 x PCE-UV34 photometer
1 x UV sensor
1 x 9V battery
1 x User manual

Technical Documents 2

Datasheet Technical datasheet Manual User manual
