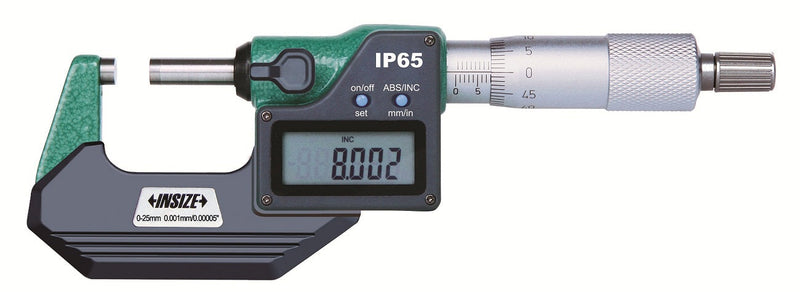

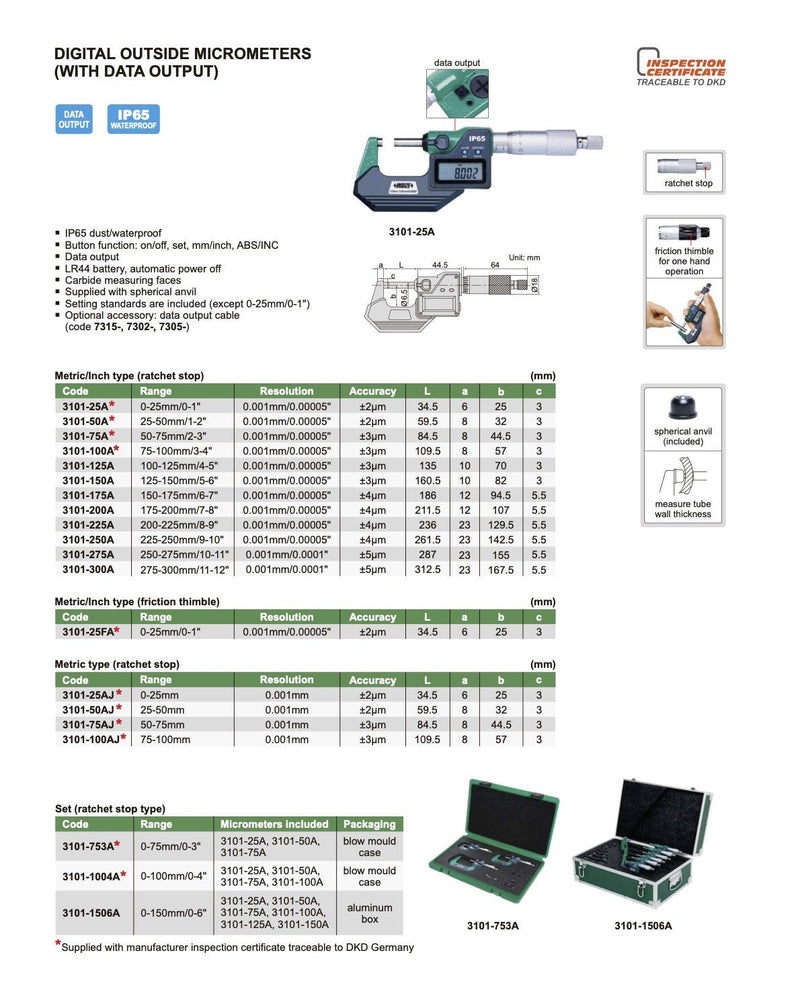

- Resolution 0.001mm/0.00005" (resolution of 3101-275A and 3101-300A is 0.001mm/0.0001")
- IP65 dust/waterproof
- Button function: on/off, set, mm/inch, ABS/INC, data output
- Data output
- LR44 battery, automatic power off
- Carbide measuring faces
- Supplied with spherical anvil
- Setting standards are included (except 0-25mm/0-1")
- Optional accessory: data output cable(code 7306-30, 7302-SPC2A, 7305-SPC3)
IPXY
-
X = Protection against solid objects & access to hazardous parts
-
Y = Protection against water ingress
| Value | 1st Digit – Solids / Access | 2nd Digit – Water |
|---|---|---|
| 0 | No protection | No protection |
| 1 | Protection against solids ≥50 mm (test probe Ø50 mm) | Vertical falling drops |
| 2 | Protection against solids ≥12.5 mm (test probe Ø12.5 mm) | Drops with tilt up to 15° |
| 3 | Protection against solids ≥2.5 mm (test probe Ø2.5 mm) | Spraying up to 60° |
| 4 | Protection against solids ≥1 mm (test probe Ø1 mm) | Splashing from all directions |
| 5 | Protection against dust (limited ingress without harmful effects) | Water jets (nozzle 6.3 mm) |
| 6 | Complete dust-tightness (dust-tight) | Powerful water jets (nozzle 12.5 mm) |
| 7 | — | Temporary immersion (usually 1 m / 30 min) |
| 8 | — | Continuous immersion (depth & time specified by manufacturer) |
| 9 / 9K | — | High-pressure & high-temperature water jets |
2 Years Warranty
INSIZE Factory
INSIZE was founded in 1995 and is one of the world’s leading manufacturers of measuring instruments and metrology equipment.
With factories in China and other countries in Asia, as well as production facilities in Germany and Italy for the INSIZE PLUS series, the company offers products that stand out for their accuracy, durability, and reliability, while being distinguished by an excellent quality-to-price ratio.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of INSIZE in Greece since 2007. We have more than 1,500 INSIZE product codes in stock, a number that is continuously increasing. In addition, we can support the entire range of the Insize catalog which includes more than 40,000 different product codes.
In our store we provide technical support for all INSIZE products through trained technicians, while ensuring high availability of spare parts, ensuring prompt service and reliability for our customers.
INSIZE Products
INSIZE offers a complete range of measuring instruments for industrial, machining and laboratory use, such as:
- Calipers and Micrometers
- Dial Indicators and Depth Gauges
- Bore Gauges, Telescopic Gauges, Vernier Height Gauges, as well as Measuring Rules
- Precision Levels, Squares, and Straightedges
- Surface Plates, Height Gauges, and Johansson Gauge Blocks
- Thread, Hole, and Shaft Gauges
- Hardness Testers, Roughness Testers, Ultrasonic Thickness Gauges and Coating Thickness Gauges
- Dynamometers, Tachometers, and Endoscopes
- CMM measuring systems, Profile Projectors, as well as Microscopes
All of its products meet European specifications, following various international quality and safety standards.
| SKU | Range | Reading | Availability |
Price
+VAT
|
Certificate |
Cart
Quote
|
|---|---|---|---|---|---|---|
| 3101-25A | 0-25 mm | 0.001 mm | 1 available |
+VAT
€170,00
|
5-8 business days
|
|
| 3101-50A | 25-50 mm | 0.001 mm | 5-8 business days |
+VAT
€218,00
|
5-8 business days
|
|
| 3101-75A | 50-75 mm | 0.001 mm | 5-8 business days |
+VAT
€238,00
|
5-8 business days
|
|
| 3101-100A | 75-100 mm | 0.001 mm | 5-8 business days |
+VAT
€265,00
|
5-8 business days
|
|
| 3101-125A | 100-125 mm | 0.001 mm | 5-8 business days |
+VAT
€311,00
|
5-8 business days
|
|
| 3101-150A | 125-150 mm | 0.001 mm | 5-8 business days |
+VAT
€324,00
|
5-8 business days
|
|
| 3101-175A | 150-175 mm | 0.001 mm | 5-8 business days |
+VAT
€339,00
|
5-8 business days
|
|
| 3101-200A | 175-200 mm | 0.001 mm | 5-8 business days |
+VAT
€368,00
|
5-8 business days
|
|
| 3101-225A | 200-225 mm | 0.001 mm | 1 available |
+VAT
€399,00
|
5-8 business days
|
|
| 3101-250A | 225-250 mm | 0.001 mm | 1 available |
+VAT
€428,00
|
5-8 business days
|
|
| 3101-275A | 250-275 mm | 0.001 mm | 1 available |
+VAT
€449,00
|
5-8 business days
|
|
| 3101-300A | 275-300 mm | 0.001 mm | On Order |
+VAT
€499,00
|
5-8 business days
|
