PCE-PMI 3 - Moisture meter for building materials
| Measurement function | Measurement range |
| Relative humidity (%) | 0.0 ... 99.9% |
| Anhydride (weight of water in %) | 0.0 ... 3.5% |
| Anhydride (Calcium Carbide Method) * | 0.0 ... 1.5% |
| Cement mortar (weight of water in %) | 0.0 ... 4.7% |
|
|
|
| Cement Mortar (Calcium Carbide Method) * | 0.0 ... 3.0% |
| Concrete (weight of water in %) | 0.0 ... 6.0% |
| Gypsum plaster (weight of water in %) | 0.0 ... 10.0% |
| Hardwood/ Oak (water weight in %) | 0.0 ... 37.0% |
| Softwood/ Spruce (weight of water in %) | 0.0 ... 51.0% |
|
|
|
| * The calcium carbide method is approximate. | |
| General characteristics | |
| Accuracy | ± 0.5% |
|
Reading |
0.1% |
| Power supply | 2 x 1.5V AA batteries |
| Operating time | About 20 hours |
| Automatic shutdown | After 5 minutes of inactivity |
| Menu languages | English, German, Dutch, Spanish, French |
| Screen | Graphics monochrome, 128 x 64 pixels, 61 x 33 mm, backlit |
| Operating conditions | 5 ... 40°C / 41 ... 104 °F |
| Dimensions | 147 x 89 x 33mm / 5.8 x 3.5 x 1.3in |
| Weight | 200 g / < 1 lb (with batteries) |
Moisture meter for PCE-PMI 3 building materials
Moisture meter with different menu languages / Auto power off to save battery / For concrete and wood
Moisture meter with different menu languages / Auto power off to save battery / For concrete and wood

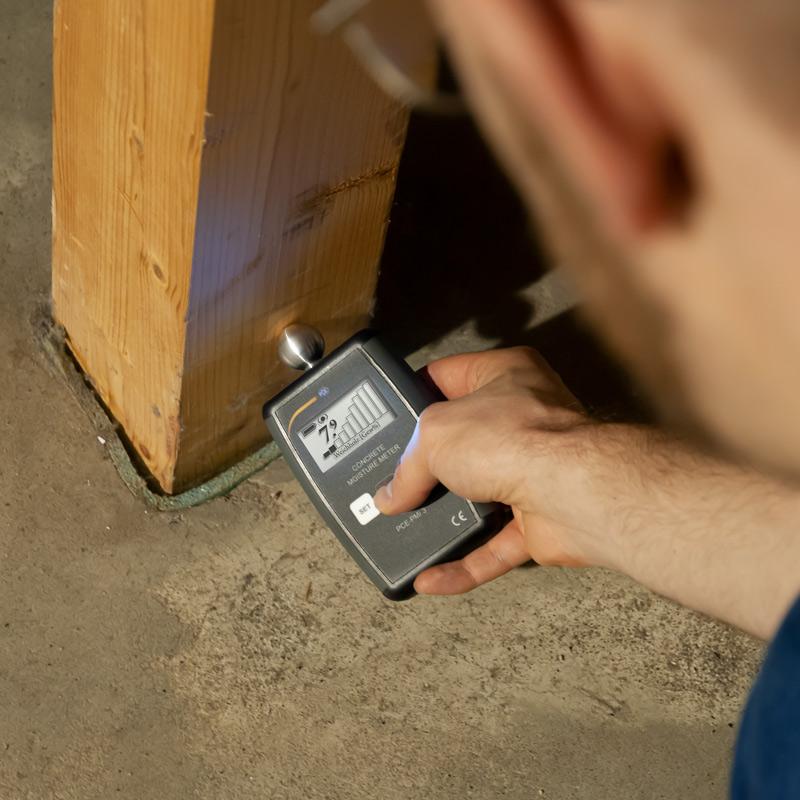

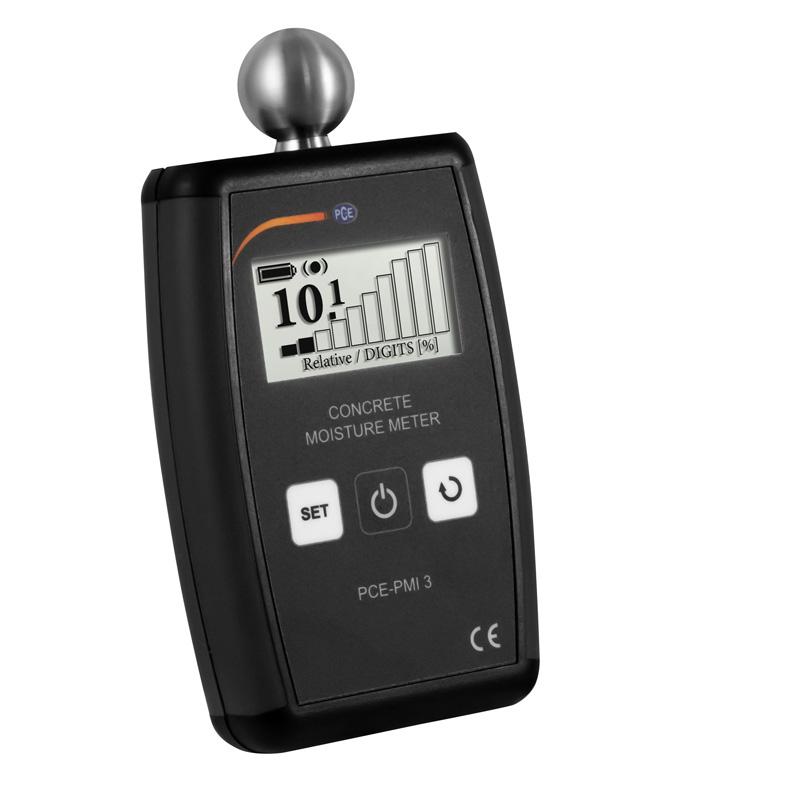

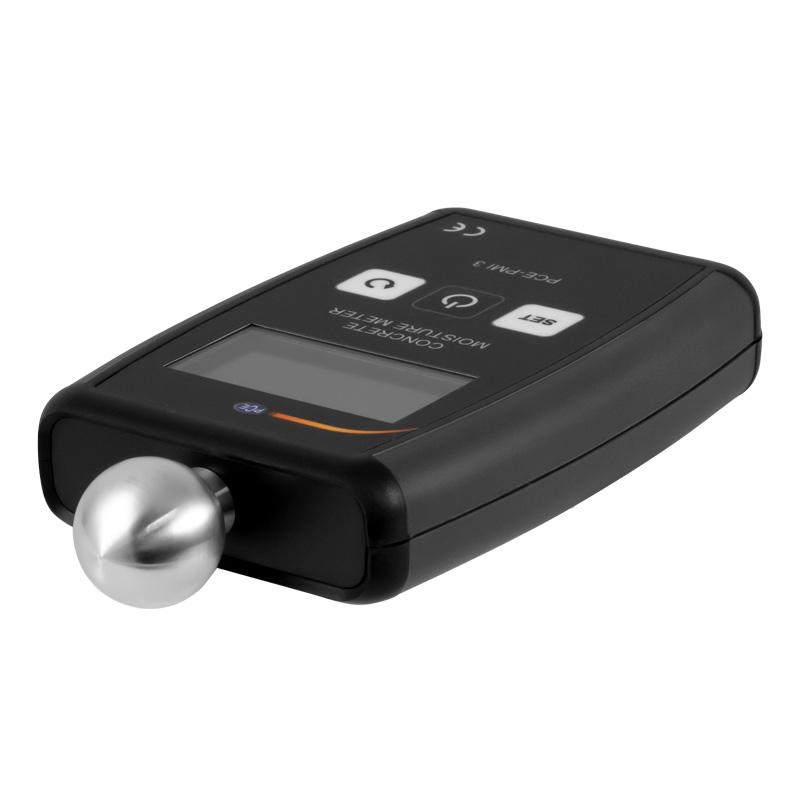

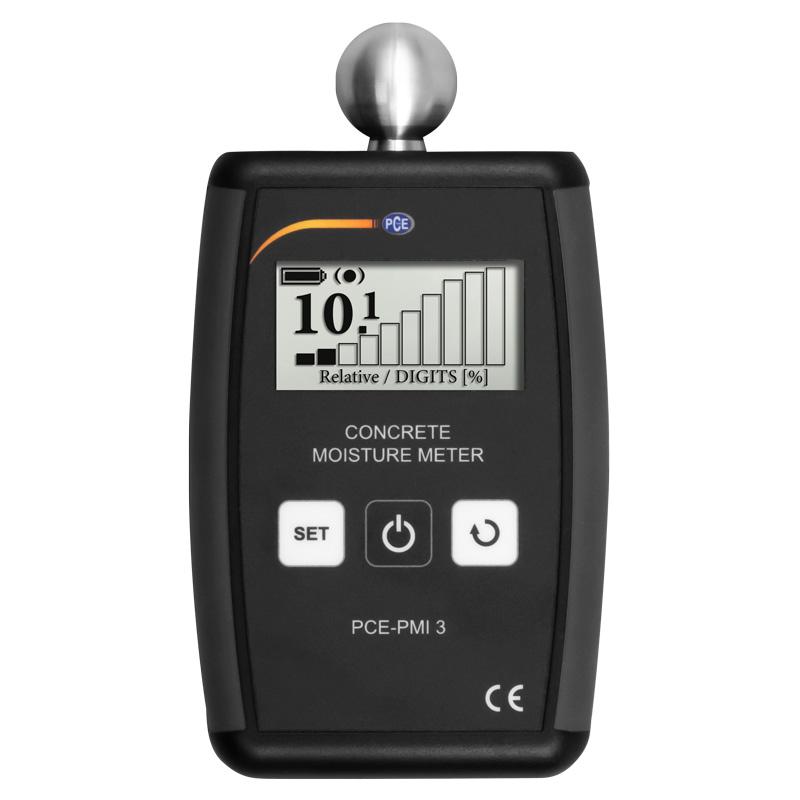

The PCE-PMI 3 moisture meter is a small and reliable instrument for measuring moisture in concrete and wood. The user selects the material of the surface to be measured on the device and then touches the metallic spherical sensor to the surface. The result of the measurement is displayed on the moisture meter both numerically and graphically after a few seconds.
A different alarm limit can be stored in the moisture meter for each material and measurement method. When the measurement exceeds this limit, an audible alarm is triggered. The device turns off automatically after 5 minutes of inactivity.
Another special feature of the PCE-PMI 3 moisture meter is that when it comes to measurement in concrete coatings it gives the possibility to display the indication based on the Calcium carbide method, where the measured value is measured in CM%.
- For measurements on wood and concrete
- Ergonomic design with anti-slip housing
- Adjustable alarm thresholds
- Measurement display with digits and graph
- Easy operation with three buttons
- Automatic shutdown
Package contents
1 x Moisture meter for building materials PCE-PMI 3
1 x Carrying case
2 x 1.5V AA battery
1 x User Manual
2 x 1.5V AA battery
1 x User Manual
