Name: pH meter with built-in probe
Brand: PCE Instruments
SKU: PCE-PH 22
Price: 147.56 EUR
Availability: InStock

pH Meters

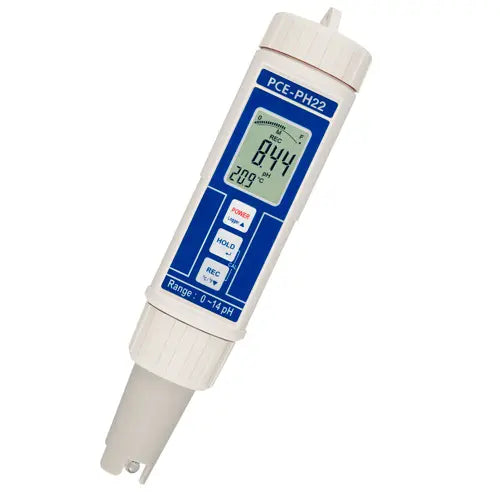

Μετρητής pH PCE Instruments PCE-PH 22 με ενσωματωμένο probe, ψηφιακή οθόνη και κουμπιά HOLD/REC, λευκό-μπλε σώμα

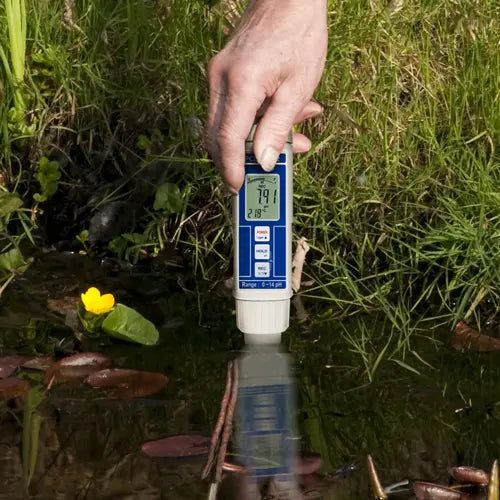

Μετρητής pH PCE Instruments PCE-PH 22 με ενσωματωμένο probe, σε χρήση σε νερό με ψηφιακή οθόνη LCD

Μετρητής pH PCE Instruments PCE-PH 22 τύπου στυλό με ψηφιακή οθόνη, δίπλα σε δοχεία και καπάκια βαθμονόμησης

Description

Measuring range	0.0 ... 14.0 pH -5 ... 80°C / 23 ... 176°F
Reading	0.01 pH 0.1°C / 0.18°F
Accuracy	± 0.02 pH ± 0.8°C / 1.4°F
Calibration	Automatic at pH 4, pH 7
Temperature compensation	-5 ... 80°C / 23 ... 176°F
Display	4-digit LCD
Operating conditions	0 ... 60°C / 32 ... 140°F, <80% RH
Dimensions	186 x 40 mm / 7.3 x 1.6 in
Power	4 x 1.5V AAA batteries (incl.)
Weight	130 g / < 1 lb

PCE-PH 22 pH meter -
Device for simultaneous measurement of pH and temperature

The waterproof pH meter PCE-PH 22 is used for quick and accurate measurement of pH and temperature. Due to the practical and large display, both values are shown simultaneously on the meter. The pH meter can also be used under harsh environmental conditions, thanks to its waterproof and robust housing (IP 67).

Recalibration always guarantees optimal accuracy and is very easy to perform using the optionally available calibration kits (automatic calibration function without calibration screws - to be performed only via the keyboard).

- Dual display: pH and temperature
- Automatic temperature compensation
- (ATC) in the range 0 ... 80°C / 32 ... 176°F
- Temperature display (°C, °F)
- MIN / MAX-HOLD functions (Data - Hold)
- 100-point data logger (available on screen with the press of a button)
- Waterproof with IP 67 rating
- Fully automatic calibration: Saves time and offers high accuracy
- Automatic shutdown
- Batteries included

Package contents

1 x pH meter PCE-PH 22

1 x Calibration solution PH 4
1 x Calibration solution PH 7
1 x Battery
1 x User manual

Technical Documents

PDF

Manual

IP Protection

IPXY

X = Protection against solid objects & access to hazardous parts
Y = Protection against water ingress

Value	1st Digit – Solids / Access	2nd Digit – Water
0	No protection	No protection
1	Protection against solids ≥50 mm (test probe Ø50 mm)	Vertical falling drops
2	Protection against solids ≥12.5 mm (test probe Ø12.5 mm)	Drops with tilt up to 15°
3	Protection against solids ≥2.5 mm (test probe Ø2.5 mm)	Spraying up to 60°
4	Protection against solids ≥1 mm (test probe Ø1 mm)	Splashing from all directions
5	Protection against dust (limited ingress without harmful effects)	Water jets (nozzle 6.3 mm)
6	Complete dust-tightness (dust-tight)	Powerful water jets (nozzle 12.5 mm)
7	—	Temporary immersion (usually 1 m / 30 min)
8	—	Continuous immersion (depth & time specified by manufacturer)
9 / 9K	—	High-pressure & high-temperature water jets
