| Technical specifications of the PCE-SD series scales | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| * The minimum load is defined here as the load against which the scale calibration is checked | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Calibration | M III (delivered calibrated) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Piece counting function |
measurement with reference values | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TARE function |
100% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Connectivity |
RS-232, 2 directions Description of interface RS-485, LAN and USB (optional) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Display |
LED with 20 mm digit height | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power supply |
12 V / 1.4 A power supply included | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Sealing class |
IP 54 (Splash-proof and dust-resistant) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating temperature |
- 10 °C ... + 40 °C | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions |
400 x 620 x 850 - 870 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight |
~12 kg | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
PCE-SD scale / weighing platform 400 x 500 mm or 500 x 600 mm / Bidirectional RS-232 /
Piece counter / Summation function / RS-485, optional analog outputs 4-20 mA, 0 - 10 V

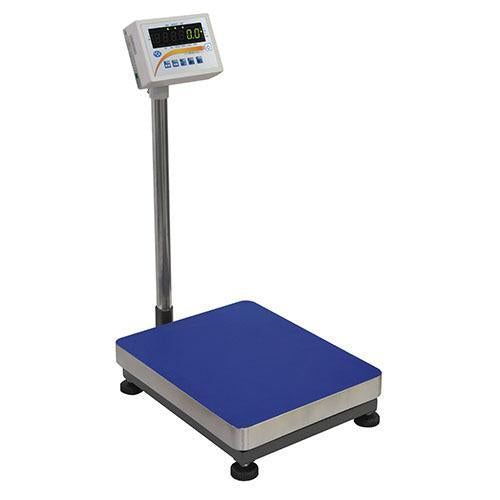

The PCE-SD is a multifunction precision scale. The scale calibration is performed according to the calibration instructions of Class M III. Features adjustable feet and an integrated level for aligning the scale even on inclined mounting surfaces. The display is mounted on a support arm, which is fixed to the base of the scale. The base is made of lacquered steel and has a platform with a plastic coating made of steel.
- Calibration (delivered calibrated)
- Bidirectional RS-232
- Piece counter
- Summation function
- Max, Min function
- Percentage weighing display
- Formula weighting
- Statistical function
- Animal weighing function
- Mixed/net weight measurement function
- Tare data storage
- Weighing threshold MIN / MAX / OK
- 3 potential-free contacts (optional)
- Optional analog outputs (4-20 mA / 0-10 V)
- Bidirectional RS-232
- Piece counter
- Summation function
- Max, Min function
- Percentage weighing display
- Formula weighting
- Statistical function
- Animal weighing function
- Mixed/net weight measurement function
- Tare data storage
- Weighing threshold MIN / MAX / OK
- 3 potential-free contacts (optional)
- Optional analog outputs (4-20 mA / 0-10 V)
Package contents
1 x PCE-SD Scale (delivered calibrated)
1x Transformer
1x Instruction manual
1x Transformer
1x Instruction manual
| Code | Max Weight | Reading | Dimensions | Availability | Price excl. VAT | Certificate | Cart |
|---|---|---|---|---|---|---|---|
| PCE-SD 30C | 30 | 10 | 400 x 500 mm | On Order |
€789,00
|
||
| PCE-SD 60C | 60 | 20 | 400 x 500 mm | On Order |
€815,00
|
||
| PCE-SD 150C | 150 | 50 | 400 x 500 mm | On Order |
€815,00
|
||
| PCE-SD 300C | 300 | 100 | 400 x 500 mm | On Order |
€915,00
|
||
| PCE-SD 33C | 30 | 10 | 500 x 600 mm | On Order |
€969,00
|
||
| PCE-SD 63C | 60 | 20 | 500 x 600 mm | On Order |
€969,00
|
||
| PCE-SD 153C | 150 | 50 | 500 x 600 mm | On Order |
€969,00
|
||
| PCE-SD 303C | 300 | 100 | 500 x 600 mm | On Order |
€969,00
|
