Description
The dynamometer can be used to measure both tensile and compressive forces with high accuracy. Tensile and compressive forces are often measured in the test laboratory. For example, to determine the yield point, the tear-off force or the force required to actuate buttons or switches. The device has an internal measuring cell and can measure forces up to 1000 N. Various eyelets or hooks with M6 threads can be attached to the measuring cells. It is also possible to attach your own devices to the measuring cell with these threads.
The internal memory of 32 GB offers space for 30 million measuring points. This allows measurement logs to be created, saved and exported. The dynamometer has a USB-C interface that can be used to read the measurement data into the PC software. The dynamometer is equipped with a graphic LCD that displays the measured values both numerically and graphically. In addition, a bar chart shows the measured value in the selected measuring range. Various force test stands are available for adapting the force transducer.
Highlights
Specification
| Force | |
| Measuring range | 0 ... 1000 N |
| Resolution | 0.5 N |
| Accuracy | ± 0.05 % F.S. |
| General technical data | |
| Units | kPa, kg, g, ft, N, lb, t, kN, Pa, Nm, Ncm |
| Display type | LCD with illumination |
| Display size | 2.8 inch |
| Adjustable measurement rate | 1 ... 7200 Hz |
| Memory medium | Internal memory |
| Storage capacity | 32 GB |
| Memory interval of | 1 Hz |
| Memory interval up to | 7200 Hz |
| Operating time | 13 h |
| Automatic switch-off adjustable | 1 ... 15 min. |
| Automatic switch-off can be deactivated | Yes |
| Alarm | Optical, acoustic |
| Alarm modes | Inside, Outside, Crack, Switch off |
| Menu language | German, English, French, Italian, Spanish, Dutch, Portuguese, Danish, Turkish, Polish, Russian, Chinese, Japanese |
| Protection class (device) | IP52 |
| Power supply | USB 5 V DC, 500 mA |
| Weight | 255 g |
| Dimensions (L x W x H) | 165 x 85 x 32 mm |
| Operating conditions | -20 ... 65 °C, 10 ... 95 % r.H |
| Storage conditions | -20 ... 65 °C, 10 ... 65 % r.H |
Delivery Scope
Downloads
| Code | Range N | Reading | Range Kg | Availability | Price excl. VAT | Certificate | Cart |
|---|---|---|---|---|---|---|---|
| PCE-DFG 5 X | 5 N | 0.001 N | 0.5 | On Order |
€935,00
|
||
| PCE-DFG 10 X | 10 N | 0.005 N | 1 | 1 available |
€934,00
€654,00
|
||
| PCE-DFG 20 X | 20 N | 0.01 N | 2 | On Order |
€935,00
|
||
| PCE-DFG 200 X | 200 N | 0.1 N | 20 |
5-8 business days
Αποθήκη PCE Instruments: 2 available.
Estimated delivery 5–8 business days.Details
Αποθήκη PCE Instruments: 2 available.
Estimated delivery 5–8 business days.
|
€935,00
|
||
| PCE-DFG 500 X | 500 N | 0.1 N | 50 |
5-8 business days
Αποθήκη PCE Instruments: 1 available.
Estimated delivery 5–8 business days.Details
Αποθήκη PCE Instruments: 1 available.
Estimated delivery 5–8 business days.
|
€915,00
|
||
| PCE-DFG 1000 X | 1000 N | 0.5 N | 100 | On Order |
€940,00
|
Clamp for Dynamometer
None Clamping device with large opening width for pull or push test of cable, rigid material or electronic components. - Capacity 5000 N / 1,...
View full details
Vertical Motorized Dynamometer Stand 500 N
Force range 500 N / 50 kg / 110 lb Distance display resolution 0.02 mm Travel path 270 mm / 10.6" Speed 1 ... 500 mm/min Resolution...
View full details
Ring Adapter for Torque Wrench
Adapter ring for tensile tests. Diameter is 20 mm and max. capacity is 0.5 kN / 500 N / 112.4 lbs. - Useful for tension test of springs or w...
View full details

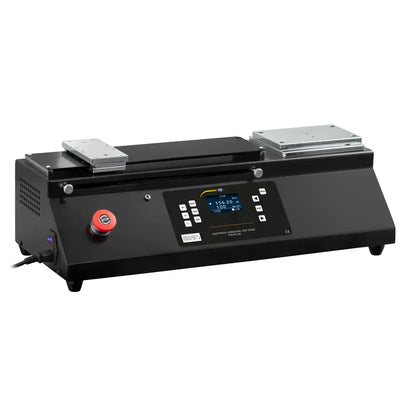

Horizontal Motorized Dynamometer Base 500 N
