Environmental Sound Level Meter Class II - Bluetooth - iOS Android App - Memory 32700 measurements
- Accuracy class 2, IEC 61672-1
- Range 30 ... 130 dB
- Bluetooth app for Android/iOS
- Logger for 32700 readings
- Battery or mains operation
Availability & price
| Code | Availability | excl. VAT | incl. VAT | Certificate | Cart |
|---|---|---|---|---|---|
| PCE-323 |
€306,00
|
€379,44
|
- Accuracy class 2, IEC 61672-1
- Range 30 ... 130 dB
- Bluetooth app for Android/iOS
- Logger for 32700 readings
- Battery or mains operation

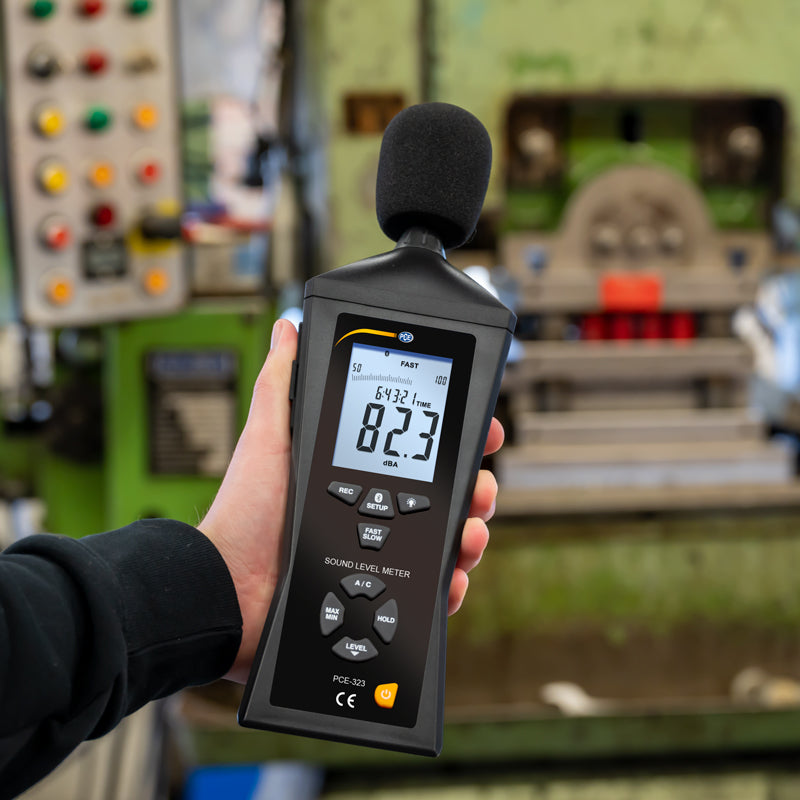

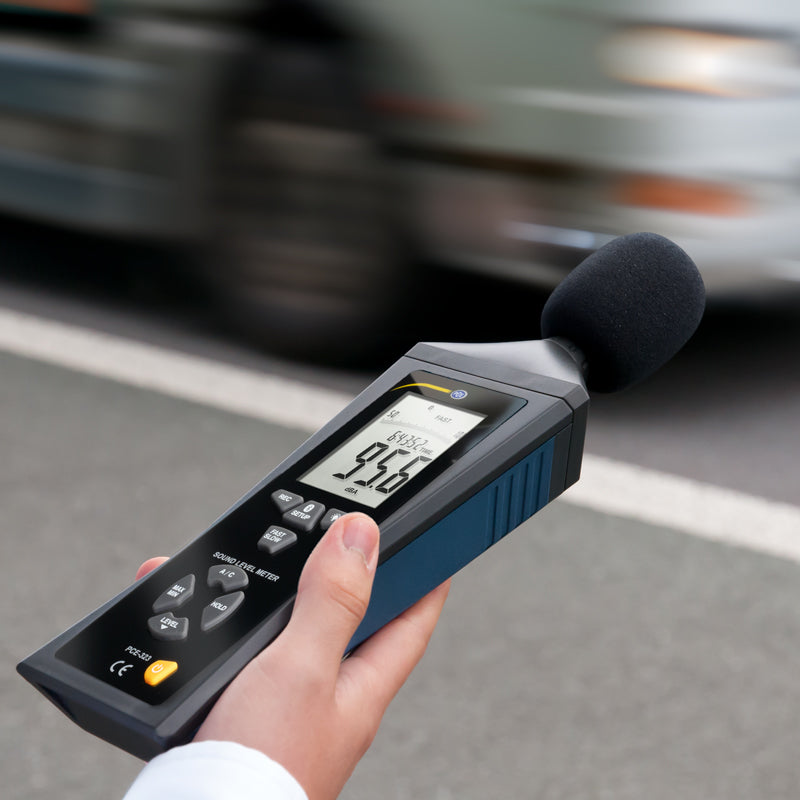

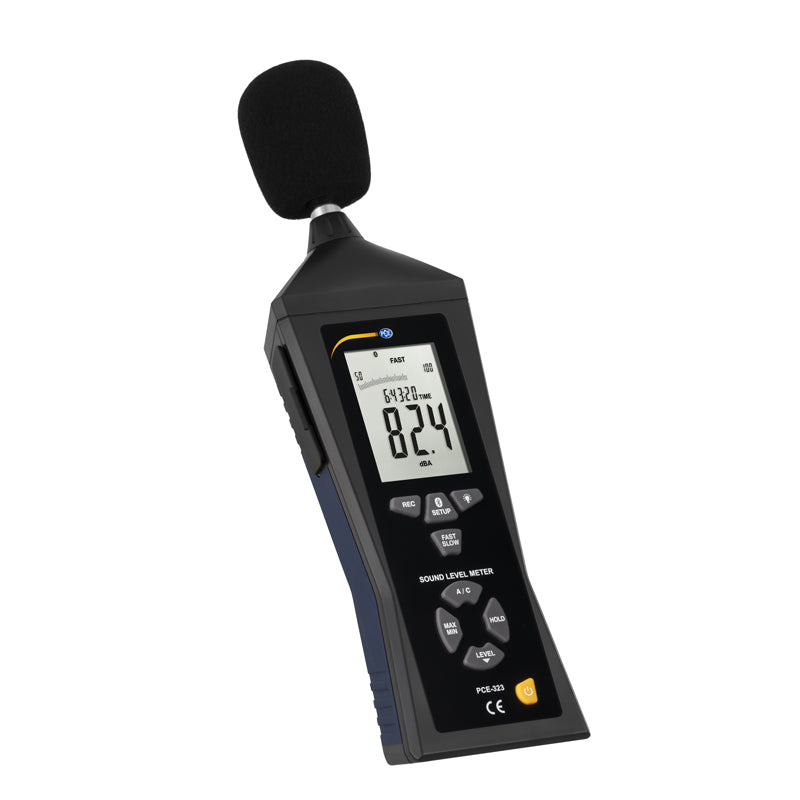

The PCE-323 decibel meter measures sound levels from 30 ... 130 dB with accuracy class 2 to IEC 61672-1. Frequency weighting A or C is selected at the push of a button. Typical uses are noise checks on stamping presses, ventilation systems or busy roads.

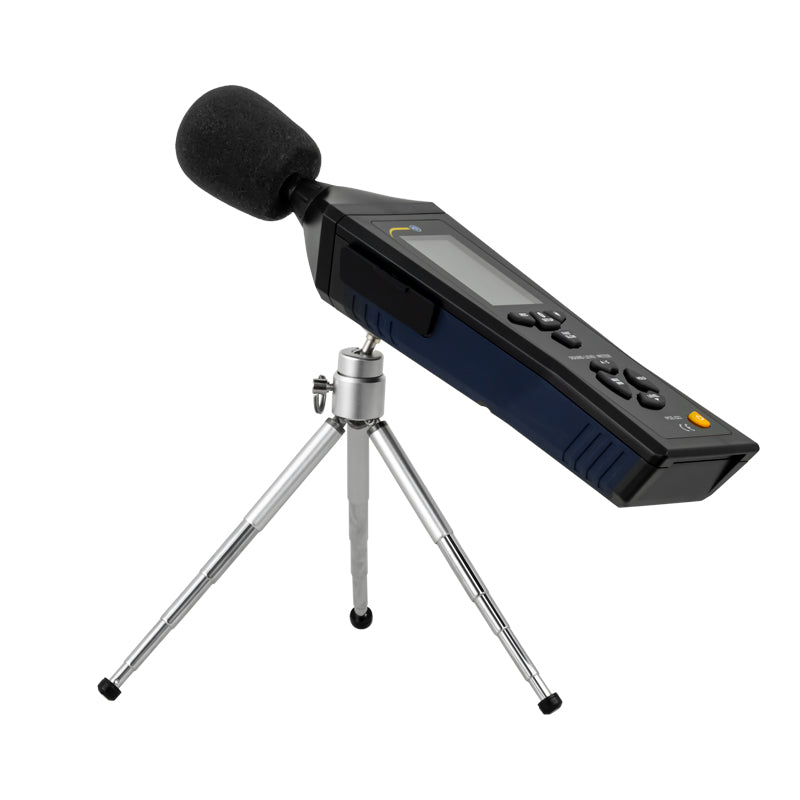

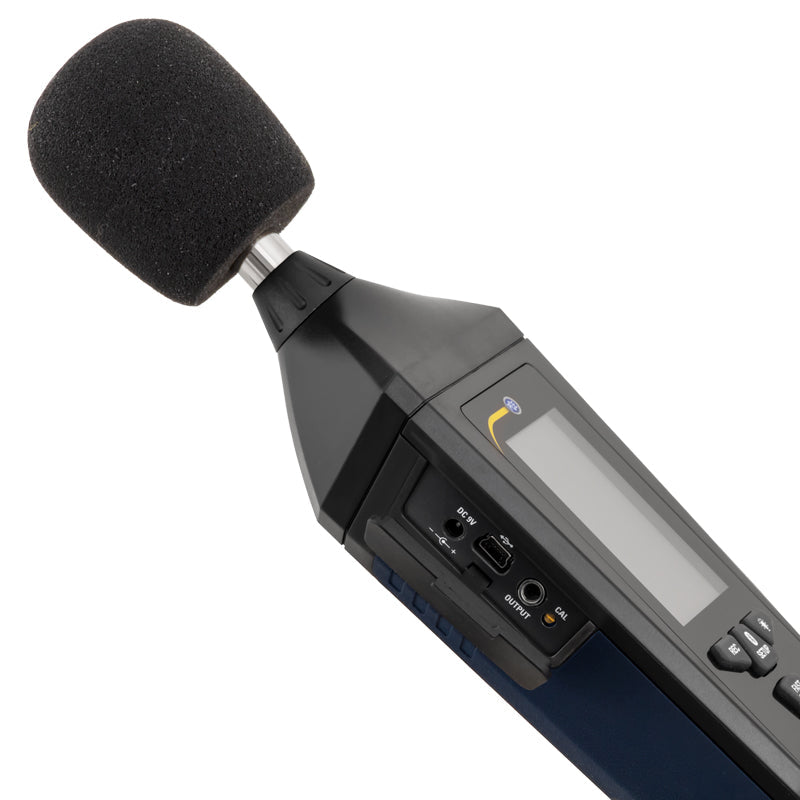

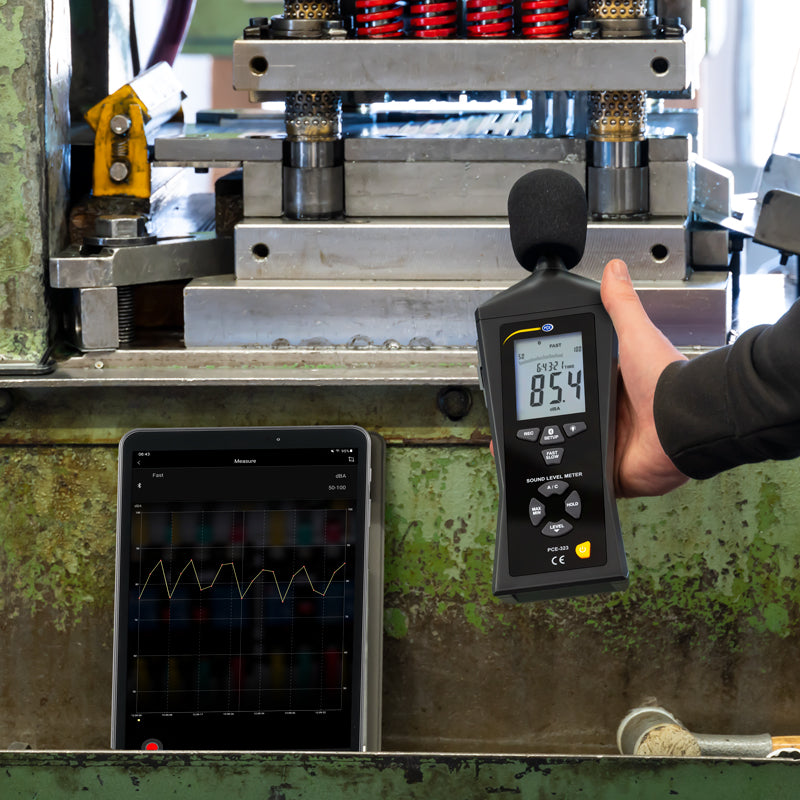

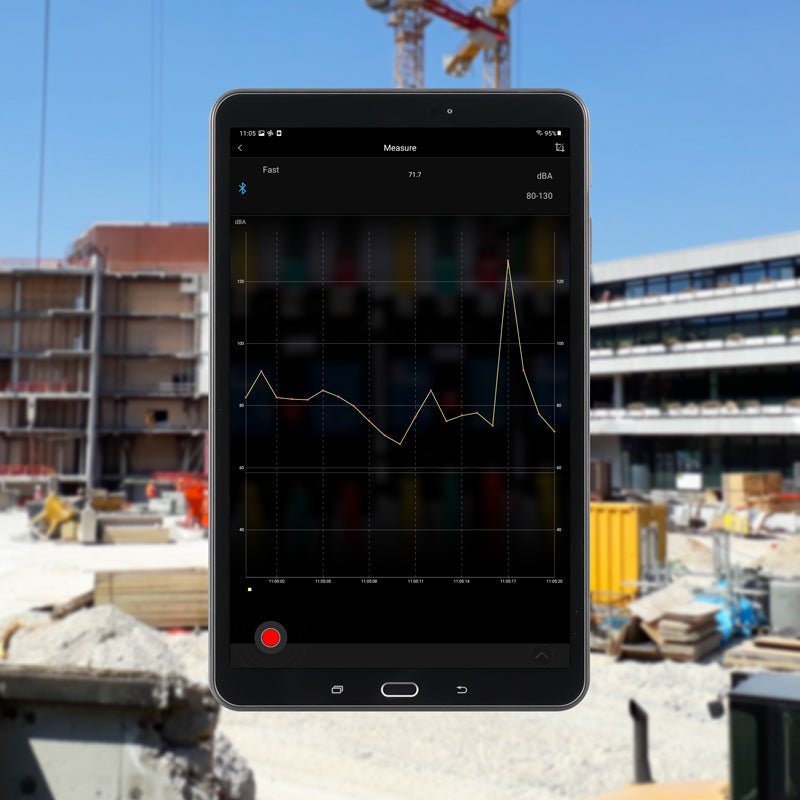

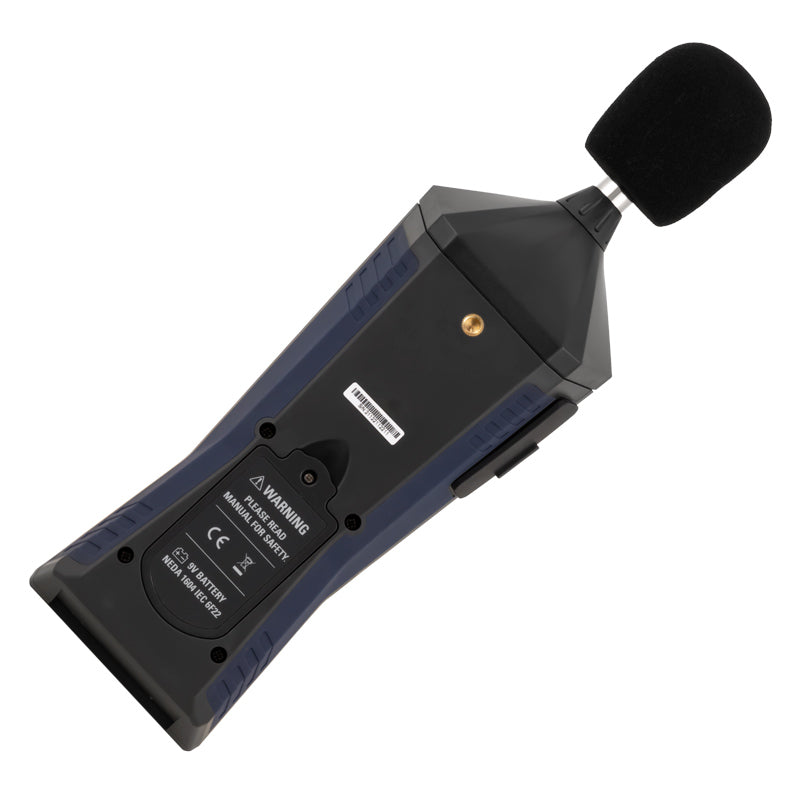

The data logger records up to 32700 readings. Bluetooth transmits live readings to an Android or iOS device through the free app, and the mini USB port with the supplied software does the same on a PC. Readings can be exported as CSV files. A tripod thread allows optimal microphone positioning. The meter runs on a 9 V block battery or on the mains adapter. An ISO calibration certificate is available as an option.
Highlights
- Accuracy class 2 (IEC 61672-1)
- Measuring range 30 ... 130 dB
- Switchable noise level ranges
- Frequency weighting A and C
- Bluetooth interface with free app
- Mini USB, PC software, CSV export
- Data logger for 32700 readings
- 9 V battery or mains adapter
| Sound level | |
|---|---|
| Measuring range | 30 ... 80 dB |
| Resolution | 0,1 dB |
| Accuracy | ±1.4 dB (under reference conditions @ 94 dB, 1 kHz) |
| Measuring range | 50 ... 100 dB |
| Resolution | 0,1 dB |
| Accuracy | ±1.4 dB (under reference conditions @ 94 dB, 1 kHz) |
| Measuring range | 80 ... 130 dB |
| Resolution | 0,1 dB |
| Accuracy | ±1.4 dB (under reference conditions @ 94 dB, 1 kHz) |
| General technical data | |
| Analogue output | AC/DC, Headphones |
| Measuring functions | MIN, MAX, HOLD |
| Connections | 1/2 inch microphone |
| Time weighting | fast (125 ms), slow (1 s) |
| Frequency weighting | A, C |
| Frequency | 31.5 ... 8000 Hz |

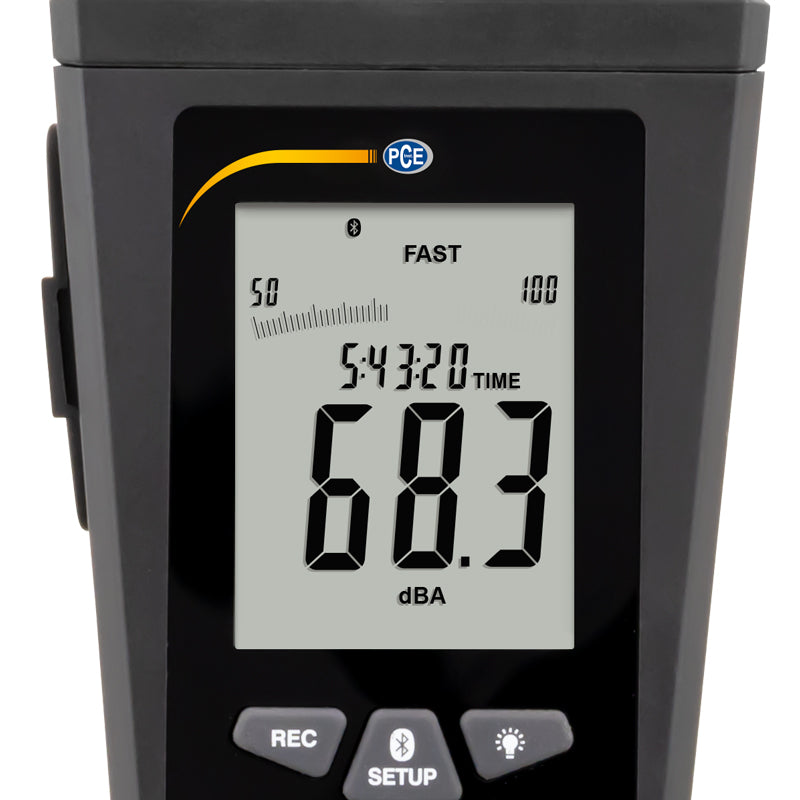

| Display type | LCD with backlight |
| Display refresh rate | 2 x per second |
| Storage capacity | 32700 Values |
| Storage interval from | 1 s |
| Storage interval to | 59 s |
| Microphone type | Electret capacitor |
| Interface | Mini-USB, Bluetooth |
| Standard(s) | IEC 61672-1 (Class II) |
| Operating time | 30 h |
| Automatic power-off | 15 min |
| Operating height | 2000 m max. above sea level |
| Tripod thread | 3/8 inch |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | Primary: 100 ... 240 V AC | 50/60 Hz Secondary: 9 V DC / 0.5 A |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 9 V 9V block , Zinc carbon |
| Capacity | 400 mAh |
| Operating conditions | 0 ... 40 °C , 10 ... 90 % RH |
| Storage conditions | -10 ... 60 °C , 10 ... 75 % RH |
| Dimensions ( L x W x H ) | 282 x 94 x 50 mm |
| Weight | 335 g |

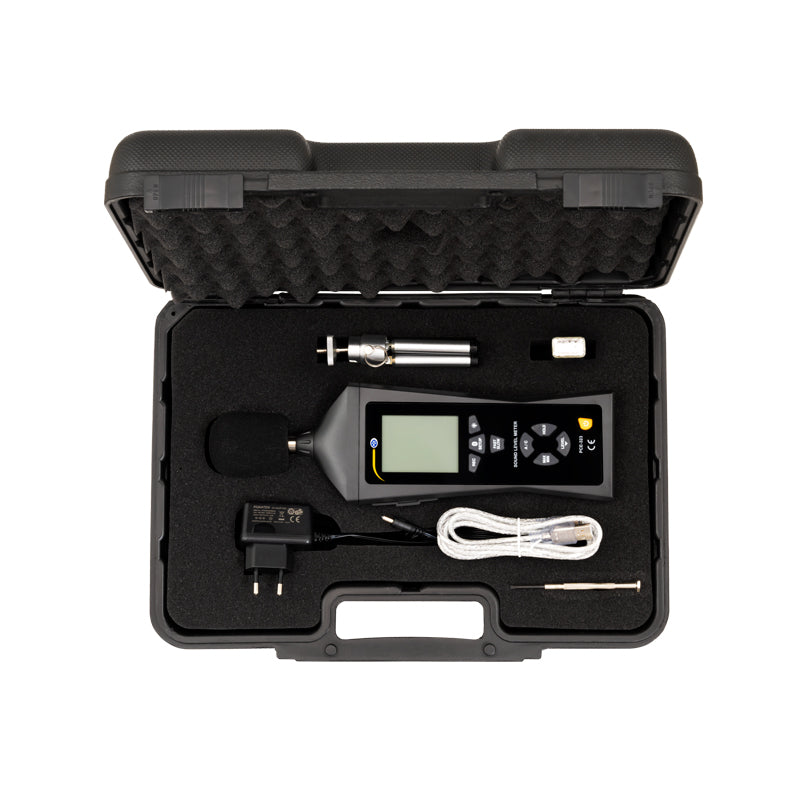

- 1×Bluetooth noise meter PCE-323
- 1×Mini Tripod
- 1×Screwdriver
- 1×Software CD
- 1×carrying case
- 1×9V block battery
- 1×Instruction Manual
- N.B. the free Apps are available at:
- https://play.google.com/store/apps/details?id=com.cem.supermeterbox
- https://apps.apple.com/de/app/meterbox-pro/id1231364276
