Sound Level Meters

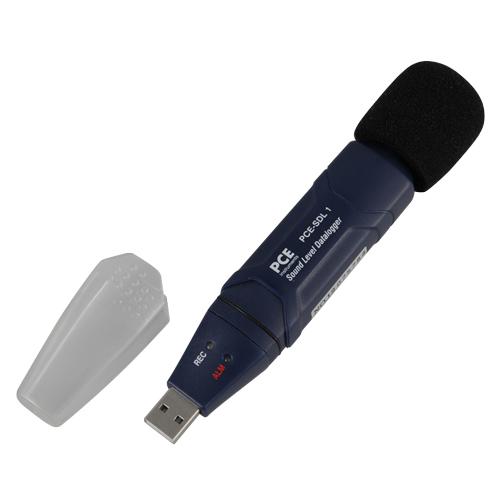

PCE Instruments PCE-SDL 1 USB-style sound level data logger, blue body with black foam microphone and cap
PCE Instruments PCE-SDL 1 sound level meter with black foam microphone, USB connection and metal mounting bracket
PCE Instruments PCE-SDL 1 sound level meter in use in a warehouse, with microphone on a support arm near shelving
PCE Instruments PCE-SDL 1 USB-style sound level data logger, blue body with black foam microphone and cap
PCE Instruments PCE-SDL 1 sound level meter with black foam microphone, USB connection and metal mounting bracket
PCE Instruments PCE-SDL 1 sound level meter in use in a warehouse, with microphone on a support arm near shelving

Availability & price

Code Availability excl. VATincl. VAT Certificate Cart
PCE-SDL 1
€268,00
€332,32
0

Description

  • Class 2 sound level data logger
  • 30 ... 130 dB measuring range
  • Stores up to 129,920 data sets
  • USB interface and Windows software
  • Alarm limits with LED indicators

The PCE-SDL 1 is a Class 2 (Type 2) sound level data logger for long-term acoustic measurements. It records sound pressure level (SPL) in dB with date and time stamps, and starts manually or automatically.

The Windows software shows the logged data as a progressive graph. It also sets alarm limits, which the logger signals with flashing LEDs. Data transfers to a PC via USB.

Highlights

  • Measuring range 30 ... 130 dB
  • Frequency range 31.5 Hz ... 8 kHz
  • Up to 129,920 data sets (36 hours at 1-sec interval)
  • USB interface and Windows software for PC transfer
  • NORM and PEAK modes, A and C weighting
  • Adjustable alarm limits with LED indicators
  • Adjustable interval, date- and time-stamped data
  • Manual and auto-start, IEC 61672-1 (Class 2)

Specifications

Sound level
Measuring range30 ... 130 dB
Resolution0,1 dB
Accuracy1.4 dB at 1 kHz
General technical data
Time weightingslow (1 s), fast (125 ms)
Frequency weightingC, A
Frequency31.5 ... 8000 Hz
Storage capacity129920 Data records
Storage interval from1 s
Storage interval to24 h
Microphone typeElectret capacitor
InterfaceUSB
Standard(s)IEC 61672-1 (Class II)
Tripod thread1/4 inch
DimensionsMicrophone diameter 1/2 inch
Menu languageEnglish, English (GB)
Protection class (device)IP20
Power supplyBattery
Battery1 x 3,6 V 1/2 AA 3.6 V LI-SOCl₂ (LS 14250) , lithium
Capacity1200 mAh
Operating conditions0 ... 40 °C , 10 ... 75 % RH
Storage conditions-10 ... 60 °C , 10 ... 75 % RH
Dimensions ( L x W x H )130 x 25 x 30 mm
Weight20 g

Package Contents

  • 1×USB Sound Level Data Logger PCE-SDL 1
  • 1×wind noise suppressor
  • 1×wall bracket
  • 1×Windows®-executable software (English)
  • 1×battery 14250 Li
  • 1×manual

Technical Documents 2

Datasheet Technical datasheet Manual User manual
