Sound Level Meters
PCE Instruments PCE-SLD 10 data logging sound level meter with large LCD and external clip-on microphone

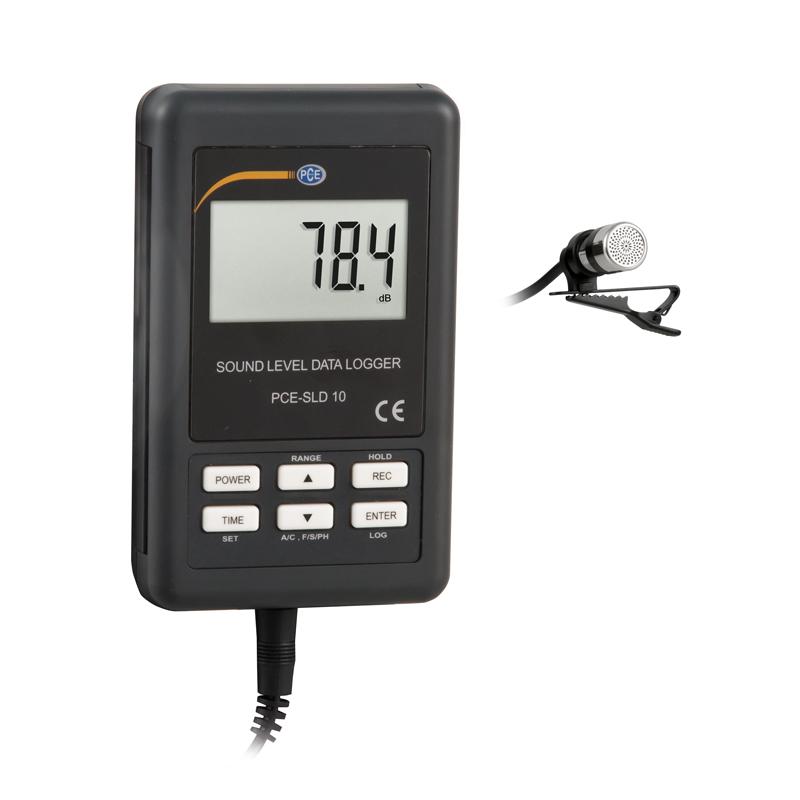

PCE Instruments PCE-SLD 10 data logger sound level meter with large LCD showing 78.4 dB, black body

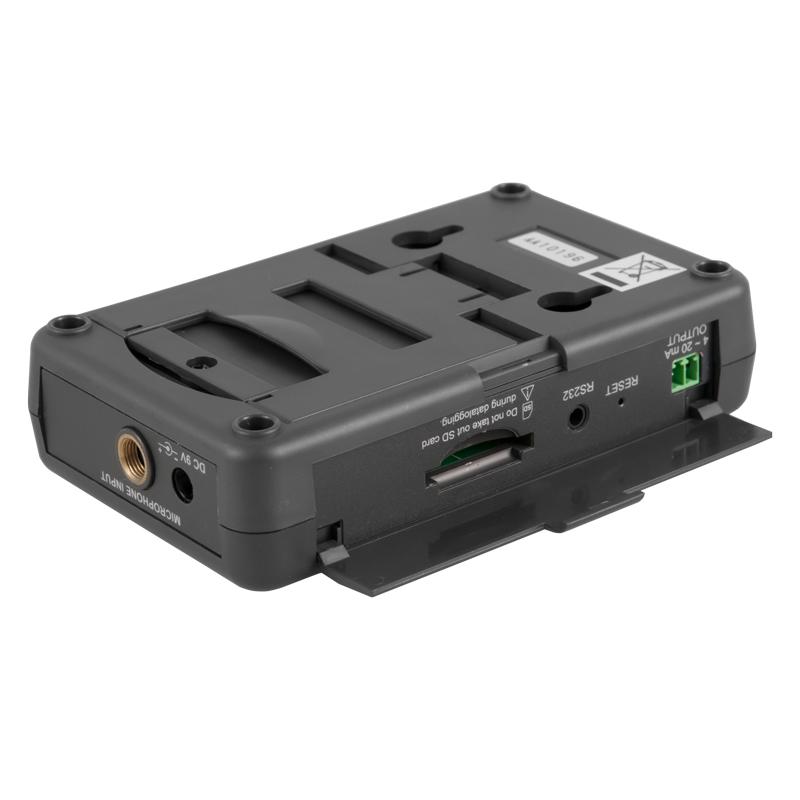

Bottom view of PCE Instruments PCE-SLD 10 sound level meter with microphone socket, DC 9V and RS232 ports

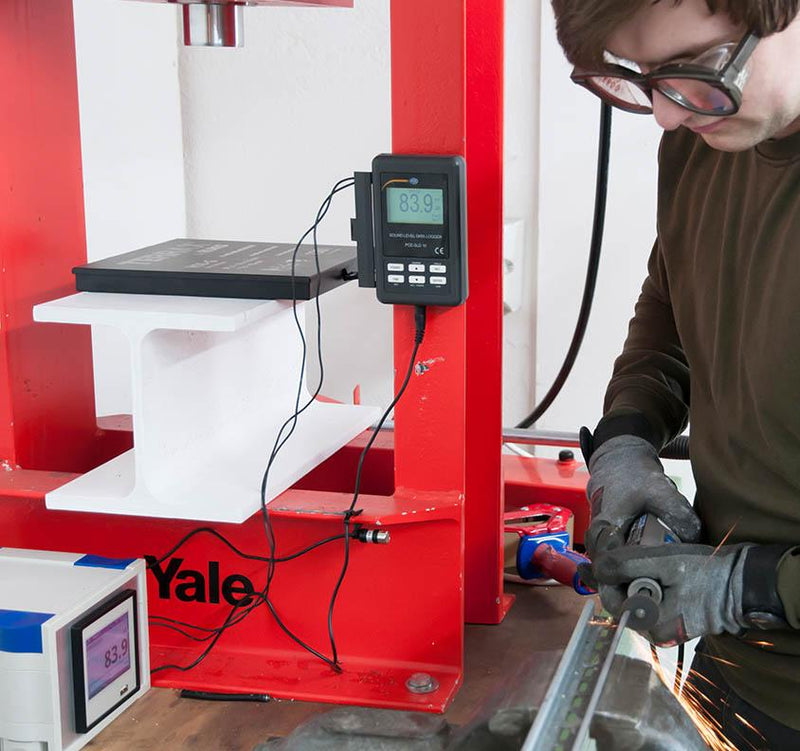

PCE Instruments PCE-SLD 10 sound level meter showing 83.9 dB during a noise test of metal grinding on a workbench

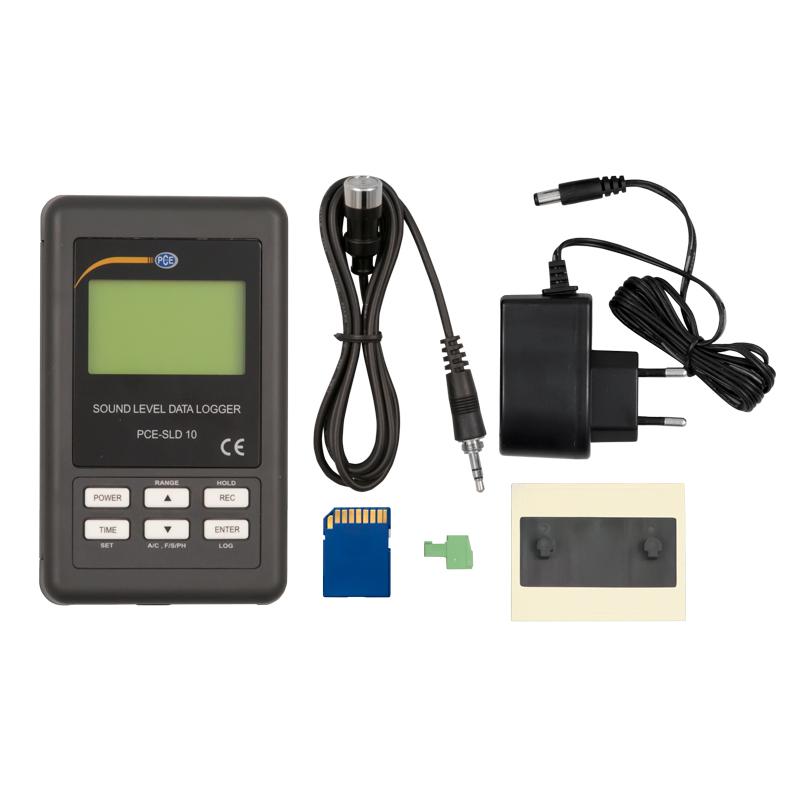

PCE Instruments PCE-SLD 10 sound level meter with display, sensor cable, power adapter and SD memory card
PCE Instruments PCE-SLD 10 data logging sound level meter with large LCD and external clip-on microphone
PCE Instruments PCE-SLD 10 data logger sound level meter with large LCD showing 78.4 dB, black body
Bottom view of PCE Instruments PCE-SLD 10 sound level meter with microphone socket, DC 9V and RS232 ports
PCE Instruments PCE-SLD 10 sound level meter showing 83.9 dB during a noise test of metal grinding on a workbench
PCE Instruments PCE-SLD 10 sound level meter with display, sensor cable, power adapter and SD memory card

Availability & price

Code Availability excl. VATincl. VAT Certificate Cart
PCE-SLD 10
€432,00
€535,68
0

= Express from Europe: at our premises in 1-2 working days, from €35 + VAT Express from Europe, from €35 + VAT

Express from Europe

At our premises in 1-2 working days if you place the order by 13:00
Cost depending on weight from €35 + VAT

If it takes more than 2 working days, we refund the cost.

Contact us

info@organametrisis.gr 210 2231624

Mon–Fri 08:30–18:00
  • 4 ... 20-mA analogue output
  • SD card memory
  • Excel logging
  • A and C frequency weighting
  • Large LC display

The PCE-SLD 10 is a sound level data logger for permanent noise monitoring. It measures 30 ... 130 dB with A or C frequency weighting and fast or slow time weighting. It shows readings on a large LC display, outputs them as a 4 ... 20-mA analogue signal and stores them as Excel files on an SD card. You can remove the card and evaluate the data without additional software.

It runs on 6 x 1.5V AAA batteries. A plug-in mains adapter is included for long-term operation. Typical uses include showing the noise level on a large display in a production hall, or triggering switchgear to close windows and doors when a limit is exceeded.

Highlights

  • Wide measuring range up to 130 dB
  • 4 ... 20-mA analogue output
  • SD card memory up to 16 GB
  • Data stored as Excel files
  • RS232 data interface
  • Backlit LC display
  • External microphone
  • Battery and mains operation
Sound level
Measuring range30 ... 80 dB
Resolution0,1 dB
Accuracy1 dB at 1 kHz
Measuring range50 ... 100 dB
Resolution0,1 dB
Accuracy1 dB at 1 kHz
Measuring range80 ... 130 dB
Resolution0,1 dB
Accuracy1 dB at 1 kHz
General technical data
Analogue output4 ... 20 mA
Measuring functionsHOLD, MAX, MIN, peak
Time weightingslow (1 s), fast (125 ms)
Frequency weightingC, A
Frequency31.5 ... 8000 Hz
Display typeLCD with backlight
Display refresh rate1 x per second
Storage mediumSD card
Storage capacity16 GB
Storage interval from5 s
Storage interval to1 h
Microphone typeElectret capacitor
InterfaceRS232
Operating time30 h
Operating time additional information30 h at 5 s log interval
Automatic power-off10 min
DimensionsMicrophone diameter: 1/2 inch
Microphone cable length: 120 cm
Menu languageEnglish, English (GB)
Protection class (device)IP20
Power supply9 V / 1 A
Connector typeDevice-europlug
Battery6 x 1,5 V AAA battery , Alkali-manganese
Capacity1200 mAh
Operating conditions0 ... 50 °C , 0 ... 85 % RH
Storage conditions0 ... 50 °C , 0 ... 85 % RH
Dimensions ( L x W x H )132 x 90 x 32 mm
Weight230 g
  • 1×Sound Level Meter / Noise Level Meter / Noise Level Meter PCE-SLD 10
  • 1×Microphone
  • 1×Wall holder
  • 1×Memory card
  • 1×4 ... 20 screw connectors
  • 1×Power adapter 9V / 1 A
  • 1×User manual
Datasheet Technical datasheet Manual User manual
