CODEPCE-SLT-TRM
CODEPCE-SLT-TRM
Permanent installation sound level meter with alarm 220V
- Class II per IEC 61 672
- Range 30 ... 130 dB
- 4 ... 20 mA output
- Alarm output
- Permanent wall mounting
Availability & price
| Code | Availability | excl. VAT | incl. VAT | Certificate | Cart |
|---|---|---|---|---|---|
| PCE-SLT-TRM |
€419,00
|
€519,56
|
= Express from Europe: at our premises in 1-2 working days, from €35 + VAT Express from Europe, from €35 + VAT
- Class II per IEC 61 672
- Range 30 ... 130 dB
- 4 ... 20 mA output
- Alarm output
- Permanent wall mounting
The PCE-SLT-TRM is a class II (type 2) sound level meter for sound pressure level (SPL) in dB, with an alarm output for an audible or visual signal. It is used for long-term, continuous monitoring of occupational noise exposure limits in industrial environments such as foundries, factories and production floors.

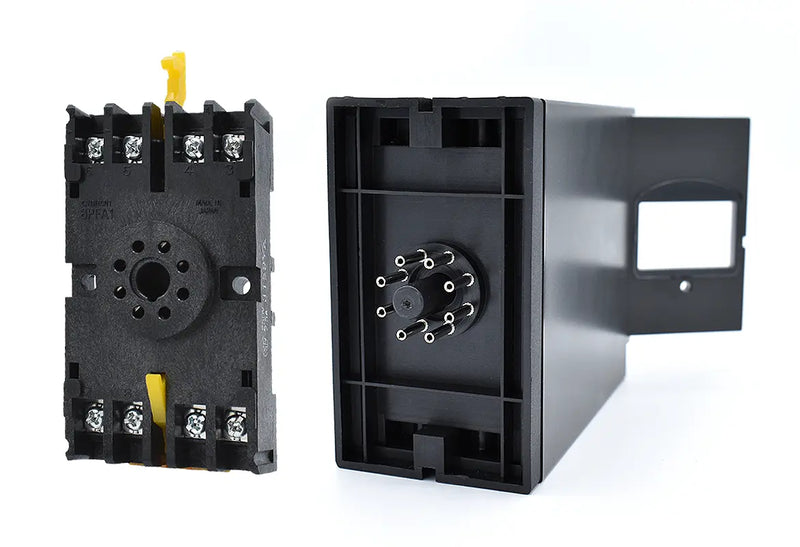

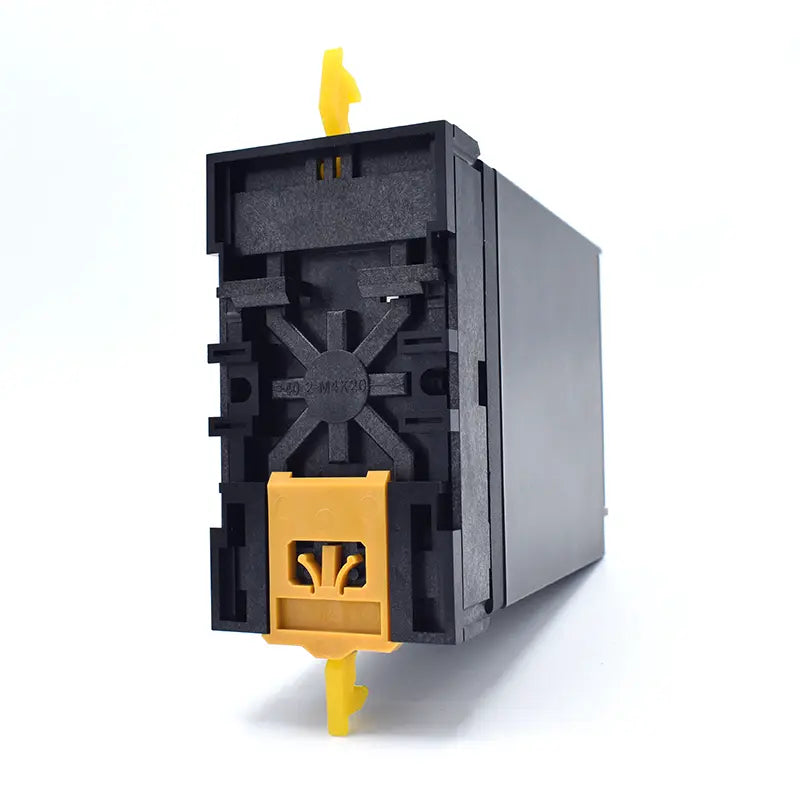

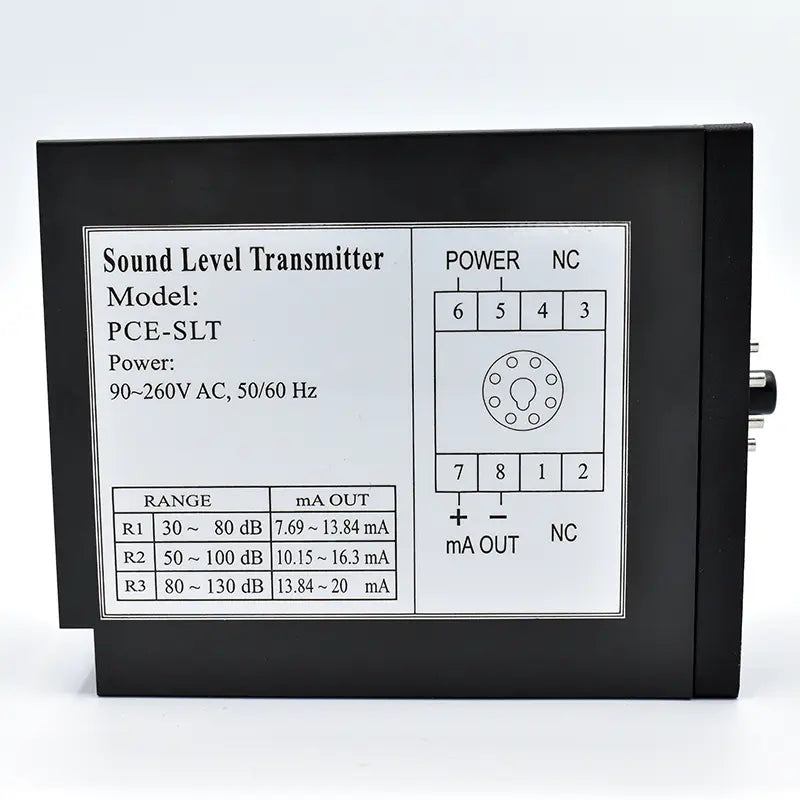

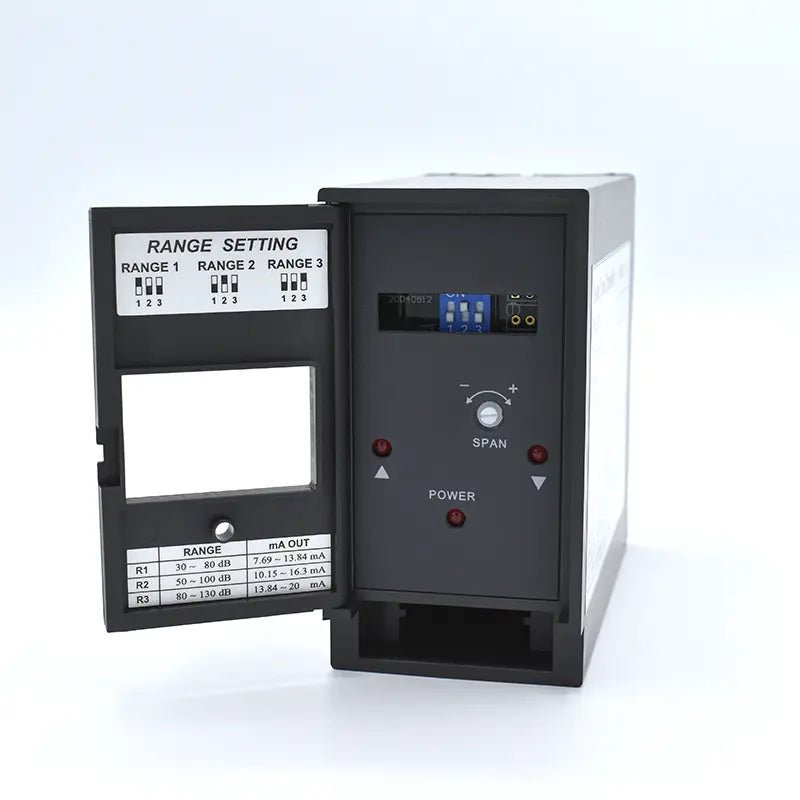

The meter has two parts: a wall-mountable acoustic sensor on a 1.5 m / 4.92' cable and a transmitter. The measuring range is 30 ... 130 dB in 3 ranges, with 0.1 dB resolution and ±1.5 dB accuracy. The transmitter runs on 90 ... 260 AC V and gives a 4 ... 20 mA output.
Highlights
- Class II (type 2) to IEC 61 672
- Measuring range 30 ... 130 dB in 3 ranges
- Resolution 0.1 dB, accuracy ±1.5 dB
- Audible or visual alarm output
- 4 ... 20 mA analogue output
- IP 54 transmitter: dust and splashed water
- Sensor on 1.5 m / 4.92' cable, wall mounted
- 1/2" precision electret microphone, A weighting
| Sensor | |
|---|---|
| Measuring range | 30 ... 130 dB in 3 ranges: I. 30 ... 80 dB(A) II. 50 ... 100 dB(A) III. 80 ... 130 dB(A) |
| Resolution | 0.1 dB |
| Accuracy | ±1.5 dB |
| Frequency weighting | A |
| Power supply | Via transmitter |
| Cable length (sensor to transmitter) | 1.5 m / 4.92' |
| Operating conditions | 0 ... +50 °C / +32 ... +122 °F, max. 85 % RH |
| Microphone | 1/2" precision electret |
| Standard | IEC 61 672 (Class II) |
| Transmitter | |
| Housing | ABS plastic |
| Power supply | 90 ... 260 AC V / 50 or 60 HZ |
| Calibration | Adjustable by set screw |
| Output | 4 ... 20 mA |
| Protection class | IP 54 ingress protection rating |
| Operating conditions | 0 ... +50 °C / +32 ... +122 °F, max. 85 % RH |
- 1×PCE-SLT-TRM sound level meter (consisting of 1 x acoustic sensor on a 1.5 m / 4.92' long cable and a transmitter)
- 1×Wall-mounting bracket for sensor
- 1×User manual
