CODEISQ-TS120K
CODEISQ-TS120K
Stroboscope
-
Flash frequency range: 60-120,000 FPM (flash per minute) 1-2000Hz
-
Resolution:
-
FPM: 0.1 FPM (<100000 FPM), 1 FPM (≥100000 FPM)
-
HZ: 0.01 Hz (<200 Hz), 0.1 Hz (≥200 Hz)
-
-
Adjustment accuracy: ±0.01%
-
Phase shift step: 3°
-
Flash pulse duration: 0.1°~2.5°
Availability & price
| Code | Availability | excl. VAT | incl. VAT | Certificate | Cart |
|---|---|---|---|---|---|
| ISQ-TS120K |
€1.542,00
|
€1.912,08
|
= Express from Europe: at our premises in 1-2 working days, from €35 + VAT Express from Europe, from €35 + VAT

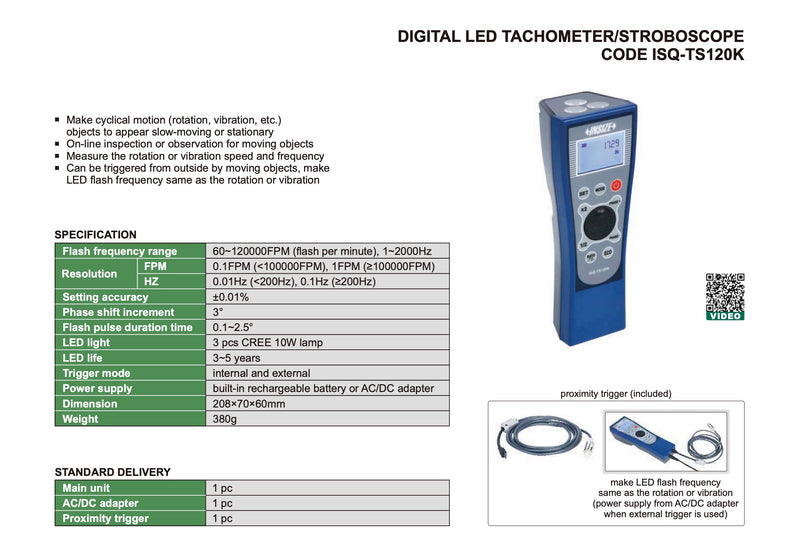

Description
Technical Specifications
-
Flash frequency range: 60-120,000 FPM (flash per minute) 1-2000Hz
-
Resolution:
-
FPM: 0.1 FPM (<100000 FPM), 1 FPM (≥100000 FPM)
-
HZ: 0.01 Hz (<200 Hz), 0.1 Hz (≥200 Hz)
-
-
Adjustment accuracy: ±0.01%
-
Phase shift step: 3°
-
Flash pulse duration: 0.1°~2.5°
-
LED lighting: 3 CREE 10W lamps
-
LED lifespan: 3~5 years
-
Activation mode: internal and external
-
Power supply: built-in rechargeable battery or AC/DC adapter
-
Dimensions: 208×70×60 mm
-
Weight: 380 g
Description

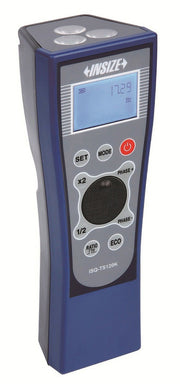

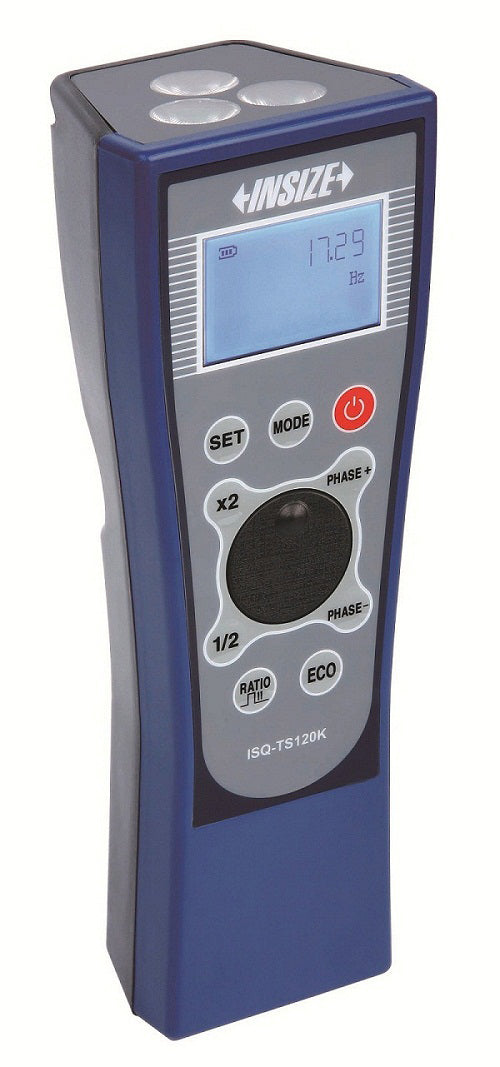

Digital LED tachometer/stroboscope for monitoring and measuring the rotational or oscillation speed of objects. Suitable for on-site inspections of moving parts and for synchronizing the LED flash frequency with motion or vibration.
