Specifications
- Instrument type: Thickness gauge with analog dial indicator
- Measuring range: 0–30 mm
- Graduation: 0.01 mm
- Accuracy: ±0.035 mm
- Measuring anvils: Ceramic, Ø10 mm

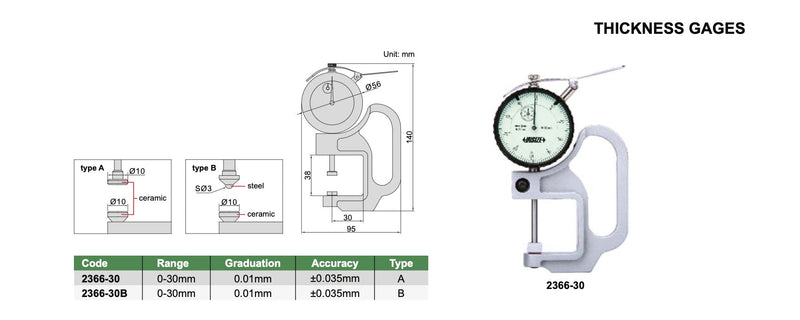

- Dimensions (per drawing): height 140 mm, width 95 mm, depth 30 mm, throat/opening 38 mm, dial diameter Ø56 mm
- Unit: mm
Description

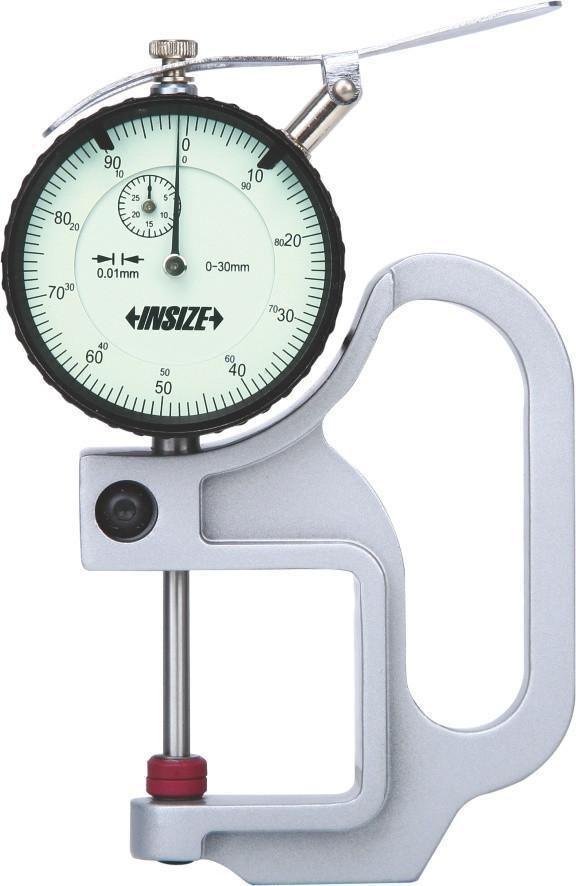

Analog thickness gauge designed for thickness checks on soft materials such as paper and leather. The Ø10 mm ceramic anvils provide stable contact during measurement and help reduce wear on the contact surfaces. Suitable for quick thickness measurements in workshops, production, and quality control.
| Code | Travel | Reading | Availability | Price excl. VAT | Certificate | Cart |
|---|---|---|---|---|---|---|
| 2366-30 | 0-30 | 0.01 |
€140,00
|
