Torque Calibrators
Insize IST-TT5 torque tester with digital display and torque sensor on base, with connection cable

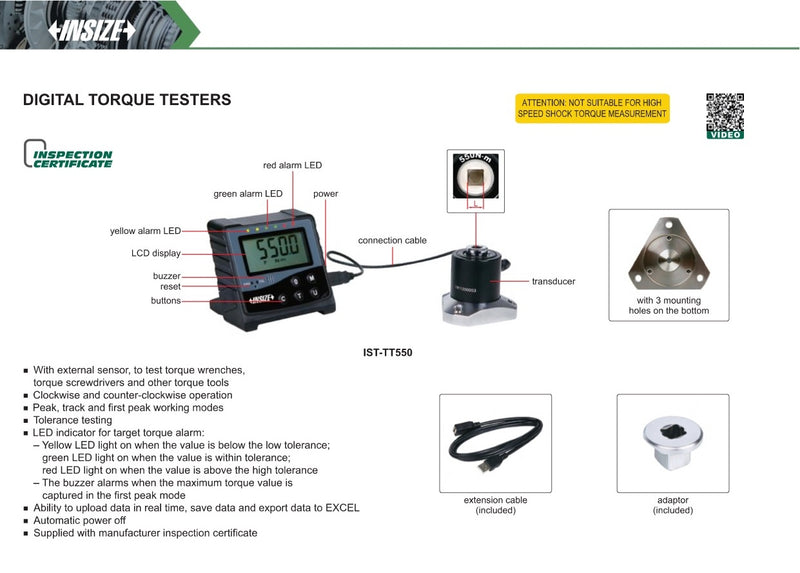

Technical specifications IST-TT5 - Bidirectional Torque Calibrator (p. 1)

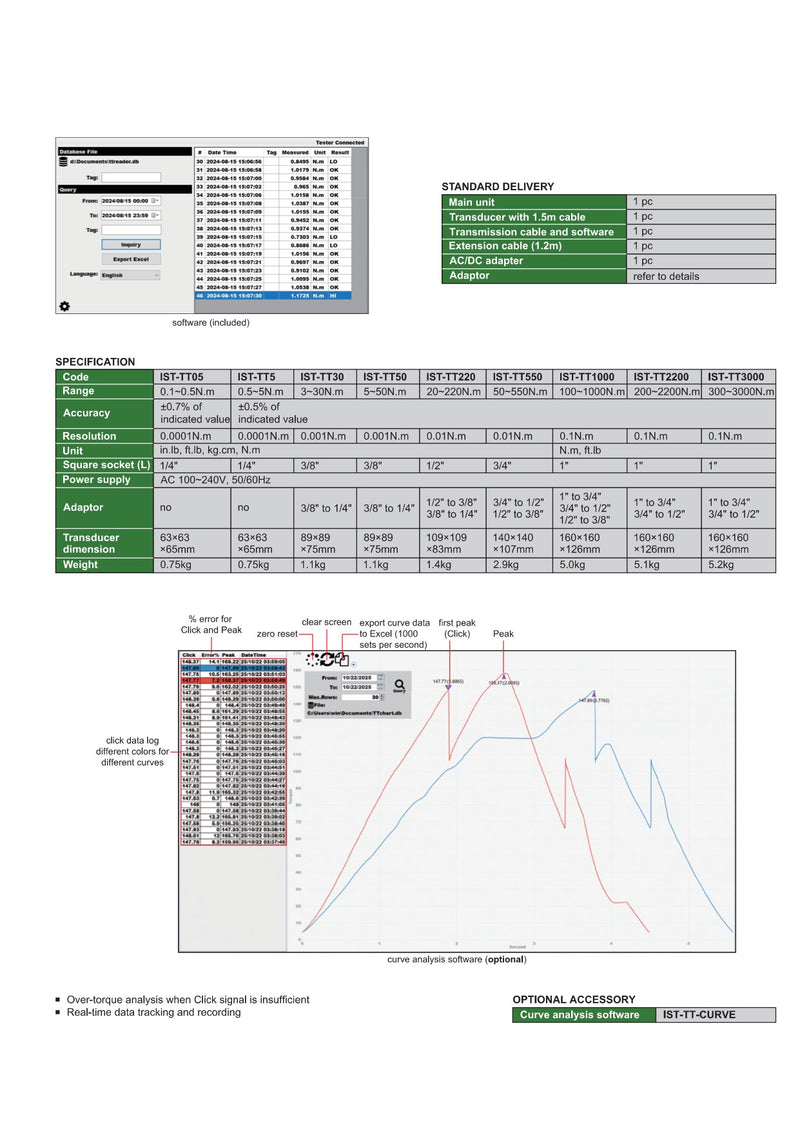

Technical specifications IST-TT5 - Bidirectional Torque Calibrator (p. 2)
Insize IST-TT5 torque tester with digital display and torque sensor on base, with connection cable
Technical specifications IST-TT5 - Bidirectional Torque Calibrator (p. 1)
Technical specifications IST-TT5 - Bidirectional Torque Calibrator (p. 2)

Availability & price

9 codes

Code Range (Nm) Graduation (Nm) Availability excl. VATincl. VAT Certificate Cart
IST-TT05 0.1~0.5 0.0001
€2.247,00
€2.786,28
0
IST-TT5 0.5~5 0.0001
€1.694,00
€2.100,56
0
IST-TT30 3~30 0.001
€1.652,00
€2.048,48
0
IST-TT50 5~50 0.001
€1.447,00
€1.794,28
0
IST-TT220 20~220 0.01
€1.526,00
€1.892,24
0
IST-TT550 50~550 0.01
€1.662,00
€2.060,88
0
IST-TT1000 100~1000 0.1
€2.015,00
€2.498,60
0
IST-TT2200 200~2200 0.1
€1.839,00
€2.280,36
0
IST-TT3000 300~3000 0.1
€3.152,00
€3.908,48
—
0

= Express from Europe: at our premises in 1-2 working days, from €35 + VAT Express from Europe, from €35 + VAT

Express from Europe

At our premises in 1-2 working days if you place the order by 13:00
Cost depending on weight from €35 + VAT

If it takes more than 2 working days, we refund the cost.

Contact us

info@organametrisis.gr 210 2231624

Mon–Fri 08:30–18:00

Description

  • Accuracy: ±0.7% of indicated value (IST-TT05), ±0.5% of indicated value (IST-TT5 to IST-TT3000)
  • With external sensor for testing torque wrenches, torque screwdrivers and other torque tools
  • Counterclockwise and clockwise operation
  • Measurement functions: peak, track and first peak (click)
  • Tolerance check with indicator LEDs and buzzer:
    • Yellow LED: the value is below the lower tolerance
    • Green LED: the value is within tolerance
    • Red LED: the value is above the upper tolerance
    • The buzzer sounds when the maximum torque value is recorded in first peak mode
  • Measurement units: N.m, in.lb, ft.lb, kg.cm (IST-TT05~IST-TT550) / N.m, ft.lb (IST-TT1000~IST-TT3000)
  • Real-time data recording, storage and export to EXCEL
  • Square drive: 1/4" (TT05, TT5), 3/8" (TT30, TT50), 1/2" (TT220), 3/4" (TT550), 1" (TT1000~TT3000)
  • Automatic shutdown
  • Power supply: AC 100~240V, 50/60Hz
  • Supplied with manufacturer's inspection certificate
  • Package contents: main unit, sensor with 1.5m cable, communication cable with software, 1.2m extension cable, AC/DC power supply and adapter (depending on model)
  • Optional: IST-TT-CURVE torque curve analysis software
  • Not suitable for measuring high-speed impact torque

Technical Documents 4

Datasheet Technical datasheet Manual User manual CE Certificate Quality document Catalog Full manufacturer catalog
Insize

Official distributor

Insize

INSIZE was founded in 1995 and is one of the world's leading manufacturers of measuring instruments and metrological equipment. With factories in China and other Asian countries, as well as production units in Germany and Italy for the INSIZE PLUS series, the company offers products that stand out for their accuracy, durability and reliability, while being distinguished by their excellent quality-price ratio.
