| Measurement range | 2 Nm / 1.5 ft-lbs |
|
Reading |
0.001 Nm / 0.00074 ft-lb |
|
Accuracy |
0.3% of the measuring range |
|
Measurement unit |
Nm, kgFcm, lbFin |
| Rotation direction | Left and right rotation direction |
| Clamping pins / sample handles | Rubber |
| Data memory | up to 100 measured values |
| Exit | USB |
| Display | LCD |
| Power supply | 230V / 110V |
| Sample size | 20 ... 200 mm / 0.8 ... 7.9 in, in diameter |
|
Sample weight |
maximum 5 kg/ 11 lbs |
| Environmental conditions | 5 ... 45°C / 41 ... 113°F, 35 ... 65% rH |
|
Dimension |
280 x 210 x 200 mm / 11 x 8.3 x 7.9 in |
|
Weight |
Approximately 9 kg / 19 lbs |
Torque meter PCE-CTT 2
for bottles for sample sizes up to 200 mm (7.9 in) / Software for analysis and processing /
Left and right rotation / Rubber holding device / Statistical evaluation
for bottles for sample sizes up to 200 mm (7.9 in) / Software for analysis and processing /
Left and right rotation / Rubber holding device / Statistical evaluation

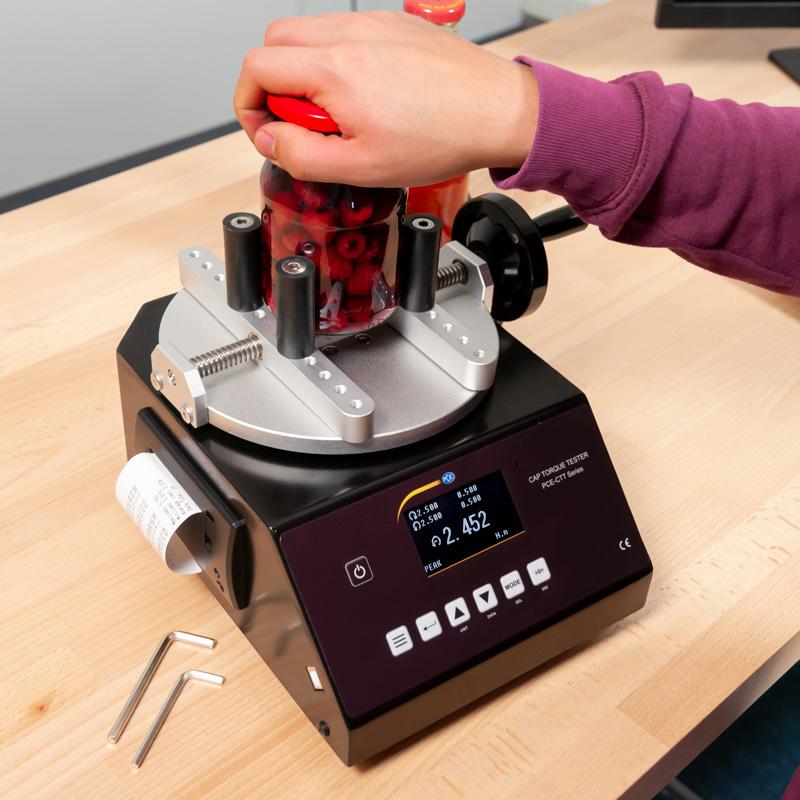

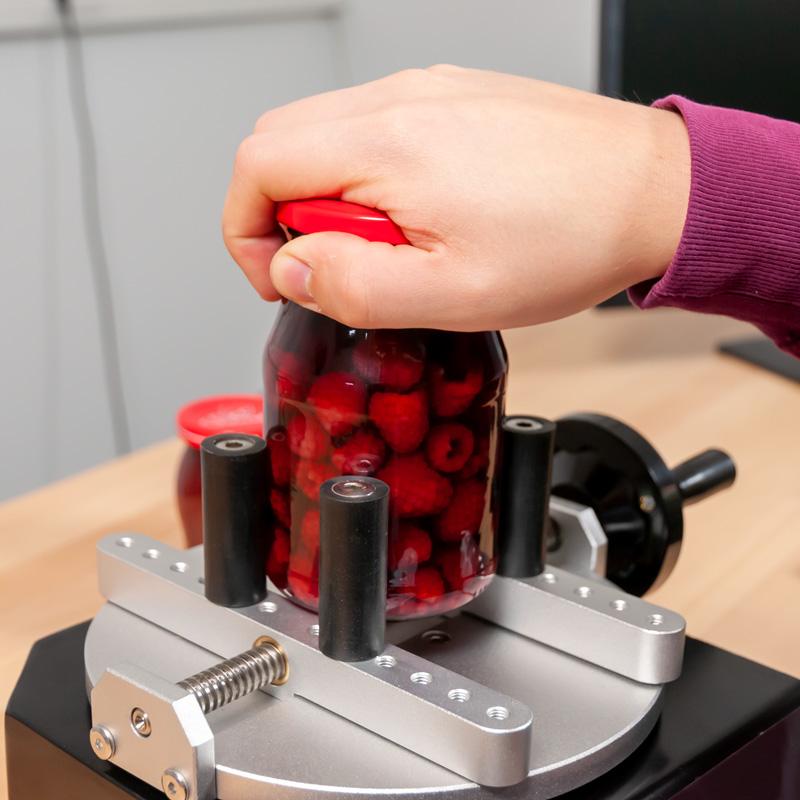

The torque meter for bottles was designed to determine the torque of screw caps on bottles and similar containers in a stationary manner. This measurement with the torque meter is particularly important and necessary in the food industry to evaluate the proper sealing of products and ensure their correct preservation.

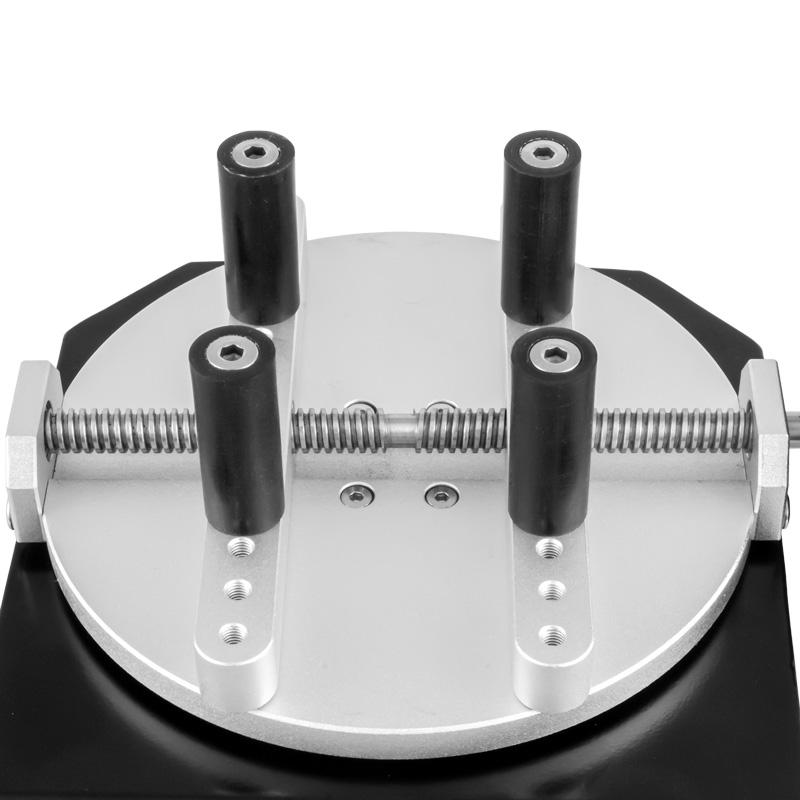

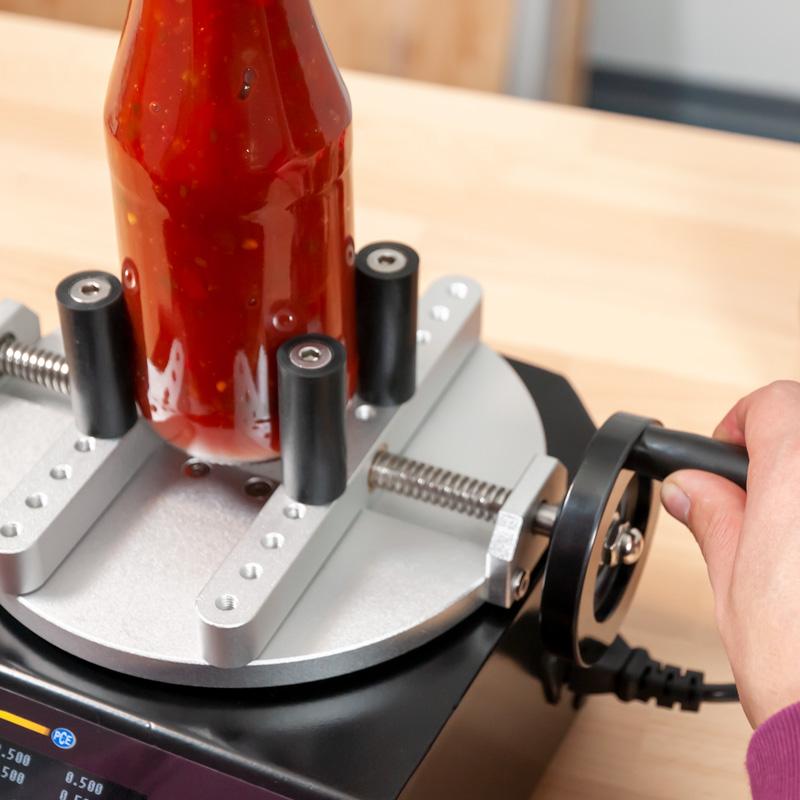

It does not matter if the torque meter is used in the laboratory or in production. The rotating plate of the torque meter can accommodate samples with a diameter range from 20 to 200 mm. Thanks to the crank it has, samples can be quickly and easily placed on the meter's plate.

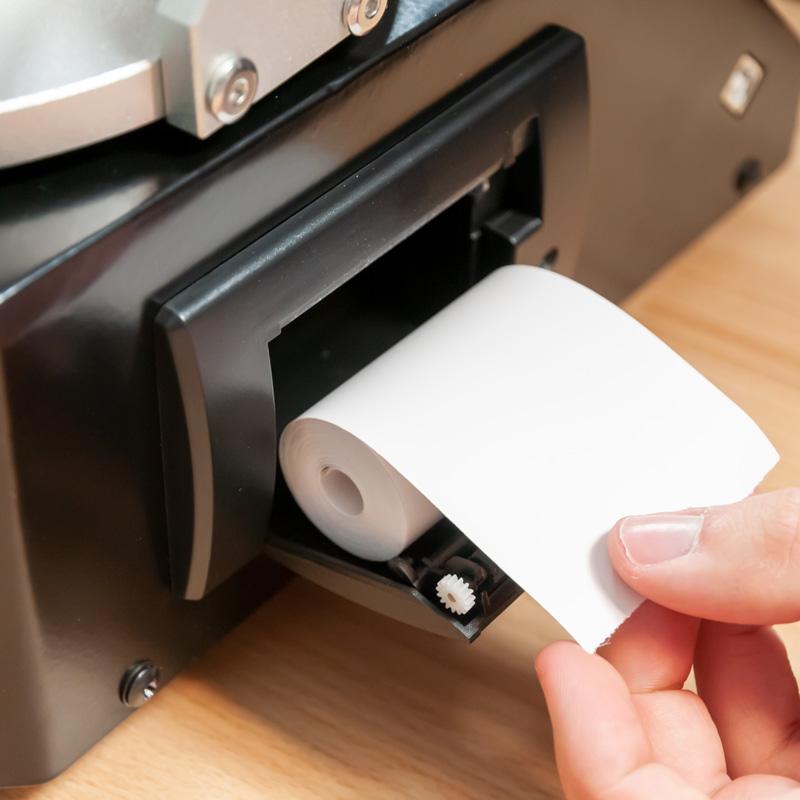

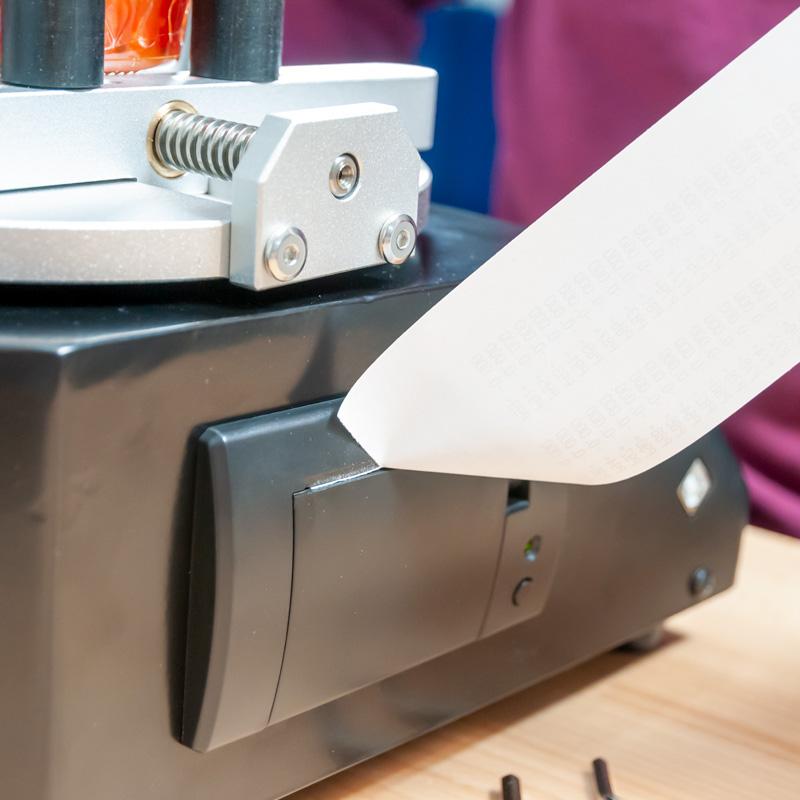

The gauge features a display showing the current measured values as well as the peak value (PEAK). Subsequently, thanks to the provided software, the measurement data can be transferred to a computer via USB port and the measurement progress can be graphically and tabularly displayed. The data is stored in the gauge's memory and can be recalled for further processing and analysis, as well as printed at the press of a button via a printer integrated into the device. To avoid printing all measurements at once, the gauge offers the option to limit the measurements.
- USB output for software connection
- Different units can be set
- Bottle tightening is done without tools
- Built-in printer
- Rubber bases

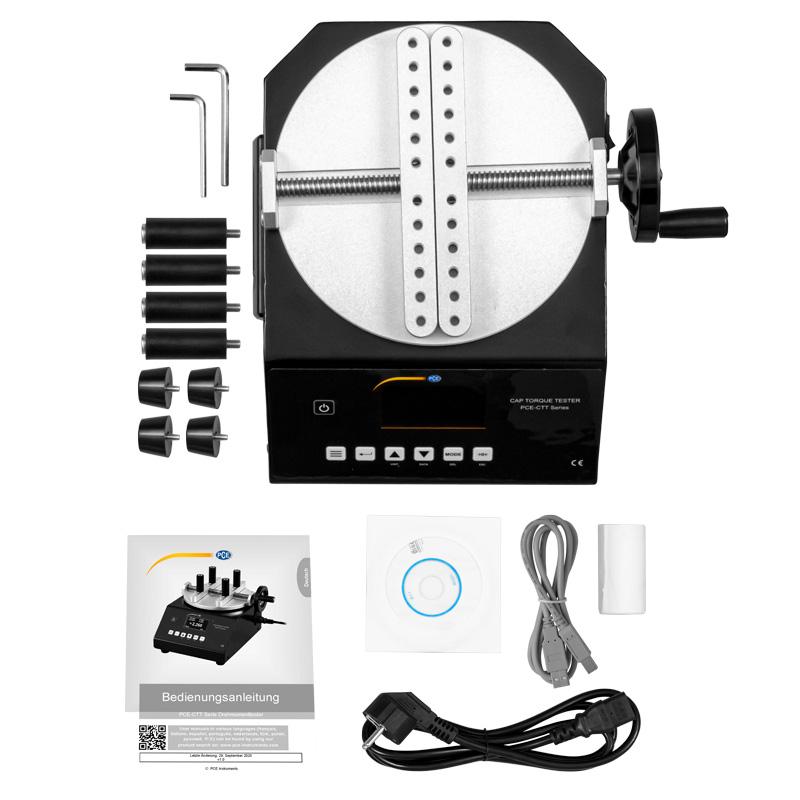

Package contents
1 x Torque meter for bottles PCE-CTT 2
1 x USB cable
1 x IEC cable
1 x Software
1 x M6 hex socket
1 x M5 hex socket
4 x rubber feet
4 x Rubber sample holders
1 x Instruction manual
1 x USB cable
1 x IEC cable
1 x Software
1 x M6 hex socket
1 x M5 hex socket
4 x rubber feet
4 x Rubber sample holders
1 x Instruction manual
| Code | Range | Reading | Accuracy | Availability | Price excl. VAT | Certificate | Cart |
|---|---|---|---|---|---|---|---|
| PCE-CTT 2 | 2 Nm | 0.001 Nm | 0.3 |
5-8 business days
Αποθήκη PCE Instruments: 2 available.
Estimated delivery 5–8 business days.Details
Αποθήκη PCE Instruments: 2 available.
Estimated delivery 5–8 business days.
|
€2.112,00
|
||
| PCE-CTT 5 | 5 Nm | 0.002 Nm | 0.3 |
5-8 business days
Αποθήκη PCE Instruments: 2 available.
Estimated delivery 5–8 business days.Details
Αποθήκη PCE Instruments: 2 available.
Estimated delivery 5–8 business days.
|
€2.129,00
|
||
| PCE-CTT 10 | 10 Nm | 0.005 Nm | 0.3 |
5-8 business days
Αποθήκη PCE Instruments: 10 available.
Estimated delivery 5–8 business days.Details
Αποθήκη PCE Instruments: 10 available.
Estimated delivery 5–8 business days.
|
€2.144,00
|
