Torque Wrenches

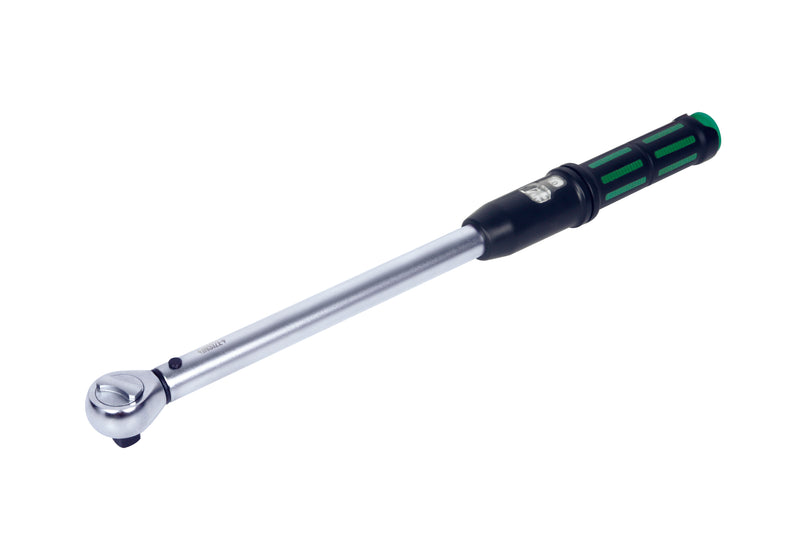

Insize Dual Window Scale IST-28WM torque wrench, metal shaft with ratchet head and black-green handle with scale window

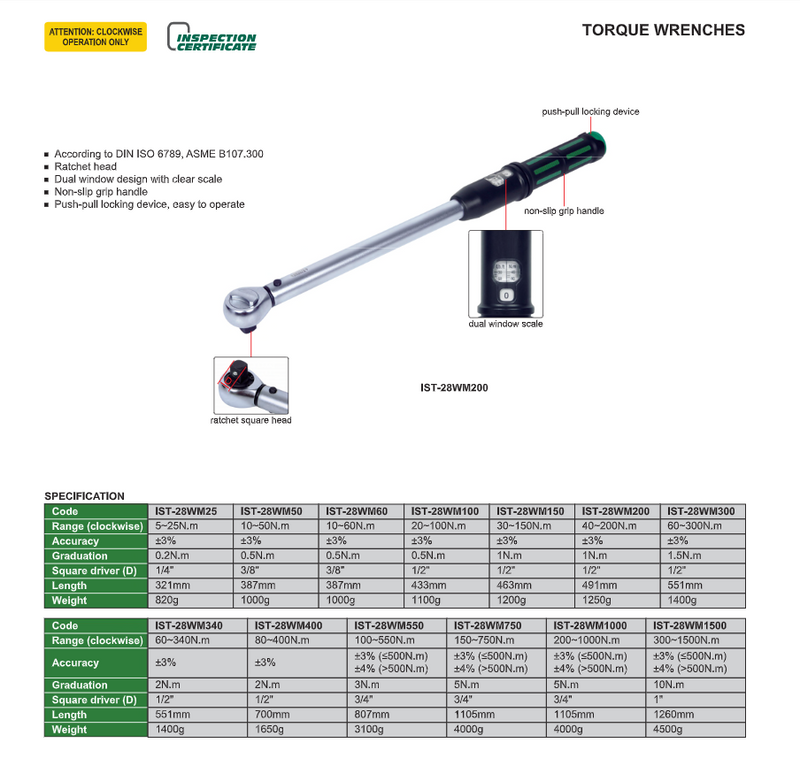

Technical specifications IST-28WM - Dual window scale torque wrench
Insize Dual Window Scale IST-28WM torque wrench, metal shaft with ratchet head and black-green handle with scale window
Technical specifications IST-28WM - Dual window scale torque wrench

Availability & price

13 codes

Code Range (Nm) Accuracy (Nm) Square Driver (L) Availability excl. VATincl. VAT Certificate Cart
IST-28WM25 5~25 0.2 1/4"
€115,00
€142,60
0
IST-28WM60 10~60 0.5 3/8"
€119,00
€147,56
0
IST-28WM50 10~50 0.5 3/8"
€119,00
€147,56
0
IST-28WM100 20~100 0.5 1/2"
€130,00
€161,20
0
IST-28WM150 30~150 1 1/2"
€155,00
€192,20
0
IST-28WM200 40~200 1 1/2"
€171,00
€212,04
0
IST-28WM300 60~300 1.5 1/2"
€192,00
€238,08
0
IST-28WM340 60~340 2 1/2"
€235,00
€291,40
0
IST-28WM400 80~400 2 1/2" Upon Request
€338,00
€419,12
0
IST-28WM550 100~550 3 3/4"
€631,00
€782,44
0
IST-28WM750 150~750 5 3/4" Upon Request
€812,00
€1.006,88
0
IST-28WM1000 200~1000 5 3/4" Upon Request
€1.037,00
€1.285,88
0
IST-28WM1500 300~1500 10 1"
€1.400,00
€1.736,00
0

= Express from Europe: at our premises in 1-2 working days, from €35 + VAT Express from Europe, from €35 + VAT

Express from Europe

At our premises in 1-2 working days if you place the order by 13:00
Cost depending on weight from €35 + VAT

If it takes more than 2 working days, we refund the cost.

Contact us

info@organametrisis.gr 210 2231624

Mon–Fri 08:30–18:00

Description

Technical Specifications

  • Standards: DIN ISO 6789, ASME B107.300

  • Head: ratchet (ratchet)

  • Handle: non-slip with push-pull locking mechanism

  • Display: two scale windows

  • Operating direction: clockwise only (clockwise)

  • Accuracy: ±3% to ±4% (depending on torque range)



Description

The IST-28WM series torque wrenches are designed for clockwise torque application with accuracy according to DIN ISO and ASME standards. They feature a ratchet head, handle with non-slip coating, and push-pull locking mechanism for easy and safe use. They include dual torque display and cover a range from 5 to 1500 N.m for different applications.

Technical Documents 3

Datasheet Technical datasheet Inspection Certificate Quality document Catalog Full manufacturer catalog
Insize

Official distributor

Insize

INSIZE was founded in 1995 and is one of the world's leading manufacturers of measuring instruments and metrological equipment. With factories in China and other Asian countries, as well as production units in Germany and Italy for the INSIZE PLUS series, the company offers products that stand out for their accuracy, durability and reliability, while being distinguished by their excellent quality-price ratio.
