CODEIST-29WM
CODEIST-29WM

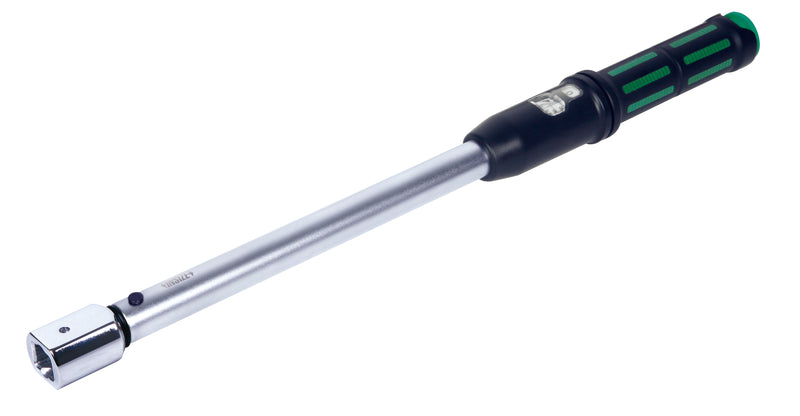

Torque wrench with interchangeable heads Dual Window Scale
-
Length: From 315 mm to 1137 mm.
-
Right-hand operation only
-
Double display window with an easy-to-read scale.
-
Non-slip handle.
-
Push-pull locking system for easy head change.
Availability & price
11 codes
| Code | Range (Nm) | Graduation (Nm) | Socket Size (mm) | Availability | excl. VAT | incl. VAT | Certificate | Cart |
|---|---|---|---|---|---|---|---|---|
| IST-29WM25 | 5~25 | 0.2 | 12x9 |
€159,00
|
€197,16
|
|||
| IST-29WM50 | 10~50 | 0.5 | 12x9 |
€163,00
|
€202,12
|
|||
| IST-29WM60 | 10~60 | 0.5 | 12x9 |
€163,00
|
€202,12
|
|||
| IST-29WM100 | 20~100 | 0.5 | 12x9 |
€186,00
|
€230,64
|
|||
| IST-29WM150 | 30~150 | 1 | 18x14 |
€243,00
|
€301,32
|
|||
| IST-29WM200 | 40~200 | 1 | 18x14 |
€246,00
|
€305,04
|
|||
| IST-29WM300 | 60~300 | 1.5 | 18x14 |
€314,00
|
€389,36
|
|||
| IST-29WM400 | 80~400 | 2 | 18x14 | Upon Request |
€481,00
|
€596,44
|
||
| IST-29WM550 | 100~550 | 3 | 32x24 |
€599,00
|
€742,76
|
|||
| IST-29WM750 | 150~750 | 5 | 32x24 | Upon Request |
€728,00
|
€902,72
|
||
| IST-29WM850 | 200~850 | 5 | 32x24 |
€889,00
|
€1.102,36
|
Description

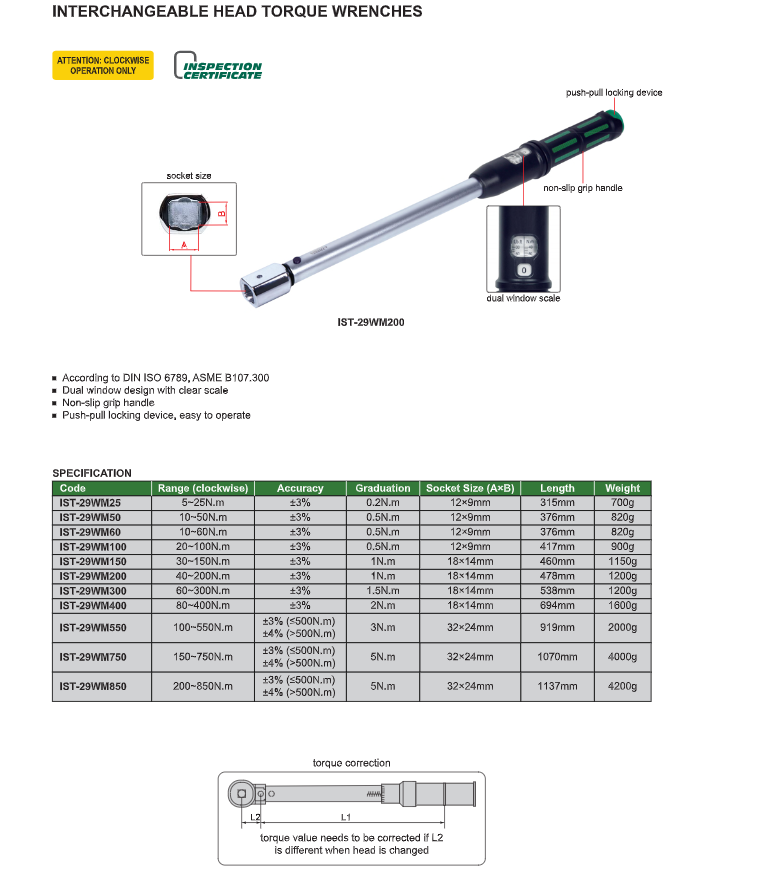

Technical Specifications
-
Length: From 315 mm to 1137 mm.
-
Right-hand operation only
-
Double display window with an easy-to-read scale.
-
Non-slip handle.
-
Push-pull locking system for easy head change.
-
Compatible with DIN ISO 6789 and ASME B107.300.
-
Torque correction is necessary when the head length L2 changes.
Description
Torque wrenches with interchangeable heads and analog torque adjustment for clockwise use. They feature a double display window for easy reading, a non-slip handle, and a push-pull locking mechanism. Suitable for a wide range of applications with the option to select different heads and torques up to 850 N·m. Torque value correction is required when the head length changes.
