Mechanical Machine Tool Vise

Specifications

• Type: Mechanical precision machine vise
• Clamping positions: horizontal, vertical, or lateral
• Body: steel body, hardened and all-round ground
• Bed height H: ≤ 0.01 mm

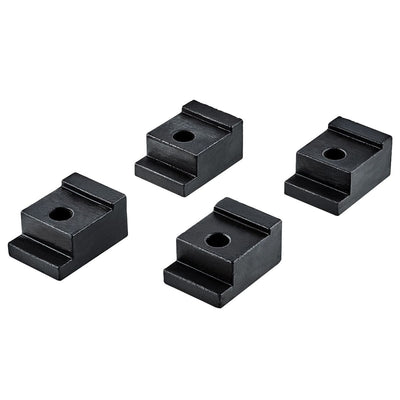

• Included: instructions for use, wrench, 4 pcs. vice clamps, centering nut (pair)
• Available versions:
• ATI-125 (KS30125): A 125 mm, B 40 mm, C 150 mm, D 345 mm, E 410 mm, F 40 mm, G 95 mm, L 16 mm, Weight: 13 kg
• ATI-150 (KS30150): A 150 mm, B 50 mm, C 300 mm, D 520 mm, E 600 mm, F 50 mm, G 125 mm, L 16 mm, Weight: 29 kg
• ATI-175 (KS30175): A 175 mm, B 60 mm, C 300 mm, D 555 mm, E 630 mm, F 58 mm, G 145 mm, L 16 mm, Weight: 42 kg
• ATI-200 (KS30200): A 200 mm, B 65 mm, C 400 mm, D 695 mm, E 780 mm, F 70 mm, G 170 mm, L 16 mm, Weight: 74 kg

Description

Mechanical precision vise for clamping workpieces on machine tools. It supports horizontal, vertical, or lateral clamping and features a hardened, all-round ground steel body for stable, repeatable holding during machining operations.
