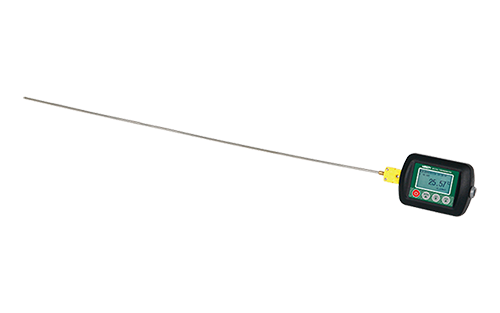

The 0324-DT11 digital thermometer is ideal for accurate temperature measurement in liquids, steam, and gases. It is equipped with a K-type thermocouple sensor and supports multiple thermocouple types (K, E, N, T, S) with a wide measurement range. It features a backlit display, a built-in gravity sensor for automatic screen rotation (horizontal/vertical), and logging functions (Real time, MAX, MIN, AVG). Additionally, it includes software for connection to a computer, allowing online monitoring and data storage.
Key Features
Applications: Temperature measurement in liquids, steam, and gases.
Supported Thermocouple Types: K, E, N, T, S.
Readings: Real-time temperature display (Real time), Maximum (MAX), Minimum (MIN), and Average value (AVG).
Display: Backlit with built-in gravity sensor for automatic horizontal or vertical viewing.
Data Management: Internal memory for 100,000 records. Software for online monitoring and data storage on the computer is included (data cable included).
Power Saving: Automatic shutdown.

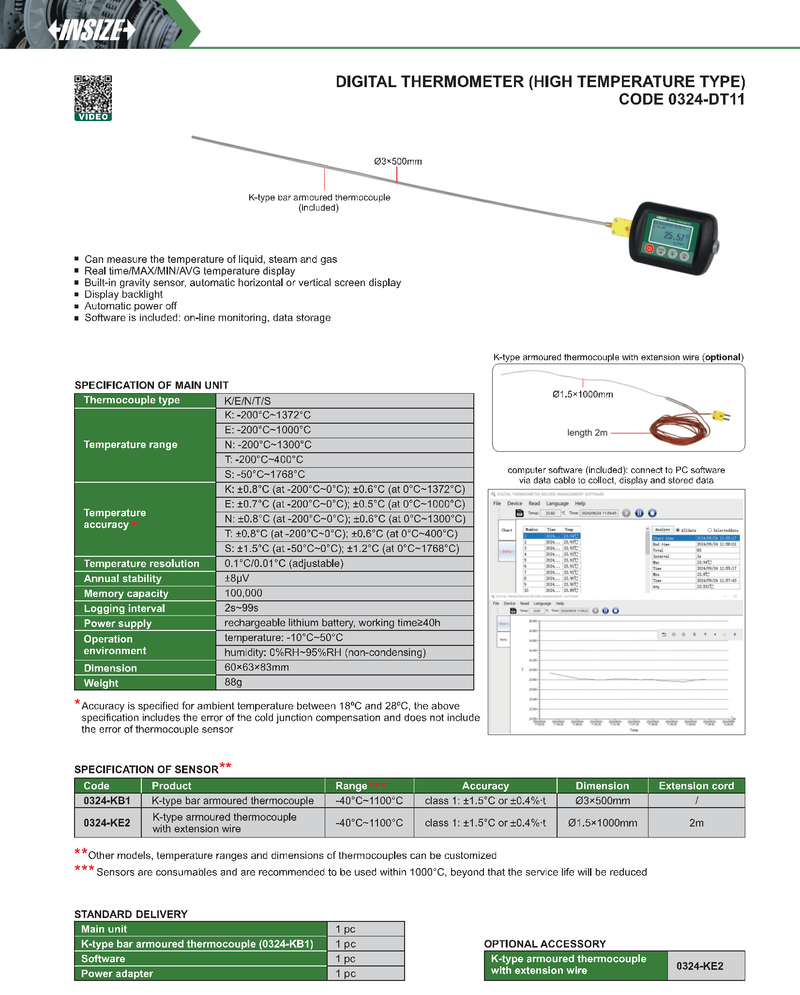

Technical Specifications
Temperature Range (per type):
-
-
K: -200°C ~ 1372°C
-
E: -200°C ~ 1000°C
-
N: -200°C ~ 1300°C
-
T: -200°C ~ 400°C
-
S: -50°C ~ 1768°C
-
Temperature Accuracy (per type, at 18°C ~ 28°C ambient):
-
K: ±0.8°C (from -200°C to 0°C) / ±0.6°C (from 0°C to 1372°C)
-
E: ±0.7°C (from -200°C to 0°C) / ±0.5°C (from 0°C to 1000°C)
-
N: ±0.8°C (from -200°C to 0°C) / ±0.6°C (from 0°C to 1300°C)
-
T: ±0.8°C (from -200°C to 0°C) / ±0.6°C (from 0°C to 400°C)
- S: ±1.5°C (from -50°C to 0°C) / ±1.2°C (from 0°C to 1768°C)
Temperature Resolution: 0.1°C / 0.01°C (adjustable)
Annual Stability: 18μV
Memory Capacity: 100,000 records
Logging Interval: 2s ~ 99s
Power Supply: Rechargeable lithium battery (operating time ≥40 hours)
Operating Environment: Temperature: -10°C ~ 50°C, Humidity: 0%RH ~ 95%RH (non-condensing)
Dimensions (L x W x H): 60 x 63 x 83 mm
Weight: 88g
Specifications of Supplied Sensor (0324-KB1)
Type: K-type bar armoured thermocouple
Measurement Range: -40°C ~ 1100°C (Use up to 1000°C is recommended for longer lifespan)
Accuracy: class 1: ±1.5°C or ±0.4%
Sensor Dimensions: Ø3 x 500 mm
Package Contents
-
1x Main unit
-
1x K-type bar armoured sensor (0324-KB1)
-
1x Software
-
1x Power adapter
| Code | Range | Reading | Availability | Price excl. VAT | Price incl. VAT | Certificate | Cart |
|---|---|---|---|---|---|---|---|
| 0324-DT11 | -200°C...1372°C | 0.1°C / 0.01°C (adjustable) | On Order |
€1.132,00
|
€1.403,68
|
