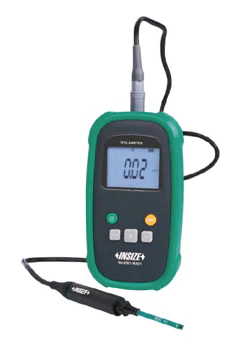

Magnetic Field Meter AC/DC (Gaussmeter)

Code: 0502-MC01 / 0502-MC02

Measurement range: 2500 mT

Resolution:

• 0.001 mT (<30 mT)

• 0.01 mT (30~300 mT)

• 0.1 mT (300~2500 mT)

Measurement units: mT, G, Oe, kA/m (1 mT = 10 G = 10 Oe = 0.8 kA/m)

Accuracy:

• DC: ±1.0% (0502-MC01), ±2.0% (0502-MC02)

• AC: ±5.0% for both models

Frequency range: DC, 40~500 Hz

Temperature coefficient: ±0.1%/K

Zero drift: ±0.1 mT/h

Interface: USB

Operating environment: temperature: 0°C~45°C, humidity: 20%~80% RH, non-condensing

Storage environment: temperature: -20°C~70°C, humidity: <85% RH, non-condensing

Power supply: 3×1.5V AA batteries or USB

Dimensions (L×W×H): 165×90×40 mm

Weight: 350 g

Switch between DC or AC measurement mode

N/S polarity indication of the DC magnetic field

Zeroing function: eliminates the effect of zero drift before measurement

Maximum value hold: records the maximum value of the varying magnetic field

Auto range selection

Relative measurement function

Alarm limit setting (upper and lower)

Built-in USB interface for data transfer

Backlit display

Auto power off
