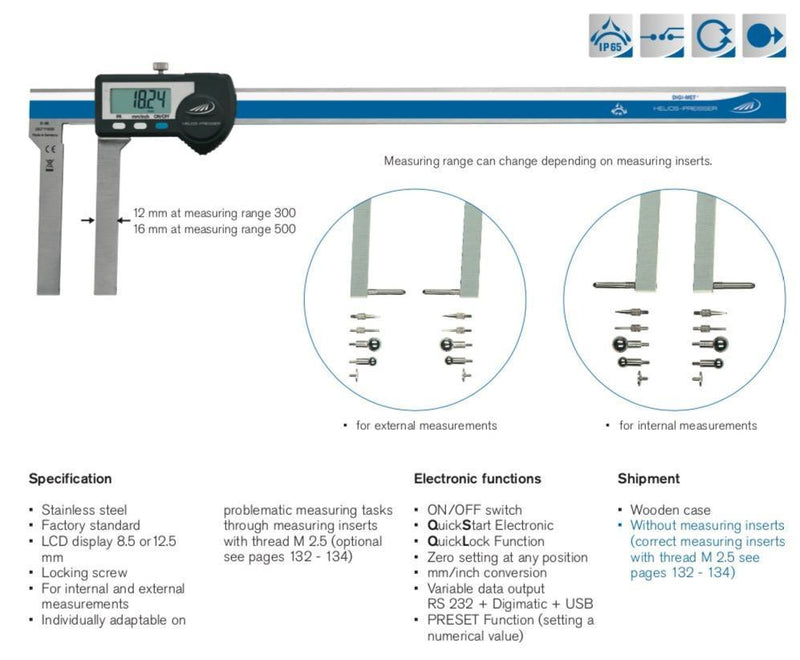

Caliper Internal/External with interchangeable probes

Stainless steel
Factory standard
LCD display 10 or 12.5 mm
Locking screw
For internal and external measurements
individually adaptable on problematic tasks through measuring inserts with thread M 2.5 (optional see pages 132 - 134)

Same-day dispatchfor orders placed by 15:00

Free shippingon orders over €80 (incl. VAT)

ISO 17025 calibrationupon request

Availability & price

2 codes

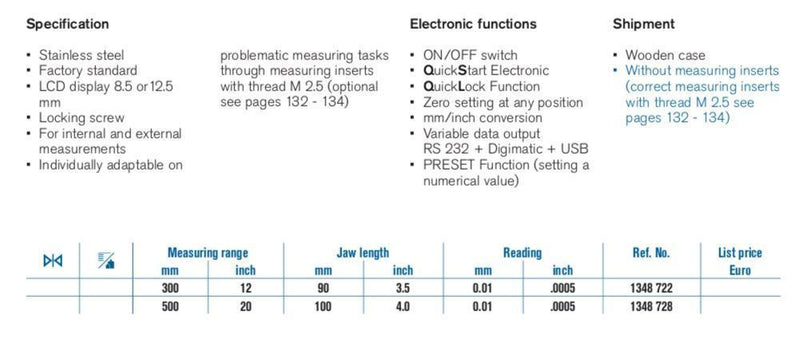

Code	From	To	Jaws	Availability	excl. VAT	incl. VAT	Certificate	Cart
1348722	12	300	90	On Order	€825,00	€1.023,00	Calibration attached Press + to add to cart	0
1348728	16	500	100	On Order	€1.049,00	€1.300,76	Calibration attached Press + to add to cart	0

Standard	Factory standard
Model	Stainless steel Factory standard LCD display 10 or 12.5 mm Locking screw For internal and external measurements individually adaptable on problematic tasks through measuring inserts with thread M 2.5 (optional see pages 132 - 134)
Material	stainless steel
Measuring surface	hardened
Display model	Electronic numerical display
Functions	ON / OFF Quick-Start Quick-Lock (key lock) Set to zero at any point mm / inch switching PRESET-Function (setting a numerical value) Variable data output RS 232 + Digimatic + USB
Data output	DataVariable
IP protection category	IP 65
Power supply	Battery 3 V
Battery type	CR 2032 (3V Lithium)
Fitted with measuring jaws	with M2.5 threads for contact blocks
Application	for internal and external measurements
