Dial & Centering Indicators

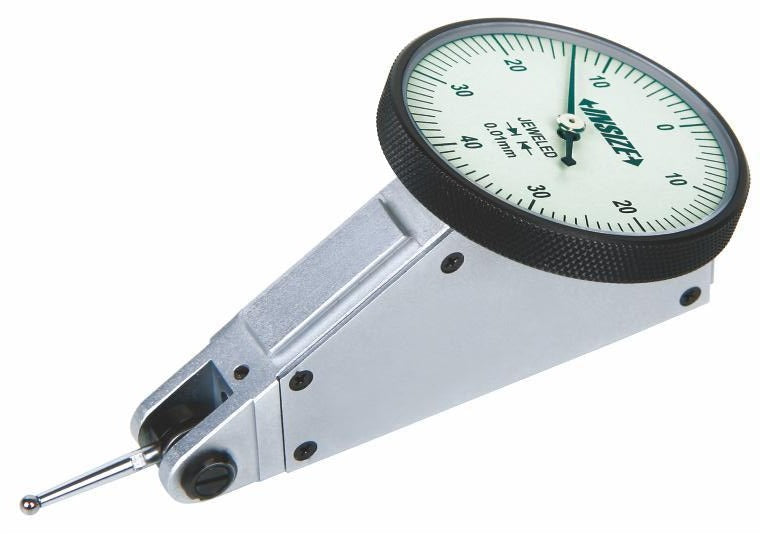

Ρολόι γράφτη κεντραρίσματος Insize 2399 με κεκλιμένο καντράν, μαύρη στεφάνη και μεταλλικό σώμα με ακίδα επαφής
Τεχνικά χαρακτηριστικά 2399 - Ρολόι Γράφτη Κεντραρίσματος με κεκλιμένο πρόσωπο
Ρολόι γράφτη κεντραρίσματος Insize 2399 με κεκλιμένο καντράν, μαύρη στεφάνη και μεταλλικό σώμα με ακίδα επαφής
Τεχνικά χαρακτηριστικά 2399 - Ρολόι Γράφτη Κεντραρίσματος με κεκλιμένο πρόσωπο

Availability & price

Code Travel Reading Diameter Availability excl. VATincl. VAT Certificate Cart
2399-08 +/-0.4mm 0.01 37.5
€83,00
€102,92
0



  • DIN 2270 base
  • Jeweled bearing
  • Carbide pins
  • Two measurement directions
  • Non-magnetic body
  • Includes 2 clamping accessories: for shafts Ø4mm and Ø8mm
  • Optional accessory: styli (page 106).

Make sure to use contact pins of the correct length. Using contact pins of the wrong length will result in measurement errors.

Datasheet Technical datasheet Inspection Certificate Quality document Catalog Full manufacturer catalog

Complementary products

Frequently bought together

Insize

Official distributor

Insize

INSIZE was founded in 1995 and is one of the world's leading manufacturers of measuring instruments and metrological equipment. With factories in China and other Asian countries, as well as production units in Germany and Italy for the INSIZE PLUS series, the company offers products that stand out for their accuracy, durability and reliability, while being distinguished by their excellent quality-price ratio.

This product belongs to the collection

Dial & Centering Indicators

You're viewing one product from this category. Browse the full range.

163 products
View all

Related categories

All categories →
Calipers118 products Micrometers114 products Bore Micrometers18 products Indicator Stands56 products Cylinder Bore Gauges25 products
Dial Indicators

From our Wiki

Dial Indicators

The dial indicators (or comparative gauges) are high-precision measuring instruments used to check the deviations of a surface from a reference point. They are essential for machine tool setup and component quality control, as they can detect differences on the order of 0,01 mm or even 0,001 mm.

  • Types:Face (Plunger Type): They have a spindle that moves linearly up and down. Ideal for measuring flatness and perpendicularity.Test indicators (Lever Type): They have a rotating stylus (lever). They are extremely versatile for measurements in hard-to-reach areas or for checking radial deviation (run-out) on lathes.
  • Applications: * Alignment of parts in the lathe chuck.Checking parallelism on milling machine tables.Measuring wear on brake discs or engine shafts.
  • Use with Magnetic Base: For the indicator to operate, it must be mounted on a stable magnetic base with articulated arms, so that it remains stationary during the measurement.
