CODE5230
CODE5230
Pressure gauge calibration pump 5230-HP60W 0-60MPa
- Model: 5230-HP60W
- Pressure range: 0-60MPa (0-600bar / 0-9000psi)
- Adjustment resolution: 0.1kPa
- Medium: pure water
- Output ports: M20×1.5 female (Qty 3)
- Reservoir volume: 0.38L
- Dimensions (L×W×H): 465×370×240mm
- Weight: 15kg
- Customizable ports (on request): 1/2G, 1/4G, 1/2NPT, 1/4NPT
- Standard delivery: main unit 1pc, O-ring 20pcs
Same-day dispatchfor orders placed by 15:00
Free shippingon orders over €80 (incl. VAT)
Availability & price
2 codes
| Code | Option 1 | Option 2 | Availability | excl. VAT | incl. VAT | Cart |
|---|---|---|---|---|---|---|
| 5230-HP60W | Clean water | 0.1kPa |
€6.301,00
|
€7.813,24
|
||
| 5230-HP60Y | Mineral oil | 0.1kPa | On Order |
€6.301,00
|
€7.813,24
|
Specifications
- Model: 5230-HP60W
- Pressure range: 0-60MPa (0-600bar / 0-9000psi)
- Adjustment resolution: 0.1kPa
- Medium: pure water
- Output ports: M20×1.5 female (Qty 3)
- Reservoir volume: 0.38L
- Dimensions (L×W×H): 465×370×240mm
- Weight: 15kg
- Customizable ports (on request): 1/2G, 1/4G, 1/2NPT, 1/4NPT
- Standard delivery: main unit 1pc, O-ring 20pcs
Description

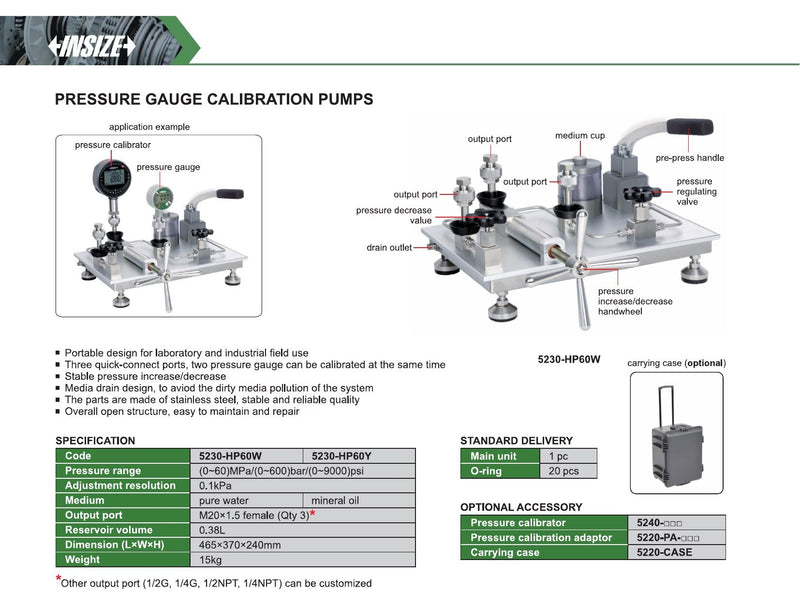

The 5230-HP60W is a pressure gauge calibration pump used to generate and finely regulate pressure up to 60MPa for testing/calibrating pressure instruments in laboratory or field work. It features a portable design, three quick-connect output ports (allowing up to two gauges to be calibrated at the same time), valves for pressure increase/decrease and medium drain, and an open structure to simplify maintenance and repair.
