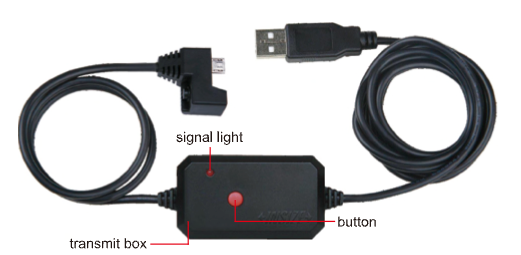

USB Computer Connection Cables (EXCEL)

Code 7302-21: Cable for digital calipers, length 3m.

• Connection: Button on the cable plug.
• Measuring tool: Digital caliper.
• Data transmission: Press the button on the plug, button on the box or the foot switch (optional). The light on the transmission box flashes.

Code 7302-22: Cable for large digital calipers, length 2.5m.

• Connection: Button on the transmission box.
• Measuring tool: Large digital calipers.
• Data transmission: Press the button on the box or the foot switch. The light on the transmission box flashes.

Code 7302-30: Cable for digital micrometers, length 2.5m.

• Connection: "DATA" button on the micrometer.
• Measuring tool: Digital micrometers (series 3102, 3128, 3565).
• Data transmission: Press the "DATA" button, the box button or the foot switch. Simultaneously, the light on the micrometer and the transmission box flash.

Code 7302-31: Cable for digital micrometers, length 2.5m.

• Connection: "DATA" button on the micrometer.
• Measuring tool: Digital micrometers.
• Data transmission: Press the "DATA" button, the box button or the foot switch. Simultaneously, the light on the micrometer and the transmission box flash.

Code 7302-50M: Cable for digital counters, length 2.5m.

• Connection: Button on the transmission box.
• Measuring tool: Digital counters.
• Data transmission: Press the button on the box or the foot switch. The light on the transmission box flashes.

Code 7302-40M: Cable for digital indicators, length 2.5m.

• Connection: "DATA" button on the digital indicator.
• Measuring tool: Digital indicators (series 2108, 2138, 2139).
• Data transmission: Press the "DATA" button, the box button or the foot switch. Simultaneously, the light on the indicator and the transmission box flash.

Code 7302-60: Cable for high-precision digital indicators, length 2.5m.

• Connection: "DATA" button on the digital indicator.
• Measuring tool: High-precision digital indicators.
• Data transmission: Press the "DATA" button, the box button or the foot switch. Simultaneously, the light on the indicator and the transmission box flash.

Code 7302-3350: Cable for digital micrometers, length 2.5m.

• Connection: "DATA" button on the micrometer.
• Measuring tool: Digital micrometers.
• Data transmission: Press the "DATA" button, the box button or the foot switch. The light on the transmission box flashes.

Code 7302-1151: Cable for digital height gauges, length 2.5m.

• Connection: Button on the transmission box.
• Measuring tool: Digital height gauges.
• Data transmission: Press the button on the box or the foot switch. The light on the transmission box flashes.

Code 7302-SPC7: Cable for digital height gauges, length 2.5m.

• Connection: Button on the transmission box.
• Measuring tool: Digital height gauges.
• Data transmission: Press the button on the box or the foot switch. The light on the transmission box flashes.

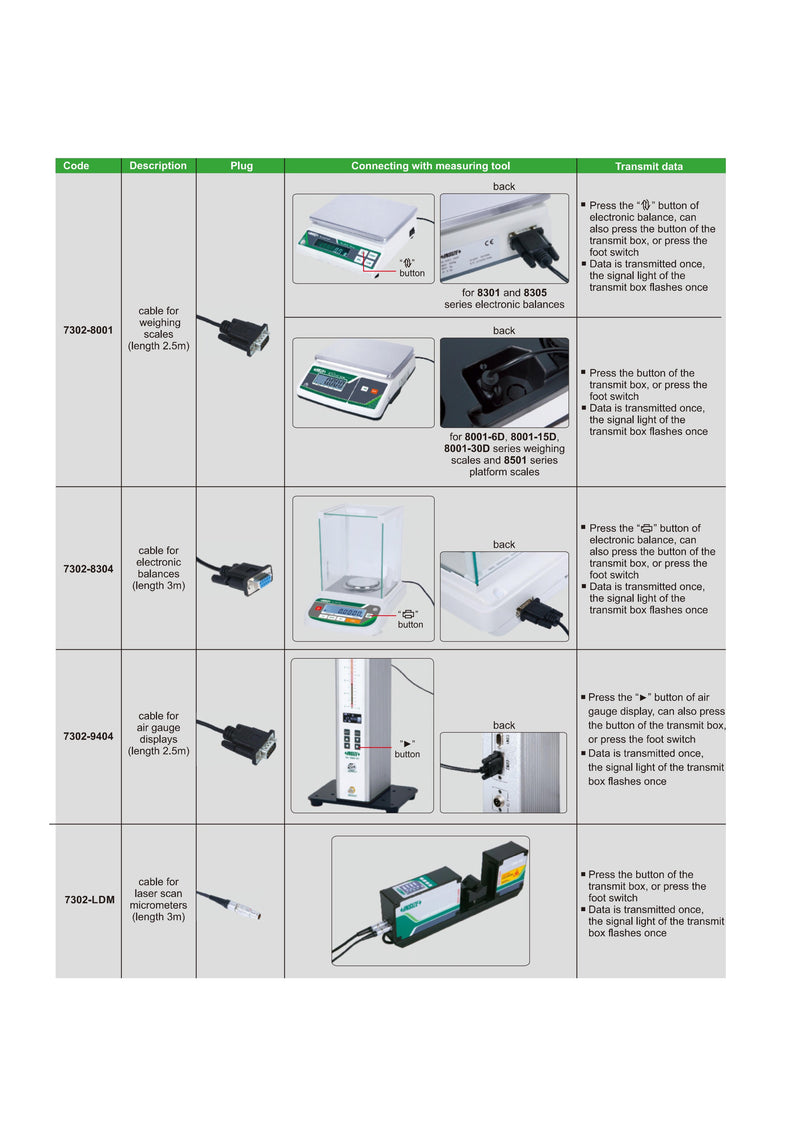

Code 7302-8001: Cable for scales, length 2.5m.

• Connection: Button on the transmission box.
• Measuring tool: Scales (series 8301, 8305).
• Data transmission: Press the button on the box or the foot switch. The light on the transmission box flashes.

Code 7302-8304: Cable for scales, length 3m.

• Connection: Button on the transmission box.
• Measuring tool: Scales (series 8001-6D, 8001-15D, 8001-30D, 8501).
• Data transmission: Press the button on the box or the foot switch. The light on the transmission box flashes.

Code 7302-9404: Cable for air gauges, length 2.5m.

• Connection: Button on the transmission box.
• Measuring tool: Air gauges.
• Data transmission: Press the button on the box or the foot switch. The light on the transmission box flashes.

Code 7302-LDM: Cable for laser scan micrometers, length 3m.

• Connection: Button on the transmission box.
• Measuring tool: Laser scan micrometers.
• Data transmission: Press the button on the box or the foot switch. The light on the transmission box flashes.
