Ultrasonic Probe 2.0 - 400 mm - for Cast Iron
- Type: Ultrasonic transducer/probe for ultrasonic thickness gauges
- Probe code: ISU-T12
- Application: for casting iron
- Measuring mode: T-E (Transmit-Echo)
- Frequency: 2.0MHz
Same-day dispatchfor orders placed by 15:00
Free shippingon orders over €80 (incl. VAT)
Availability & price
| Code | Range | Min Ø | Ø Probe | Availability | excl. VAT | incl. VAT | Cart |
|---|---|---|---|---|---|---|---|
| ISU-T12 | 2.0 - 400 mm | Ø30 x 4.0 mm | 16.3 |
€392,00
|
€486,08
|
= Express from Europe: at our premises in 1-2 working days, from €35 + VAT Express from Europe, from €35 + VAT
Description
Specifications
- Type: Ultrasonic transducer/probe for ultrasonic thickness gauges
- Probe code: ISU-T12
- Application: for casting iron
- Measuring mode: T-E (Transmit-Echo)
- Frequency: 2.0MHz
- Diameter (Ød): 17mm
- Measuring range (on steel): 2~400mm
- Minimum pipe size for measurement (diameter × wall thickness): Ø40×3mm
- Applicable temperature: -20~60°C
Description
The ISU-T12 ultrasonic probe (2.0MHz) is used with compatible ultrasonic thickness gauges to measure thickness on casting iron using the T-E (Transmit-Echo) method. It is suitable for non-destructive thickness checks on parts and piping where material thickness verification is required.

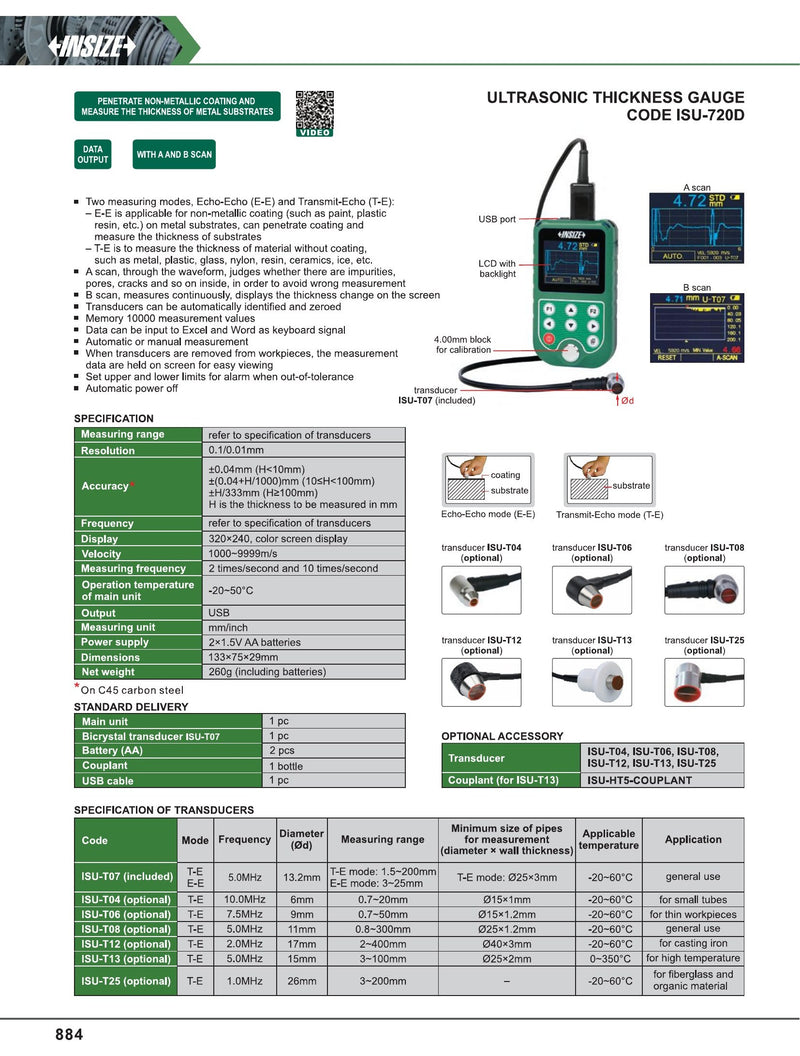

Technical Documents 2
