CODEPCE-228
CODEPCE-228
pH Meter with SD Card - RS-232 Connectivity
- pH, redox and temperature
- SD card memory 1 ... 16 GB
- Data saved as Excel files
- RS-232 interface for PC
- Automatic 3-point calibration
- pH electrode PE-03 included
Availability & price
| Code | Range | Accuracy | Extras | Availability | excl. VAT | incl. VAT | Certificate | Cart |
|---|---|---|---|---|---|---|---|---|
| PCE-228 | pH 0.00 - 14.00 | 0.01 pH | - |
€361,00
|
€447,64
|
- pH, redox and temperature
- SD card memory 1 ... 16 GB
- Data saved as Excel files
- RS-232 interface for PC
- Automatic 3-point calibration
- pH electrode PE-03 included
The PCE-228 is a handheld meter for pH, redox (ORP) and temperature. Readings are stored on an SD card (1 ... 16 GB) as an Excel file, so no extra software is needed for evaluation, or sent live to a PC over the RS-232 interface. Software and the matching RS-232 cable are available as accessories.
Temperature compensation is manual or automatic using the supplied temperature sensor, and the three-point calibration runs automatically. Redox (ORP) measurement needs an additional ORP electrode; we recommend the ORP-14. The meter runs on 6 x 1.5 V batteries, included. It suits pH measurement in the laboratory and on site.
Highlights
- Measures pH, redox (ORP) and temperature
- SD card memory, 1 ... 16 GB
- Saves data directly as Excel files
- RS-232 interface for online data transfer
- Automatic 3-point calibration
- Manual or automatic temperature compensation
- pH electrode PE-03 and stainless steel sensor included
- Large backlit LCD, BNC connector, adjustable measuring rate
| pH | |
|---|---|
| Measuring range | 0 ... 14 pH |
| Resolution | 0,01 pH |
| Accuracy | ±(0.02 pH +2 digits) |
| Redox | |
| Measuring range | -1999 ... +1999 mV |
| Resolution | 1 mV |
| Accuracy | ±(0.5 % +2 digits) |
| Temperature | |
| Measuring range | 0 ... 65 °C |
| Resolution | 0,1 °C |
| Accuracy | ±0.5 °C |

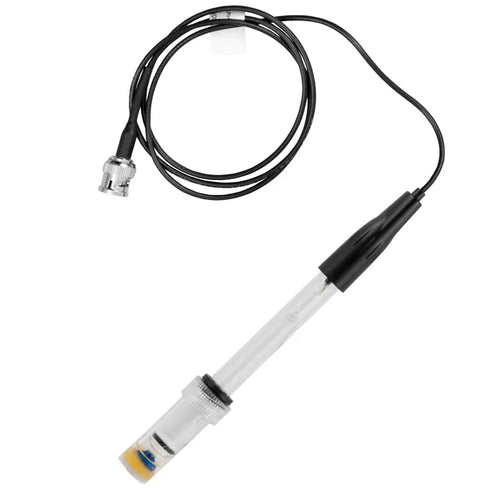

| Electrode | |
| Designation | PE-03 |
| Measuring range | 1 ... 13 pH |
| Temperature range | 0 ... 60 °C |
| Application | Aqueous non-corrosive media |
| Reference electrolyte | Ag/AgCl |
| Shank material | Epoxy resin |
| Shank length | 160 mm |
| Shank diameter | 12,4 mm |
| Cable length | 1 m |
| Connection | BNC |
| General technical data | |
| Measuring functions | MIN, MAX, HOLD |
| Temperature compensation | - automatic 0 ... 65 °C - manual 0 ... 100 °C with temperature sensor removed |
| Display type | LCD with backlight |
| Display size | 2,6 Inch |
| Storage medium | SD card |
| Storage capacity | 4 GB |
| Memory capacity (additional information) | up to 16 GB SD card possible |
| Storage interval from | 1 s |
| Storage interval to | 9 h |
| Interface | RS232 |
| Number of calibration points | 3 |
| Calibration | automatic |
| Menu language | English |
| Protection class (device) | IP20 |
| Power supply | 9 V DC |
| (Rechargeable) battery | 6 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 85 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 186 x 68 x 45 mm |
| Weight | 261 g |
- 1×Environmental Meter PCE-228
- 1×Electrode PE-03
- 1×SD memory card (2 GB)
- 1×Temperature sensor
- 6×Battery
- 1×Instruction manual
