Anemometers
Anemometer - Image 1

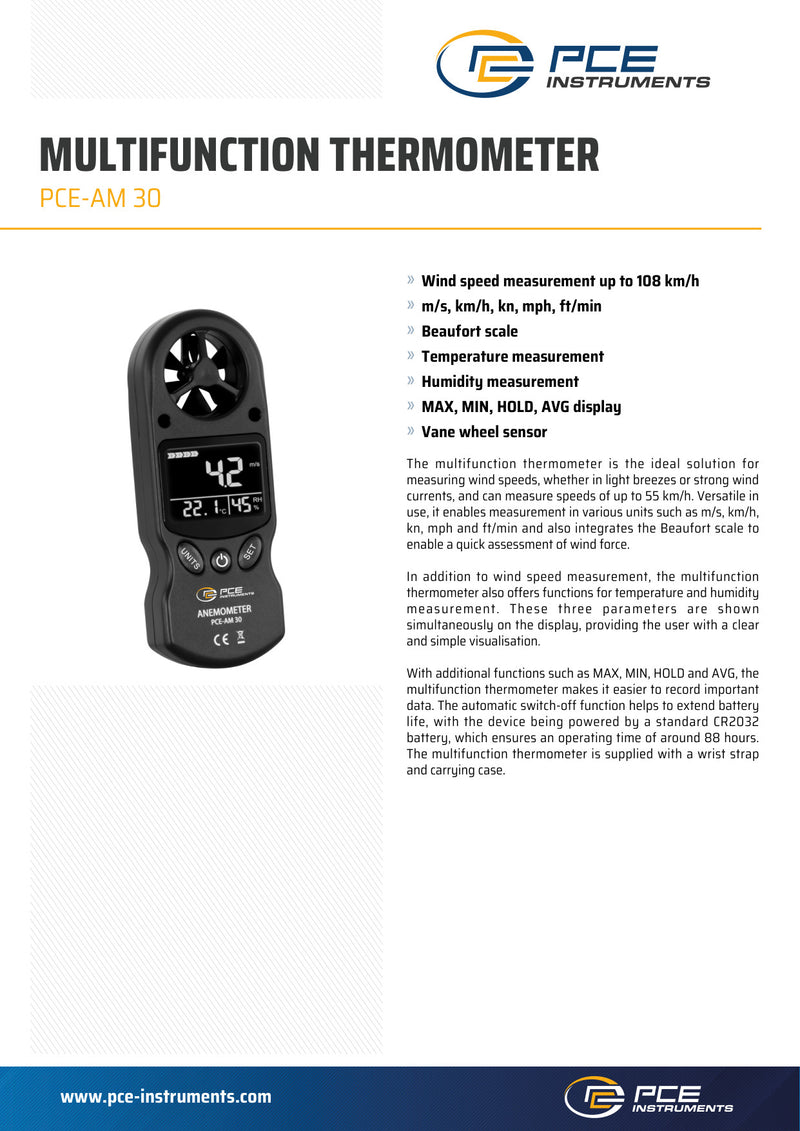

Τεχνικά χαρακτηριστικά PCE-AM 30 - σελίδα 1

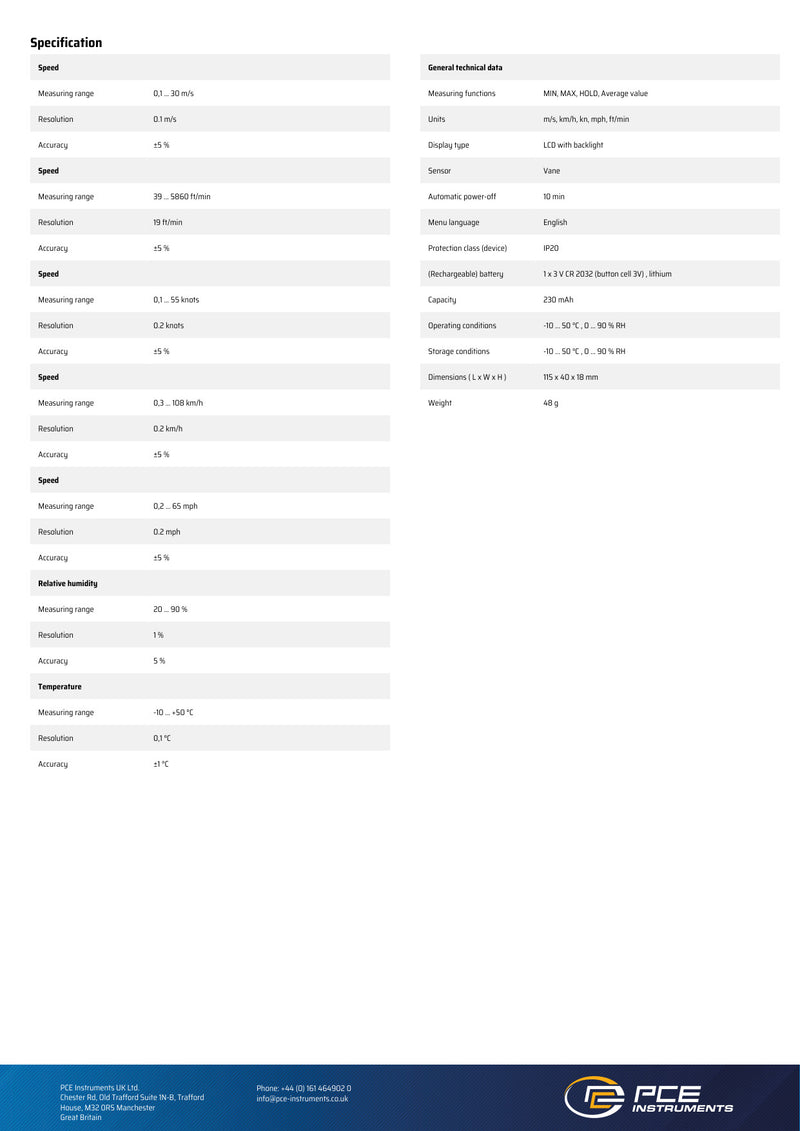

Τεχνικά χαρακτηριστικά PCE-AM 30 - σελίδα 2
Anemometer - Image 2
Anemometer - Image 3
Anemometer - Image 4
Anemometer - Image 5
Anemometer - Image 6
Anemometer - Image 1
Τεχνικά χαρακτηριστικά PCE-AM 30 - σελίδα 1
Τεχνικά χαρακτηριστικά PCE-AM 30 - σελίδα 2
Anemometer - Image 2
Anemometer - Image 3
Anemometer - Image 4
Anemometer - Image 5
Anemometer - Image 6

Availability & price

Code Availability excl. VATincl. VAT Certificate Cart
PCE-AM 30
€66,00
€81,84
0

Description

  • Air speed 0 ... 30 m/s
  • Five units plus Beaufort scale
  • Temperature and humidity too
  • Approx. 88 hours per battery
  • Vane wheel sensor

The PCE-AM 30 is a handheld multifunction thermometer with a vane wheel sensor. It measures air speed from 0 to 30 m/s, plus temperature and relative humidity, and shows all three values at the same time. Speed can be read in m/s, km/h, kn, mph or ft/min, and a Beaufort scale gives a quick assessment of wind force.

MIN, MAX, HOLD and AVG functions help record readings. A 3 V CR2032 button cell gives around 88 hours of operation, and automatic switch-off after 10 min saves power.

Highlights

  • Vane wheel sensor, 0 ... 30 m/s
  • Wind speed up to 108 km/h
  • Units: m/s, km/h, kn, mph, ft/min
  • Beaufort scale for wind force
  • Temperature and humidity measurement
  • MIN, MAX, HOLD and AVG
  • Backlit LCD, three values at once
  • CR2032 cell, approx. 88 hours

Specifications

Speed
Measuring range0,1 ... 30 m/s
Resolution0.1 m/s
Accuracy±5 %
Measuring range39 ... 5860 ft/min
Resolution19 ft/min
Accuracy±5 %
Measuring range0,1 ... 55 knots
Resolution0.2 knots
Accuracy±5 %
Measuring range0,3 ... 108 km/h
Resolution0.2 km/h
Accuracy±5 %
Measuring range0,2 ... 65 mph
Resolution0.2 mph
Accuracy±5 %
Relative humidity
Measuring range20 ... 90 %
Resolution1 %
Accuracy5 %
Temperature
Measuring range-10 ... +50 °C
Resolution0,1 °C
Accuracy±1 °C
General technical data
Measuring functionsMIN, MAX, HOLD, Average value
Unitsm/s, km/h, kn, mph, ft/min
Display typeLCD with backlight
SensorVane
Automatic power-off10 min
Menu languageEnglish
Protection class (device)IP20
Battery1 x 3 V CR 2032 (button cell 3V) , lithium
Capacity220 mAh
Operating conditions-10 ... 50 °C , 0 ... 90 % RH
Storage conditions-10 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H )115 x 40 x 18 mm
Weight48 g

Package Contents

  • 1×PCE-AM 30 Thermometer
  • 1×3 V CR2023 battery
  • 1×carrying case
  • 1×wrist strap
  • 1×operating instructions

Technical Documents 2

Datasheet Technical datasheet Manual User manual
PCE Instruments

Official distributor

PCE Instruments

Η PCE Deutschland GmbH , γνωστή ως PCE Instruments , είναι μια γερμανική εταιρεία με έδρα το Meschede, που από το 1999 έως σήμερα έχει καθιερωθεί διεθνώς ως αξιόπιστος κατασκευαστής και προμηθευτής οργάνων μέτρησης, ελέγχου και ζύγισης. Η εταιρεία διαθέτει μια εξαιρετικά πλούσια γκάμα οργάνων – από μετρητές δόνησης, υγρασίας, θορύβου και θερμοκρασίας έως ζυγούς ακριβείας, αναλυτές, αισθητήρες και καταγραφικά δεδομένων – κ αλύπτοντας κάθε ανάγκη στον χώρο της βιομηχανίας, των εργαστηρίων και της έρευνας.

This product belongs to the collection

Anemometers

You're viewing one product from this category. Browse the full range.

27 products
View all

Related categories

All categories →
Thermometers & Hygrometers Sound meters23 products Photometers13 products Gas detectors51 products
Anemometers

From our Wiki

Anemometers

The anemometers are measuring instruments used to determine the speed and, in many cases, the direction of the wind. They are essential equipment for meteorology and industry, enabling accurate assessment of air masses and ensuring the safe operation of technical projects.

  • Types: They are classified into propeller (vane), anemometers with cups (cup), as well as thermal (hot-wire) or ultrasonic for high-sensitivity measurements.
  • Applications: They are used in navigation, monitoring HVAC systems, construction cranes, wind farms, and air sports.
  • Features: Modern digital anemometers provide measurements in multiple units (m/s, knots, km/h) and often calculate air flow (CMM/CFM) and temperature.
Read the guide
