ATP Meter Surface Cleanliness Meter
- Rapid detection of microbial residue
- 10,000 date- and time-stamped records
- USB port and Bluetooth printer
- PC software for analysis
Availability & price
| Code | Availability | excl. VAT | incl. VAT | Cart |
|---|---|---|---|---|
| PCE-ATP 1 |
€1.501,00
|
€1.861,24
|
- Rapid detection of microbial residue
- 10,000 date- and time-stamped records
- USB port and Bluetooth printer
- PC software for analysis

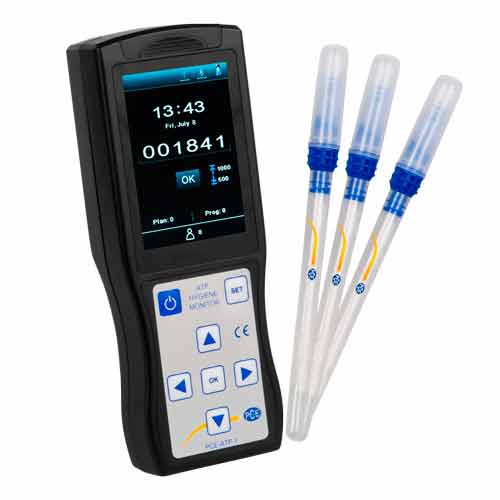

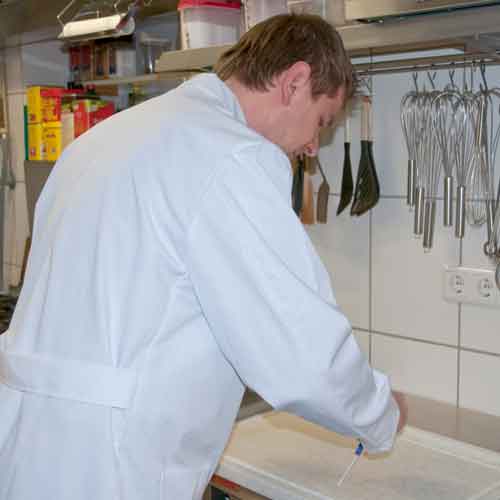

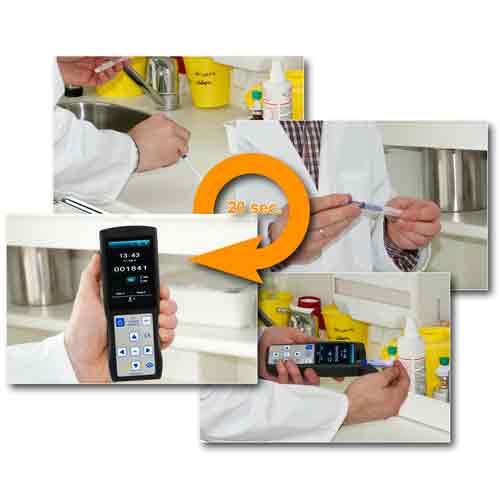

The PCE-ATP 1 is an ATP meter (luminometer) that tests surface hygiene. It detects adenosine triphosphate (ATP) from bacterial or microbial residue to check cleaning, sterilisation and sanitisation. Take a sample with a PCE-ATP SWAB (sold separately). Push the swab fully into the tube so it touches the reaction liquid and reagent, shake gently and insert the tube into the measuring chamber. After 20 seconds the display shows the result in relative light units (RLU).

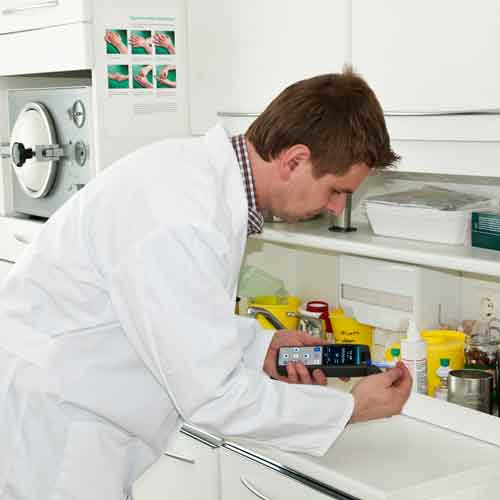

The meter counts photons from the reaction of ATP with luciferase-luciferin. The result is proportional to the ATP level, so higher readings mean more contamination. Its design minimises the influence of disinfectants. Typical uses include breweries, beverages, fish, meat and poultry, fruit and vegetables, catering and baby food. It also checks water, liquids, pipes and tanks, and documents cleanliness before production starts.
Highlights
- Measuring range 0 ... 999,999 RLU
- Memory for 10,000 date- and time-stamped records

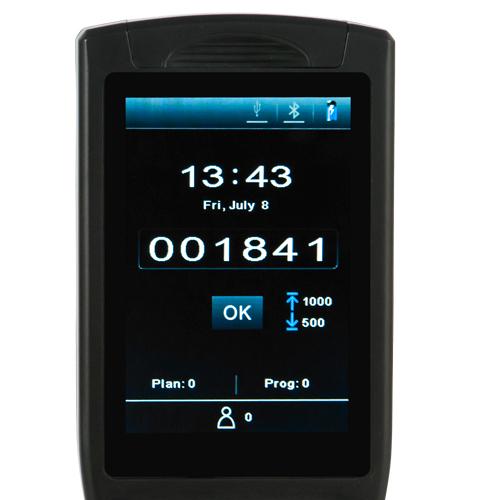

- Results on large LCD after 20 seconds
- Quantifies intracellular and extracellular ATP
- Auto-calibration and multi-user function
- USB and Bluetooth printer interfaces
- PC software for analysis included

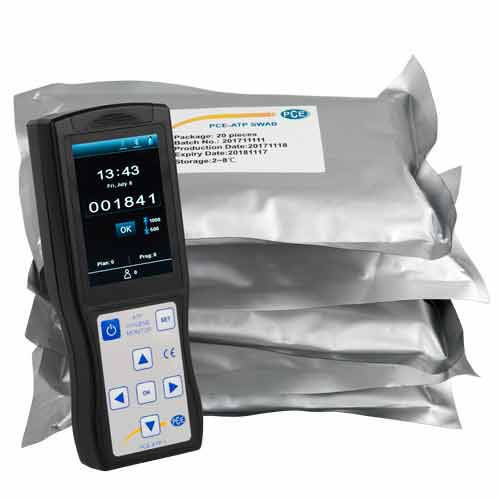

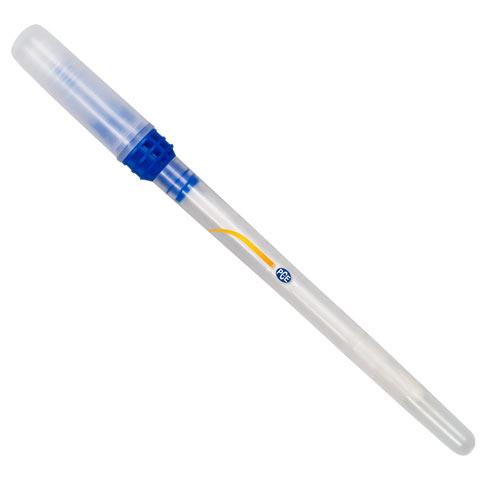

- Swabs (PCE-ATP SWAB) sold separately
| ATP | |
|---|---|
| Measuring range | 0 ... 999999 RLU |
| Resolution | 1 RLU |
| Accuracy | 1x10⁻¹⁸ mol ATP |
| General technical data | |
| Display type | LC colour display with backlight |
| Display size | 3,5 Inch |
| Storage medium | Internal memory |
| Storage capacity | 10000 Data records |
| Memory capacity (additional information) | 256 users, 256 plans, 2,000 programs and 10,000 results |
| Interface | Micro-USB, Bluetooth |
| Operating time | 10 h |
| Operating time additional information | Standby: 600 h |
| Measuring method | Analogue integration using photodiodes |
| Measurement time | 20 s |
| Reproducibility | 8% - 20% |
| Menu language | English, English (GB), Chinese |
| Protection class (device) | IP21 |
| Power supply | 100 ... 240V AC | 50/60 Hz, 5V DC |
| Connector type | Device-europlug |
| Rechargeable battery | 1 x 3,7 V internal , Lithium-ion battery |
| Capacity | 2300 mAh |
| Operating conditions | 5 ... 40 °C , 20 ... 80 % RH |
| Storage conditions | -10 ... 40 °C , 0 ... 60 % RH |
| Dimensions ( L x W x H ) | 189 x 70 x 35 mm |
| Weight | 280 g |
- 1×PCE-ATP 1 Food Hygiene / Hygiene Test Equipment
- 1×3.7 V / 2300 mAh Li-ion rechargeable battery
- 1×USB cable
- 1×USB charger
- 1×Hand strap
- 1×PC software download
- 1×User manual
- Note: Swabs (PCE-ATP SWAB) sold separately. See accessories tab for details.
