Water Quality Meters

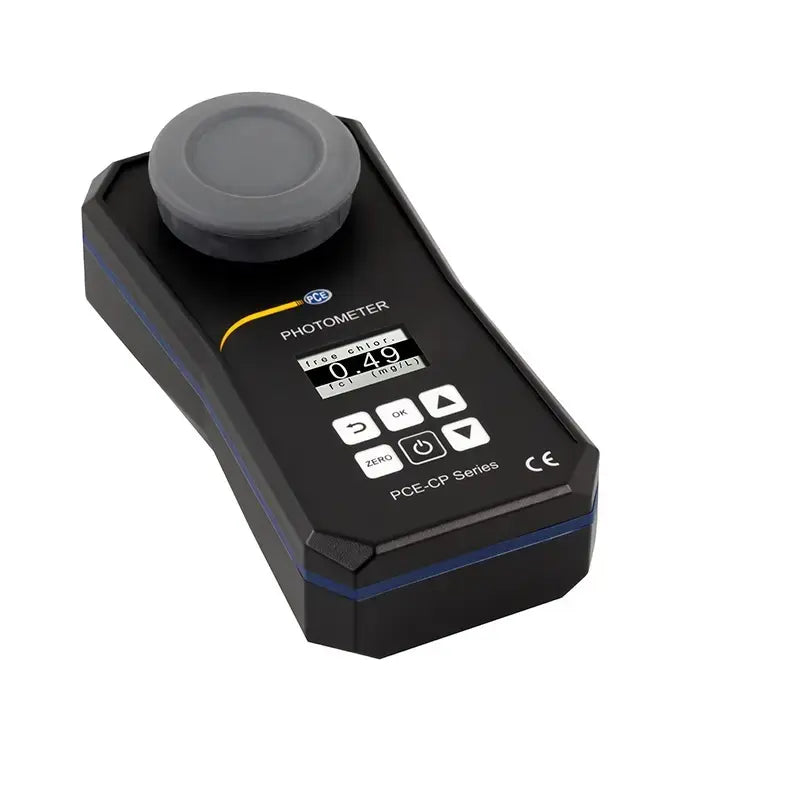

PCE Instruments PCE-CP 10 water quality photometer, black with display and buttons, sample lid on top

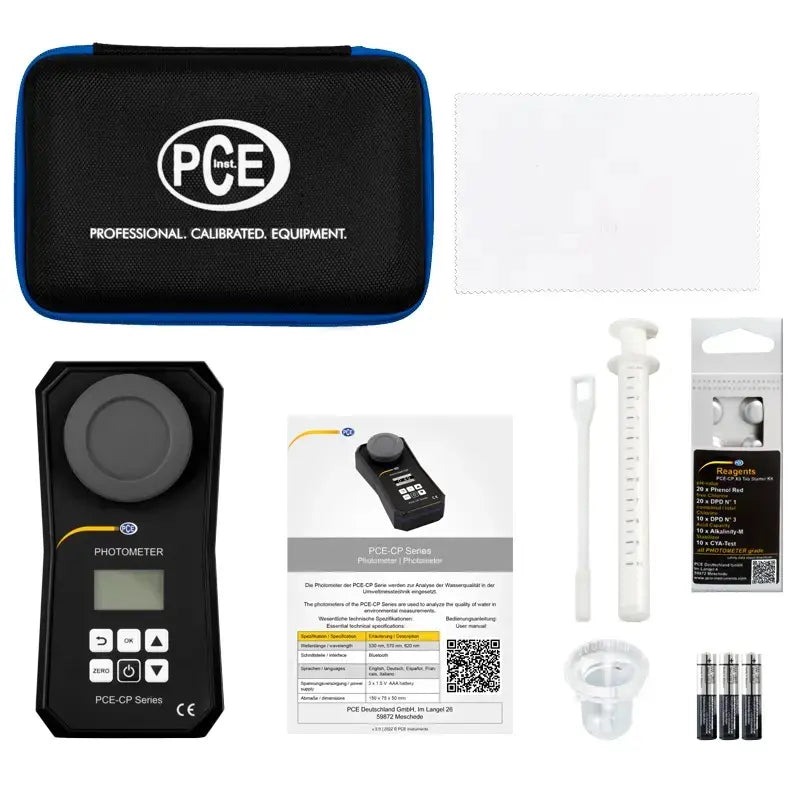

PCE-CP 10 kit with PCE case, photometer, syringe, reagents, batteries and user manual

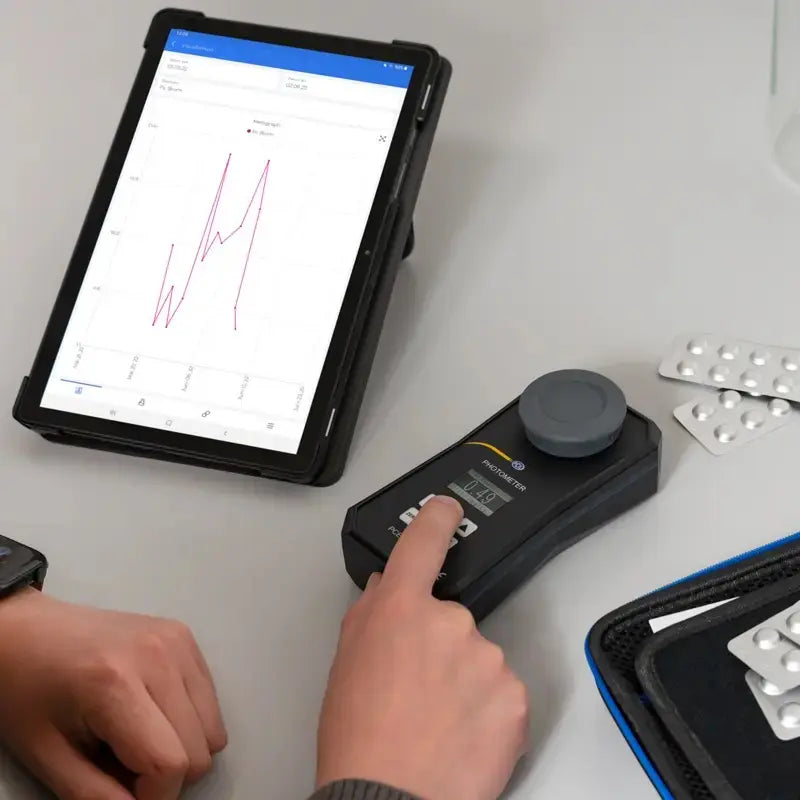

PCE Instruments PCE-CP 10 water quality meter in use, with display and tablet showing a measurement graph
PCE Instruments PCE-CP 10 water quality meter in use with case and test tubes in the laboratory
PCE Instruments PCE-CP 10 water quality meter in use with test strip in a glass of water, next to the meter
Pool water sampling with a glass for quality testing with the PCE Instruments PCE-CP 10 meter
Technician measuring water quality at an industrial plant with sampling containers and control panel

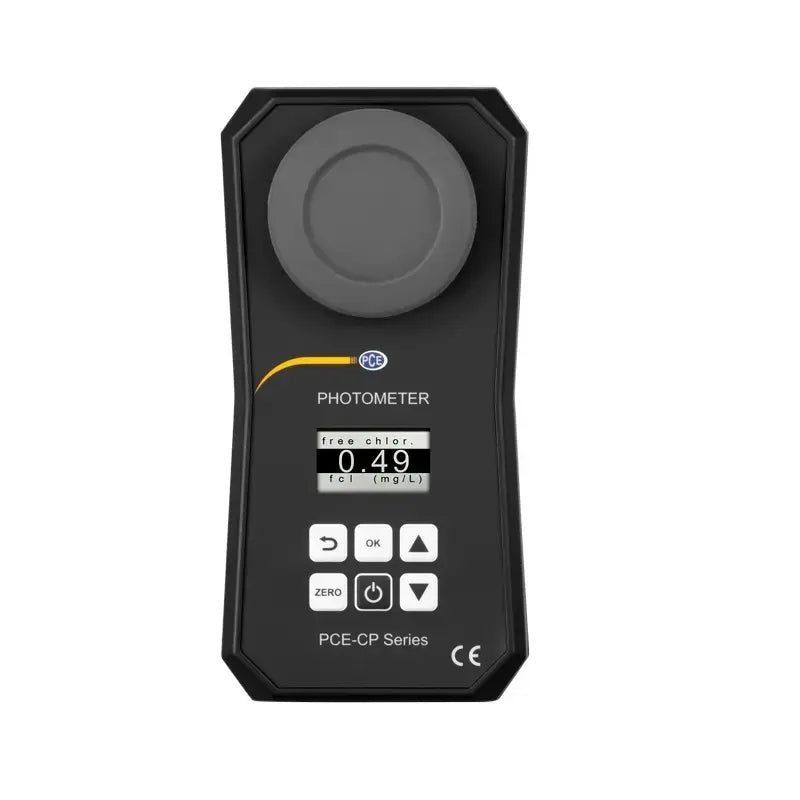

PCE Instruments PCE-CP 10 water testing photometer, black with display and control buttons

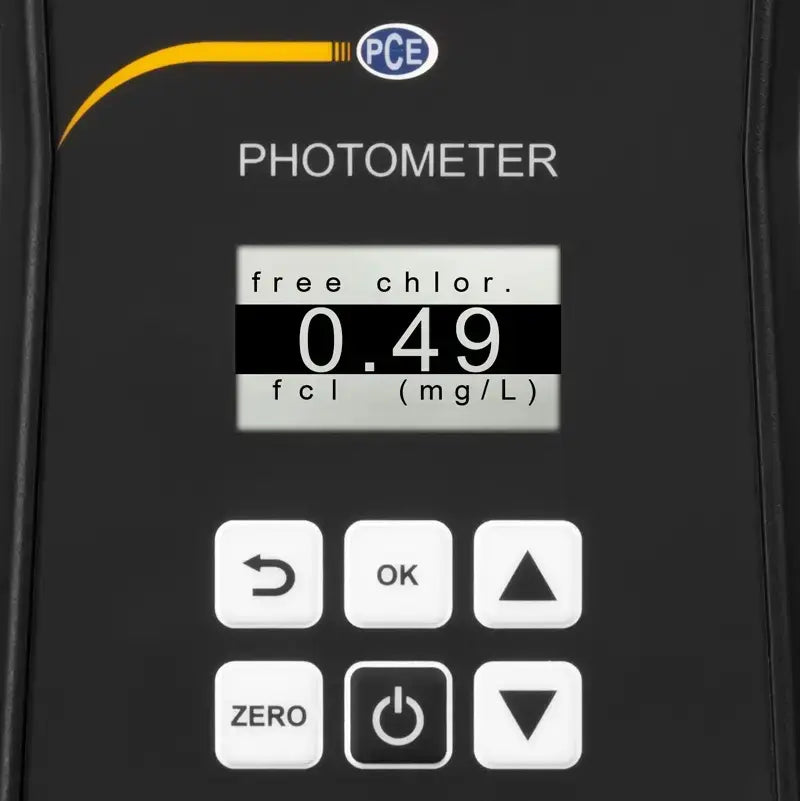

PCE PCE-CP 10 photometer, black, with display showing free chlorine 0,49 mg/L and OK/Zero/arrow buttons
PCE Instruments PCE-CP 10 water quality photometer, black with display and buttons, sample lid on top
PCE-CP 10 kit with PCE case, photometer, syringe, reagents, batteries and user manual
PCE Instruments PCE-CP 10 water quality meter in use, with display and tablet showing a measurement graph
PCE Instruments PCE-CP 10 water quality meter in use with case and test tubes in the laboratory
PCE Instruments PCE-CP 10 water quality meter in use with test strip in a glass of water, next to the meter
Pool water sampling with a glass for quality testing with the PCE Instruments PCE-CP 10 meter
Technician measuring water quality at an industrial plant with sampling containers and control panel
PCE Instruments PCE-CP 10 water testing photometer, black with display and control buttons
PCE PCE-CP 10 photometer, black, with display showing free chlorine 0,49 mg/L and OK/Zero/arrow buttons

Availability & price

Code Availability excl. VATincl. VAT Cart
PCE-CP 10
€412,00
€510,88
0
  • 5 selectable parameters
  • Bluetooth with app and PC software
  • Free cloud service
  • Stores 255 measured values
  • 10 ml sample cuvette

The PCE-CP 10 is a portable multi-parameter photometer for liquid analysis. It determines pH, alkalinity, chlorine and cyanuric acid, with up to 5 selectable parameters. For a measurement, place a 10 ml water sample in the cuvette (36 x ø 21 mm / 3.6 x ø 2.1 cm). A photodiode reads the value from the light transmission of the sample.

Every reading is saved automatically; the internal memory holds 255 values. Stored values transfer over Bluetooth to a mobile device or a PC, using the free app or free PC software. Data can also be uploaded to the free cloud service and accessed from anywhere.

Highlights

  • Measures pH, alkalinity, chlorine and cyanuric acid
  • Up to 5 selectable parameters
  • Bluetooth link to mobile device or PC
  • Free app, PC software and cloud service
  • Internal memory for 255 readings
  • Exchangeable, lockable cuvette, 10 ml sample
  • Photodiode detector with LED light source
  • Auto power-off after 300 s
Alkalinity
Measuring range0 ... 30 mg/L
Resolution1 mg/L
Accuracy3 mg/l
Measuring range30 ... 60 mg/L
Resolution1 mg/L
Accuracy7 mg/l
Measuring range60 ... 100 mg/L
Resolution1 mg/L
Accuracy12 mg/l
Measuring range100 ... 200 mg/L
Resolution1 mg/L
Accuracy18 mg/l
Chlorine
Measuring range0 ... 2 mg/L
Resolution0,01 mg/L
Accuracy0.10 mg/l
Measuring range2 ... 3 mg/L
Resolution0,01 mg/L
Accuracy0.23 mg/l
Measuring range3 ... 4 mg/L
Resolution0,01 mg/L
Accuracy0.75 mg/l
Measuring range4 ... 8 mg/L
Resolution0,01 mg/L
Accuracy1.00 mg/l
Cyanuric acid
Measuring range0 ... 15 mg/L
Resolution1 mg/L
Accuracy1 mg/l
Measuring range15 ... 50 mg/L
Resolution1 mg/L
Accuracy5 mg/l
Measuring range50 ... 120 mg/L
Resolution1 mg/L
Accuracy13 mg/l
Measuring range120 ... 160 mg/L
Resolution1 mg/L
Accuracy19 mg/l
pH
Measuring range6,5 ... 8,4 pH
Resolution0,01 pH
Accuracy0.11 pH
General technical data
Unitsmg/l, ppm, mg/l CaCO³, mmol/l KS 4.3, °dH (degree of German hardness), °e (degree of English hardness / Clark degree), °f (degree of French hardness)
Display typeLED
Storage mediumInternal memory
Storage capacity255 Values
InterfaceBluetooth
SensorPhotodiode
Automatic power-off300 s
Light source530nm/570nm/620nm LED
Number of calibration points0
Menu languageEnglish, Spanish, German, French, Italian
Protection class (device)IP21
(Rechargeable) battery3 x 1,5 V AAA battery , Alkali-manganese
Capacity1200 mAh
Performance1,8 Wh
Operating conditions5 ... 45 °C , 20 ... 90 % RH
Storage conditions5 ... 45 °C , 20 ... 90 % RH
Dimensions ( L x W x H )150 x 75 x 52 mm
Other dimensionsCuvette: 36 x ø 21 mm (10 ml)
Weight196,5 g
  • 1×Multi-parameter Photometer PCE-CP 10 incl. Cuvette
  • 1×Replacement cuvette
  • 1×Light protection cover
  • 1×Microfiber cloth
  • 1×Plunger
  • 1×10 ml dosing pipette
  • 3×AAA batteries
  • 1×Quick start guide
  • 1×Service bag
  • 1×Free app
  • 1×Free PC software
  • 1×Free cloud service
  • 1×Reagent starter kit (20 x pH, 20 x free chlorine, 10 x combined / total
  • chlorine, 10 x alkalinity, 10 x cyanuric acid)
Datasheet Technical datasheet Manual User manual
