PCE-DC 41 Ammeter Clamp - Multimeter

Specification

Technical specifications

• Direct Voltage
  • Input Impedance: 1 MΩ
  • Range: 600 V
  • Resolution: 0.1 V
  • Accuracy: ±1% + 2 digits
• Direct Voltage (Peak Model)
  • Input Impedance: 1 MΩ
  • Range: 600 V
  • Resolution: 0.1 V
  • Accuracy: ±1.5% + 8 digits
• Alternating Voltage
  • Input Impedance: 1 MΩ
  • Range: 600 V
  • Resolution: 0.1 V
  • Accuracy: ±1.2% + 5 digits (50...500 Hz)
• Alternating Voltage (Peak Model)
  • Input Impedance: 1 MΩ
  • Range: 600 V
  • Resolution: 0.1 V
  • Accuracy: ±1.7% + 10 digits
• Direct Current
  • Range: 60 A / 600 A
  • Resolution: 0.01 A / 0.1 A
  • Accuracy: ±2% + 5 digits
• Direct Current (Peak Model)
  • Range: 600 A
  • Resolution: 0.1 A
  • Accuracy: ±2.5% + 8 digits
• Alternating Current
  • Range: 60 A / 600 A
  • Resolution: 0.01 A / 0.1 A
  • Accuracy: ±2% + 5 digits (50...60 Hz) / ±3% + 5 digits (60...500 Hz)
• Alternating Current (Peak Model)
  • Range: 600 A
  • Resolution: 0.01 A
  • Accuracy: ±2.5% + 10 digits
• Electrical Resistance
  • Range: 1000 Ω
  • Resolution: 0.1 Ω
  • Accuracy: ±1% + 2 digits
• Continuity Check
  • Buzzer Function: <40 Ω

General Specifications

• Display: 4-digit LCD, Maximum Reading: 6200
• Sampling Rate: 3 times/s
• Power Supply: 2 x 1.5 V AAA batteries
• Battery Life: 50 hours (without buzzer backlight function)
• Auto Power Off: After 30 minutes of inactivity
• Operating Conditions: 0°C to +40°C / <70% RH
• Storage Conditions: -10°C to +60°C / <80% RH

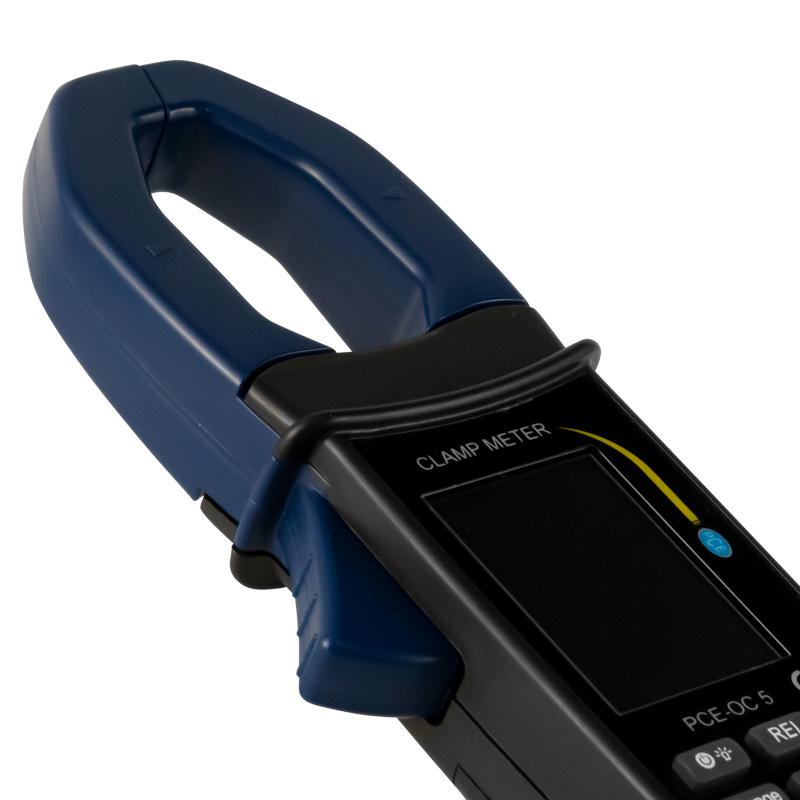

• Maximum Clamp Opening: Ø 25 mm
• Dimensions: 210 mm x 62 mm x 36 mm
• Weight: 273 g / 0.6 lbs with batteries

Description

Clamp Meter PCE-DC 41

• Voltage measurement up to 600 V / current measurement up to 600 A / CAT III 600 V
• Electrical resistance measurement up to 1000 Ω / contact-free measurement of electrical conductors

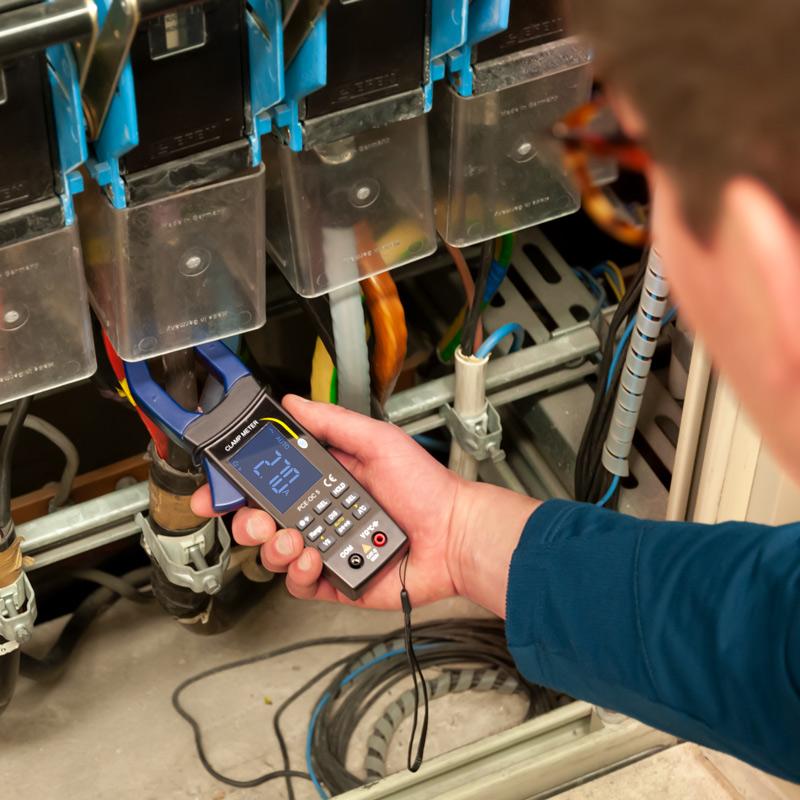

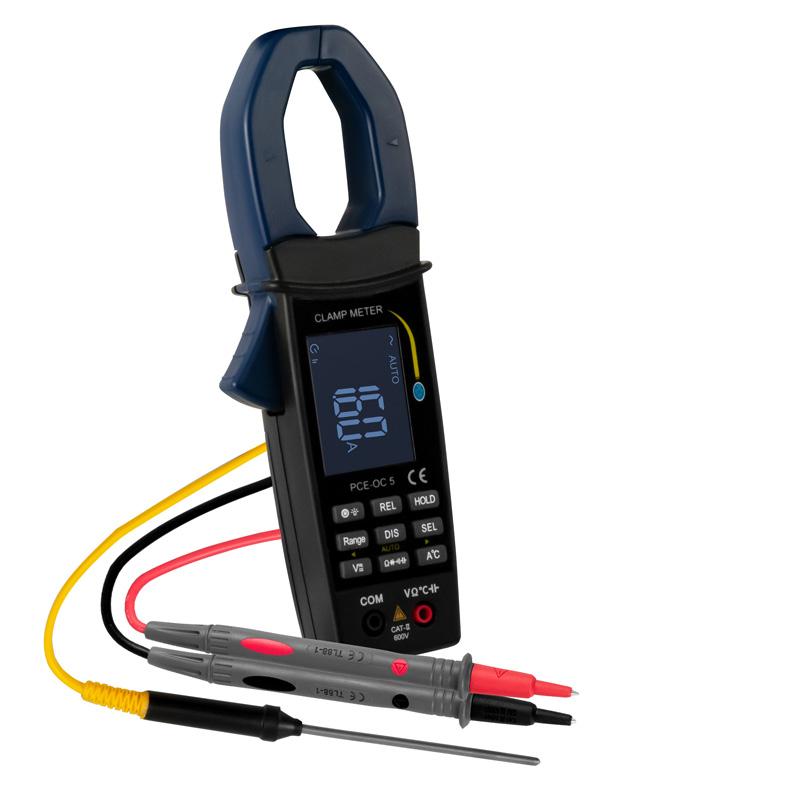

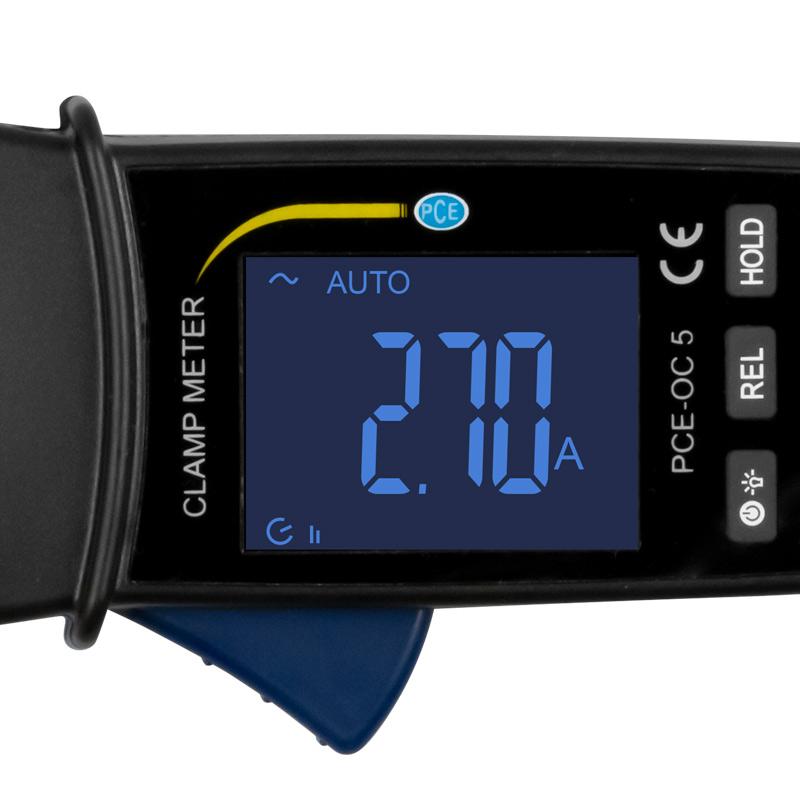

The clamp meter PCE-DC 41 can measure voltages up to 600 V, currents up to 600 A, and electrical resistance up to 1000 Ω. To perform a measurement, you can use the measuring leads included in the package, or the integrated clamp mechanism. The clamp allows you to measure the electrical parameters of a conductor contact-free. The clamp meter features a compact design, light weight, suitable for mobile use, and a large backlit 4-digit display. Functions like peak-hold and data-hold are available, and the auto power-off function conserves battery life.

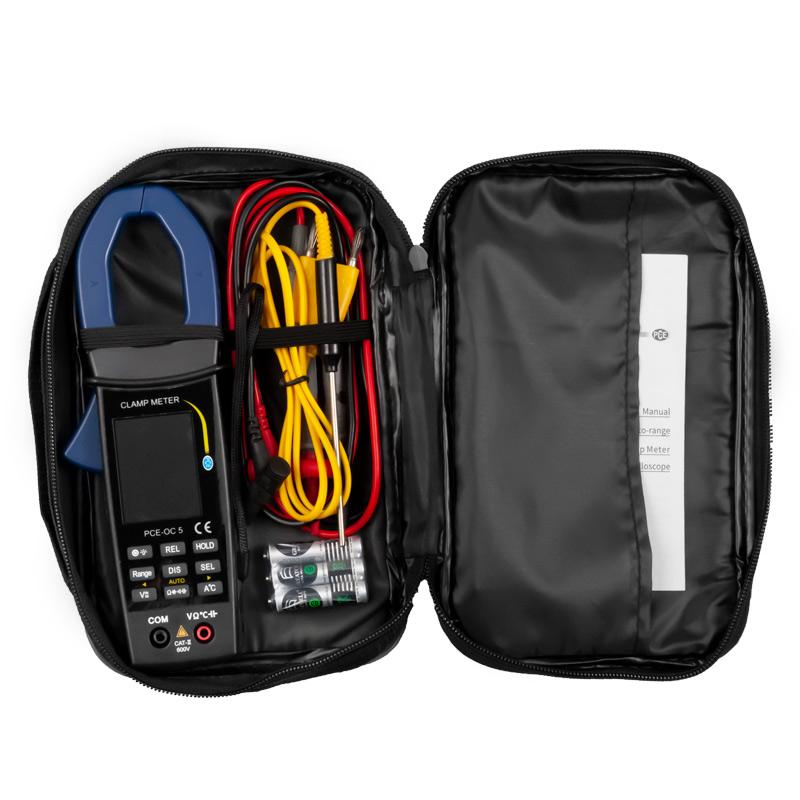

Delivery Scope

1 x PCE-DC 41 1 x Measuring leads 1 x Batteries 1 x Carrying case 1 x Instruction Manual
