Refractometers

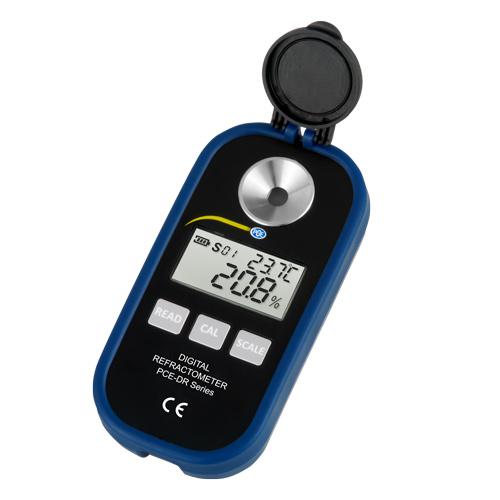

PCE Instruments PCE-DRW 2 digital refractometer, black with blue housing, LCD and prism cover

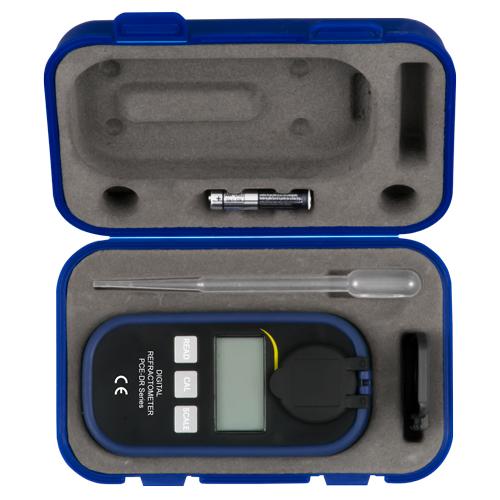

Case with foam insert holding PCE Instruments PCE-DRW 2 digital refractometer, pipette and battery
Case with PCE-DRW 2 digital refractometer, pipette and screwdriver in blue case with foam insert
PCE Instruments PCE-DRW 2 digital refractometer, black with blue housing, LCD and prism cover
Case with foam insert holding PCE Instruments PCE-DRW 2 digital refractometer, pipette and battery
Case with PCE-DRW 2 digital refractometer, pipette and screwdriver in blue case with foam insert

Availability & price

Code Availability excl. VATincl. VAT Certificate Cart
PCE-DRW 2
€415,00
€514,60
0
  • 0 ... 45 % Brix range
  • Brix, alcohol, °Oechsle and KMW
  • IP65 waterproof housing
  • ATC +10 ... +40 °C
  • Reading in approx. 1 s

The PCE-DRW 2 is a handheld digital refractometer for wine and similar liquids. It measures sugar content in Brix, alcohol content (% vol ap), °Oechsle (°Oe) and KMW (babo), plus sample temperature. Ranges are 0 ... 45 % Brix, 0 ... 22 % vol ap, 3 ... 150 °Oe and 0 ... 25 KMW, with automatic temperature compensation (ATC) from +10 ... +40 °C / +50 ... +104 °F.

A sample of 4 to 5 drops gives a reading in about 1 second, shown on a large LCD together with the temperature. The IP65 waterproof housing suits use at the winery, in the field and in the vineyard, including checks on grape ripeness.

Highlights

  • Measures Brix, % vol ap, °Oechsle, KMW and temperature
  • ATC from +10 ... +40 °C / +50 ... +104 °F
  • Result in approx. 1 s from 4 to 5 drops
  • IP65 ABS housing, handheld and portable
  • Large LCD shows measured value and temperature
  • Average function: 15 readings, mean value displayed
  • Stainless-steel ring protects prism, internal light source
  • 3-button operation, distilled water calibration, 1 min auto power-off
Alcohol content
Measuring range0 ... 22 % VOL AP
Resolution0,1 % VOL AP
Accuracy±0.2% VOL AP
Brix
Measuring range0 ... 45 % Brix
Resolution0,1 % Brix
Accuracy±0.2% Brix
Sugar content
Measuring range0 ... 25 °KMW
Resolution0,1 °KMW
Accuracy± 0.2°KMW
Density
Measuring range3 ... 150 °Oe
Resolution1 °Oe
Accuracy2%
Temperature
Measuring range0 ... 40 °C
Resolution0,1 °C
Accuracy±0.5 °C
General technical data
Temperature compensationautomatic 10 ... 40 °C
Display typeLCD
Response time1 s
Automatic power-off1 min
HousingABS (acrylonitrile-butadiene-styrene copolymers)
Sample quantity4 ... 5 drops
Sample trayStainless steel ring with glass prism
Menu languageEnglish, English (GB)
Protection class (device)IP65
(Rechargeable) battery1 x 1,5 V AAA battery , Alkali-manganese
Capacity1200 mAh
Operating conditions10 ... 40 °C , 0 ... 80 % RH
Storage conditions-10 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )125 x 62 x 28 mm
Weight144 g
  • 1×PCE-DRW 2 wine handheld digital refractometer
  • 1×pipette
  • 1×prism cover
  • 1×1.5V AAA battery
  • 1×user manual
  • 1×carrying case
Manual User manual
