PCE-EM 29 - Electromagnetic Radiation Meter - 3-axis
| Frequency range | 50 MHz ... 3.5 GHz |
| Sensor type | Electric field (E) |
| Measurement | 3D, isotropic |
| Measurement range |
20 mV/m ... 108.0 V/m |
| Select measurement range | Automatic |
| Response time | 1 s (until 90% of final value is reached) |
| Units of measurement |
mV/m , V/m , μA/m , mA/m, µW/m², mW/m² |
| Reading |
0.1 mV/m 0.1 µgA/m 0.01 µgW/m² |
|
Measurement error (absolute) (at 1 V/m and 50 MHz) |
±1.0dB |
| Accuracy (frequency dependent) |
±1.0 dB (50 MHz ... 1.9 GHz) ±2.4 dB (1.9 GHz ... 3.5 GHz) |
| Isotropic deflection | ±1.0 dB (at frequency >50 MHz) |
| Maximum overrun | 4.2 W/m² (40 V/m) |
| Deviation due to temperature | ±1.5dB |

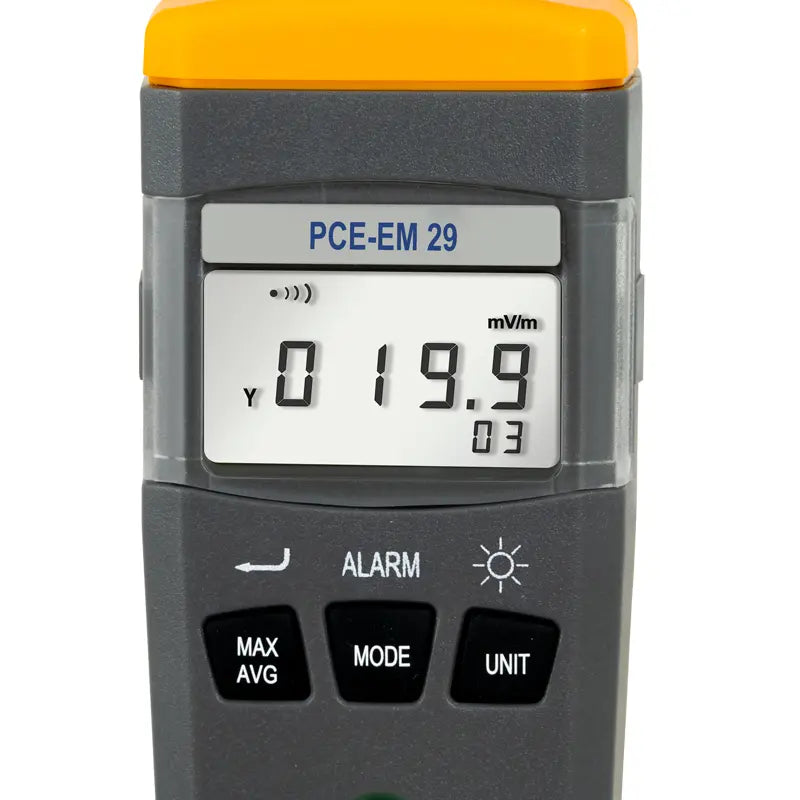

| Screen | 4 digit LCD |
| Refresh rate | every 400 ms |
| Alarm | Acoustic with adjustable limits |
| Calibration factor | Adjustable |
| Automatic shutdown | after 15 min of inactivity |
| Memory |
99 entries |
| Measurements on the screen | Current value, MAX, AVG |
| Power supply | 9V battery |
| Weight | 350g / 0.78lb (With battery) |

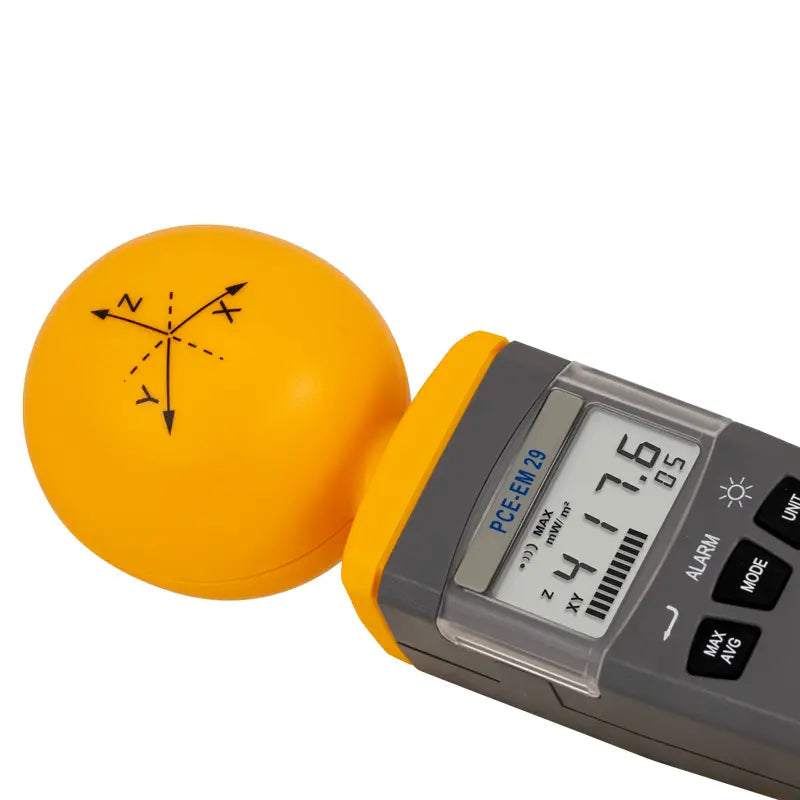

3-axis spherical measuring sensor up to 3.5 GHz / Memory 99 records /
Store maximum value / Display average

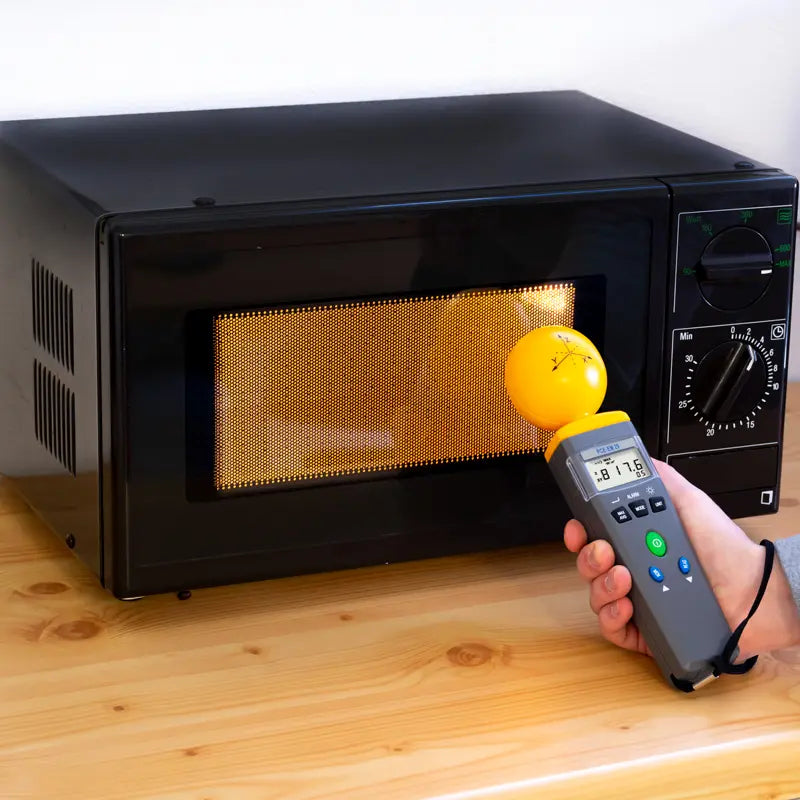

The PCE-EM 29 meter features a three-axis circular sensor for electromagnetic radiation (EMF) detection. The EMF meter is therefore equally suitable for evaluating magnetic fields generated by computer monitors, televisions, industrial equipment (magnetic separators, electric motors, inert gas welding equipment, etc.).
- Three-axis spherical field detector
- MAX, AVG function
- Memory for 99 measured values (can be recalled on the screen)
- Various units of measurement
- Alarm with adjustable limits
- Large LCD screen
- Frequency range up to 3.5 GHz
- Easy handling
- Battery operated
- Suitable for work environment monitoring and analysis

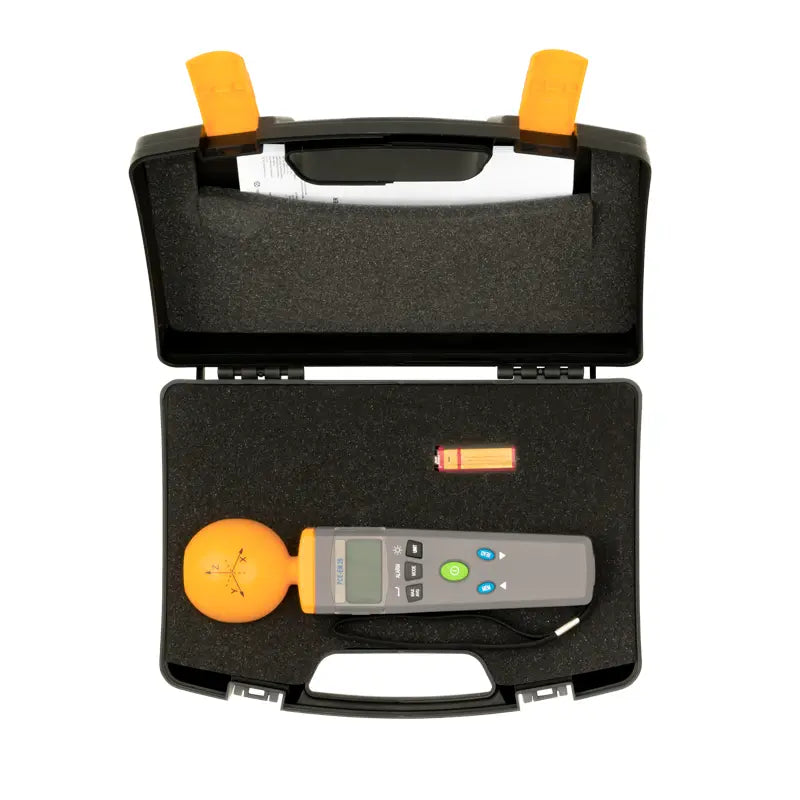

1 x 3-Axis Spherical Sensor
1 x Battery
1 x User Manual
1 x Carrying case
