PCE-EM 30 - Electromagnetic Radiation Meter
| Bandwidth / Frequency range of the EP-03H sensor | 100 MHz ... 3 GHz |
| Range options for the EP-03H detector |
900 MHz, 1 GHz, 1.8 GHz, 2.4GHz, 2.45GHz, 3GHz |
| Bandwidth / Frequency range of the EP-04L sensor | 100 kHz ... 100 MHz |
| Range options for the EP-04L sensor |
100 kHz, 200 kHz, 500 kHz, 1 MHz, 10 MHz, 13.56 MHz, 100 MHz |
| Accuracy | ±2dB |
| Measurement range |
0 ... 199.99 V/m 0 ... 99.999 W/m² 0 ... 9.9999 mW/cm² |
| Reading |
0.01 V/m 0.001 W/m² 0.0001 mW/cm² |
| Initial value |
> 1 V/m > 0.03 W/m² > 0.0003 mW/cm² |
| External sensor type | Triple axis |
| Screen | LCD, 58 x 34 mm / 2.28 x 1.34" |
| Limit value | Adjustable |
| Alarm | Audible signal when the limit value is exceeded |
| Internal memory | 16,000 data records |
| Power | 9V battery |
| Operating conditions | 0 ... 50 ºC / +32 ... +122 ºF, up to 80 % relative humidity (RH) |
| Dimensions |
Gauge: 200 x 76.2 x 36.8mm / 7.88 x 3.00 x 1.45" Sensors: 70 x 240 mm / 2.76 x 9.45" |
| Weight | 523 g / 1.16 lbs (with battery included) |
PCE-EM 30 Electromagnetic Field (EMF) Meter/
Three-axis detector with data logging function / Available with two external sensors (for low and high frequencies)

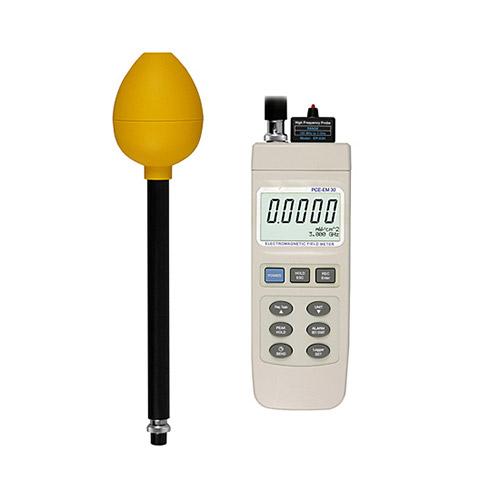

The PCE-EM 30 is a 3-axis digital portable electromagnetic field meter that detects radiation emitted by electronic devices and electrical installations. The three-axis EMF meter provides greater accuracy than single-axis models.
- EMF measurement range: 0 to 199.99 V/m, 0 to 99.999 W/m², 0 to 9.9999 mW/cm²
- EMF Bandwidth: 100 kHz to 3 GHz
- It measures EMF in 5G mobile Low-Band and High-Band
- Two external sensors are available (for low and high frequencies)
- It has a large, easy-to-read LCD screen
- Adjustable alarm value
Note: USB data cable included. VT-204-SW software is required to transfer data to a PC
Package contents
1 x PCE-EM 30 Electromagnetic Field (EMF) Meter
2 x External sensors
2 x Frequency Range Contacts
1 x 9V battery
1 x Carrying case
1 x User Manual
