PCE-PHD 1 - Water Quality Meter pH, Conductivity, TDS, Salinity, Oxygen, Temperature
| pH measurement | |
| Measurement range |
0 ... 14.0 pH |
| Reading | 0.01 pH |
| Accuracy | ±0.02 pH + 2 digits |
| Calibration | 3 grades (pH 4, pH 7 and pH 10) |
| Temperature compensation | Automatic with additional temperature sensor (0 ... 60 ºC / 32 ºF ... 140 ºF) or manual (0 ... 100 ºC / 32 ºF ... 212 ºF) |
| Redox measurement (optional) |
|
| Measurement range | 1999 ... 0 ... 1999 mV |
| Reading |
1 mV |
| Accuracy | ± 0.5 % + 2 digits |
| Measurement conductivity | |
| Measurement range | 0 ... 200 µS/cm, 0.2 ... 2.0 mS/cm, 2 ... 20.0 mS/cm, 20 ... 200 mS/cm |
| Reading | 0.01 µS/cm, 0.001 mS/cm, 0.01 mS/cm, 0.1 mS/cm |
| Accuracy | ±2 % of measuring range + 1 digit |
| Calibration | 1413 mS/cm |
| Temperature compensation | Automatic (0 ... 60 ºC / 32 ºF ... 140 ºF) |
|
Measurement total dissolved solids (TDS) |
|
| Measurement range | 0 ... 132 ppm, 132 ... 1320 ppm, 1320 ... 13200 ppm, 13200 ... 132000 ppm |
| Reading | 0.1 ppm, 1 ppm, 10 ppm, 100 ppm |
| Accuracy | ±2 % of measuring range + 1 digit |
| Temperature compensation | Automatic (0 ... 60 ºC / 32 ºF ... 140 ºF) |
| Measurement salt content | |
| Measurement range | 0 ... 12 % (of weight) |
| Reading | 0.1% |
| Accuracy | ±0.5 % of the measuring range |
| Temperature compensation | Automatic (0 ... 60 ºC / 32 ºF ... 140 ºF) |
| Measurement oxygen (optional) | |
| Measurement range | 0 ... 20 mg/l (in water), 0 ... 100 % (in air), 0 ... 50 ºC / 32 ºF ... 122 ºF |
| Reading | 0.1 mg/l, 0.1 %, 0.1 ºC |
| Accuracy | ±0.4 mg/l, ±0.7 %, ±0.8 ºC |
| Calibration | Airborne |
| Temperature compensation | Automatic (0 ... 50 ºC / 32 ºF ... 122 ºF) |
| Measurement temperature | |
| Measurement range | 0 ... 60 ºC / 32 ºF ... 140 ºF |
| Reading | 0.1 ºC |
| Accuracy | ±0.8ºC |
| Temperature compensation | Automatic (0 ... 60 ºC / 32 ºF ... 140 ºF) |
| General characteristics | |
| Measurement percentage |
1 second to 8 hours 59 minutes 59 seconds |
| Screen |
LCD 52 x 38 mm / 2 x 1.5" |
| Memory | SD card up to 16GB (2GB card included) |
| Exit | RS-232 |
| Software | Optional |
| Power supply | 6 x 1.5 V AA batteries (optional power supply) |
| Operating conditions | 0 ... +50 ºC / < 85 % RH |
| Dimensions | 177 x 68 x 45mm / 7.0 x 2.7 x 1.8" |
| Weight | 490g / 1.1lbs |
PCE-PHD 1 Water quality meter /
pH, redox, conductivity, salinity, TDS, oxygen and temperature value /
SD card memory (1 ... 16 GB) / Save as Excel file / Large, easy-to-read display / RS-232 output and optional software for direct transfer to PC
pH, redox, conductivity, salinity, TDS, oxygen and temperature value /
SD card memory (1 ... 16 GB) / Save as Excel file / Large, easy-to-read display / RS-232 output and optional software for direct transfer to PC
The water quality meter is a portable, easy-to-use, multi-functional device capable of measuring pH, redox, conductivity, salt and oxygen content, total dissolved solids (TDS) and water temperature.
Three-point calibration and automatic temperature compensation guarantee a high level of accuracy even with variable temperature measurements. This meter is supplied with both a pH electrode and a conductivity electrode. It works as a data logger (Data logger) in real time. Data is stored directly on the supplied SD memory card in Microsoft Excel format or can be transferred to a PC via RS-232. Therefore, no additional software is required for data evaluation and processing.
- Data logger (Data logger) in real time
- SD memory card (1 ... 16 GB)
- Saved data is saved directly as an Excel file on the SD card (for evaluation, no software required)
- RS -232 for online data transfer
- Measures pH value, redox, conductivity, salt content, TDS, oxygen and temperature
- High accuracy
- Large LC screen
- Adjustable measurement rate
- Easy to use
- Sturdy casing
- Includes pH electrode and conductivity
- Automatic calibration
- Manual or automatic temperature compensation
- BNC plug
- Suitable for laboratory and field measurements
- REDOX and oxygen electrode optionally available

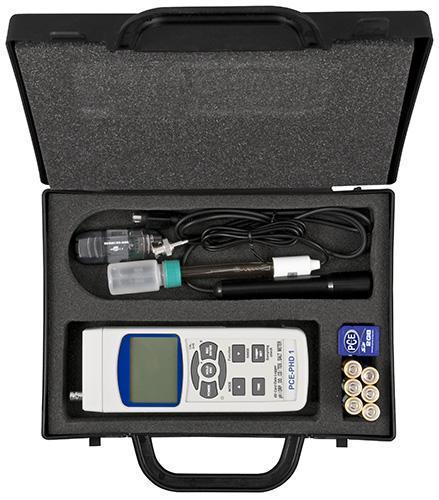

Package contents
1 x PCE-PHD 1 Water Analysis Meter
1 x The electrode pH
1 x The electrode conductivity
1 x SD memory card
6 x 1.5V AA batteries
1 x User Manual
1 x The electrode pH
1 x The electrode conductivity
1 x SD memory card
6 x 1.5V AA batteries
1 x User Manual
