PCE-WMM 100 - CO2 - O2 Gas Detector
| Measurement function | CO2 |
| Measurement range | 0 .... 50000 ppm |
|
Reading |
<10000 ppm: 10 ppm |
| >10001 ppm: 100 ppm | |
| Accuracy | ± 100 ppm / 5 % of the measured value |
| Measurement function | O2 |
| Measurement range | O2: 0 ... 30 % |
|
Reading |
0.1% |
| Accuracy | < 3 % of the measured value |
| Measurement function | Temperature |
| Measurement range | 0 ... 50 °C / 32 ... 122 °F |
|
Reading |
0.1 °C |
| Accuracy | ± 1 °C |
| Repeatability | CO2: ±20 ppm at 400 ppm |
| O2: < ±1 % | |
| Temperature dependence | ± 0.3 % of measured value / °C |
| (at 25 °C) | ± 2 ppm / °C |
| (higher price applies) | |
| Dependence on pressure | 0.13 % of the measured value / mmHg |
| Response time | CO2: T90 < 60s |
| O2: T90 < 30s | |
| Temperature: 20 ... 30 m | |
| Alarm 1 | CO2: 5000 ppm, 1 %, 1.5 %, 2 % |
| O2: 18 %, 18.5 %, 19 %, 19.5 %, 20 % | |
| Alarm 2 | CO2: 1.5%, 2%, 2.5%, 3%, 3.5%, 4% |
| O2: 16 %, 16.5 %, 17 %, 17.5 %, 18 % | |
| Alarm volume | 80 db / 0.1 m |
| Warm-up time | < 60 s at an ambient temperature of 22 °C |
| Power supply | Current transformer 100 ... 240 V AC / 6 V DC / 0.5 A |
| Analog output | 2 x 4 ... 20mA |
| Load | <150 Ohms |
| Relay | Maximum 2 A / 30 V DC / 250 V AC |
|
Operating conditions |
0 ... 40 °C / 32 ... 104 °F / max. 95 % rH |
| Storage conditions | -20 ... 60 °C / -4 ... 140 °F / max. 95% rH |
| Sealing class | Main unit: IP54 |
| Remote Unit:- | |
| Dimensions | Main unit: 170 x 63 x 26 mm / 6.6 x 2.4 x 1.0" |
| Remote unit: 80 x 35.7 x 10 mm / 3.1 x 1.4 x 0.3" | |
| Weight | Main unit: 1200g with cable |
| Remote unit: 120g / 4.2oz |
Gas detector PCE-WMM 100
Carbon dioxide and oxygen warning device / Adjustable alarms / 4-digit LC display / Consists of main and remote unit / Relay contacts / Analog output

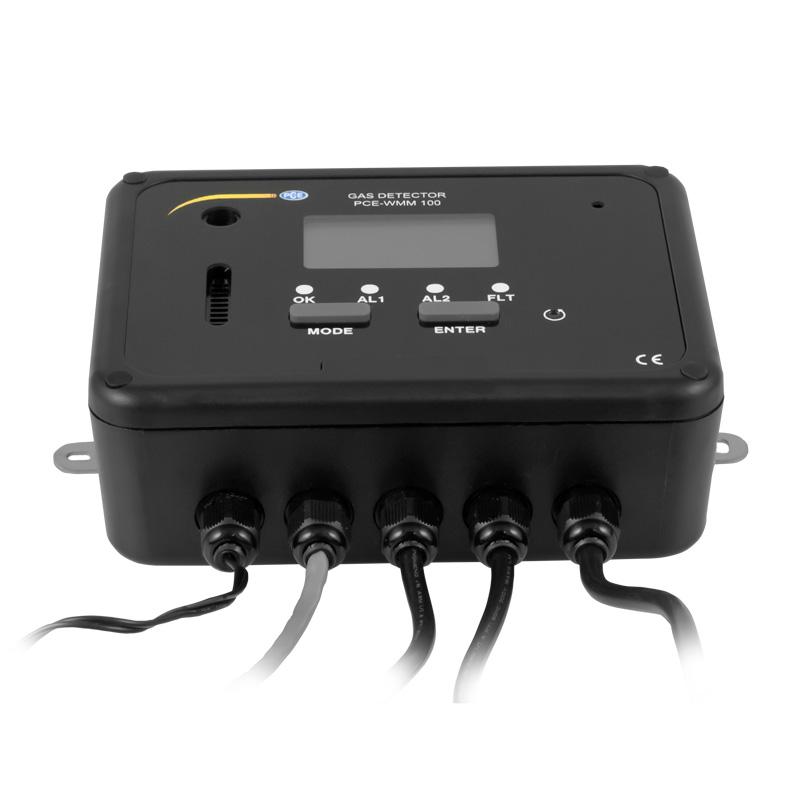

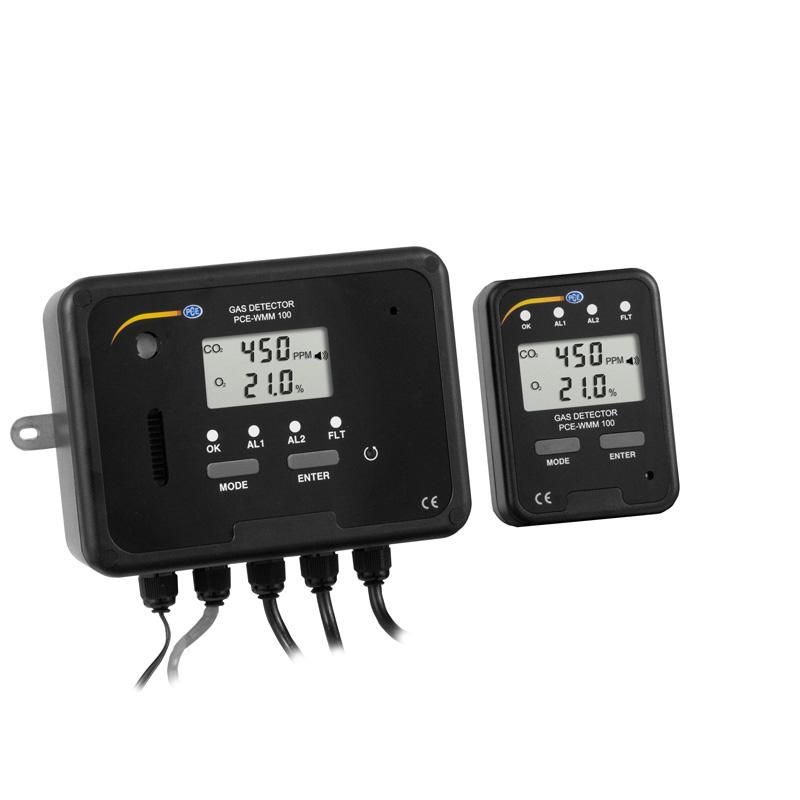

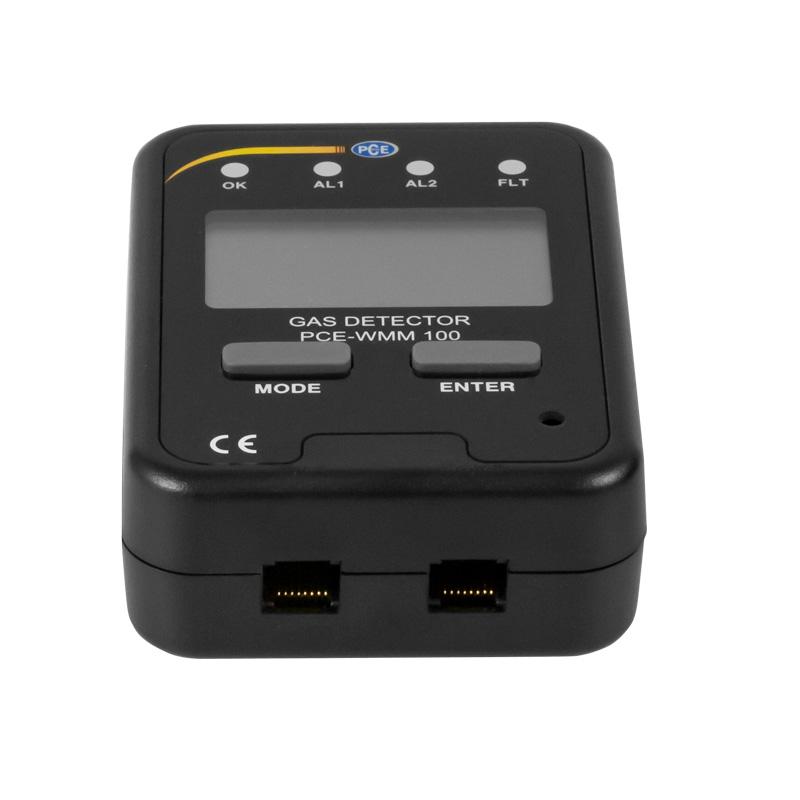

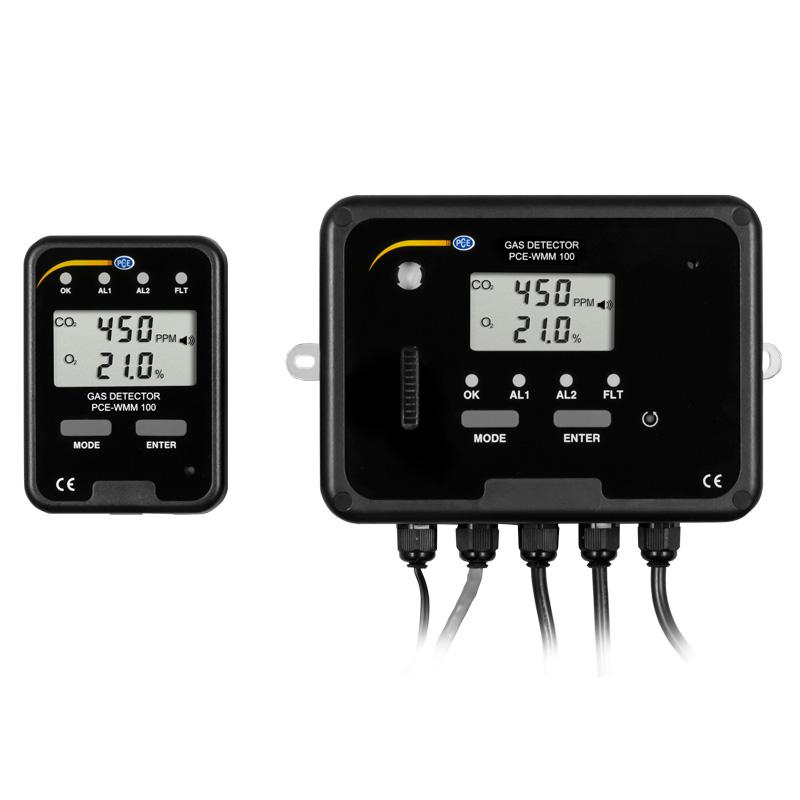

The PCE-WMM 100 CO2 detector consists of a main unit and a remote unit. It is used to measure carbon dioxide and oxygen at a fixed location. Therefore, it warns of a concentration of odorless CO2 and also of a low oxygen content of the air. The measured values are displayed on an LCD screen. The detection unit has two relays that can be connected to lights for visual alarm indication or speakers. In addition, it has a built-in, acoustic alarm, which, depending on the concentration of the gas, emits an 80 db sound signal.
The warning device is used wherever CO2 may be released. This can be in warehouses, breweries, wine cellars or restaurants. The main unit is partially waterproof with a waterproof rating of IP54. Four LED indicators provide information about system status.
- CO2 and O2 sensor
- Main and remote unit
- Alarm relay
- 4 ... 20 mA analog output
- Audible alarm
- Built-in temperature measurement

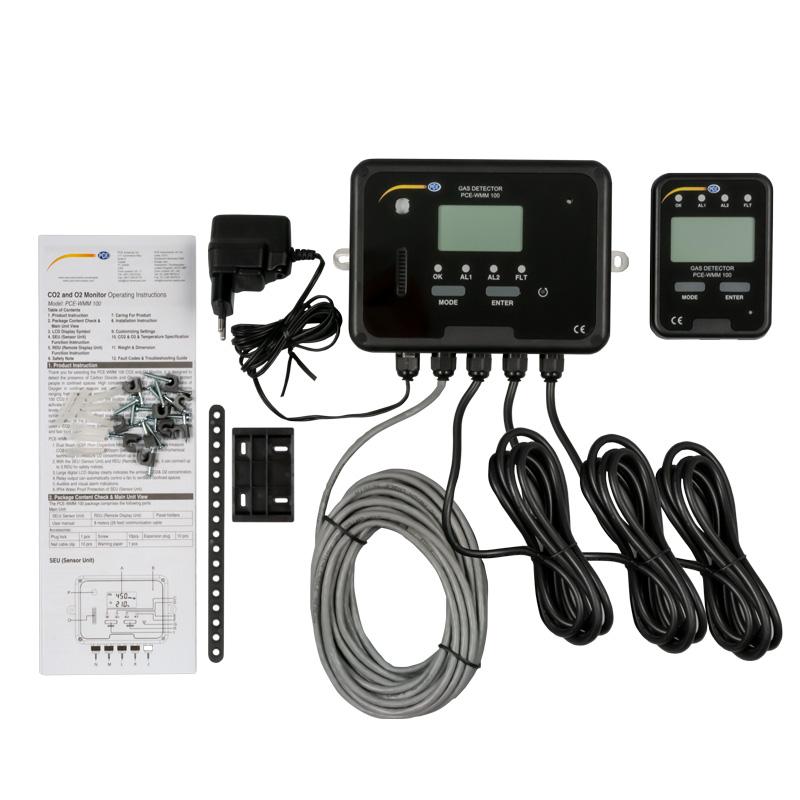

Package contents
1 x PCE-WMM 100 Gas Detector
1 x Remote unit
1 x 8m connection cable
1 x Power Adapter
1 x Mounting kit
1 x User Manual
1 x Remote unit
1 x 8m connection cable
1 x Power Adapter
1 x Mounting kit
1 x User Manual
