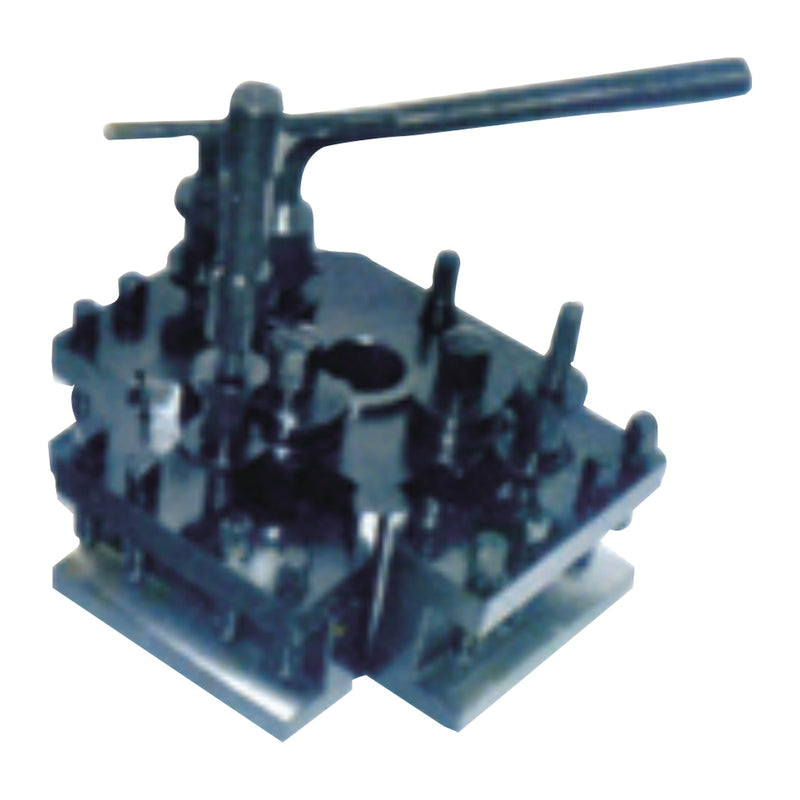

Quick Change Tool Post Set 5 pcs (ITALY - M)

Type: Quick change lathe tool post system, Italy style
Size: M
Lathe swing: 180 - 250 mm
Tool post centre height (501-M): 120 mm
Tool height adjustment range (H): 24 - 34 mm
Max square tool height (T max): 16 mm
Max round tool diameter (Φmax): Ø14 mm
Clamping bore (AH7): Ø18 mm

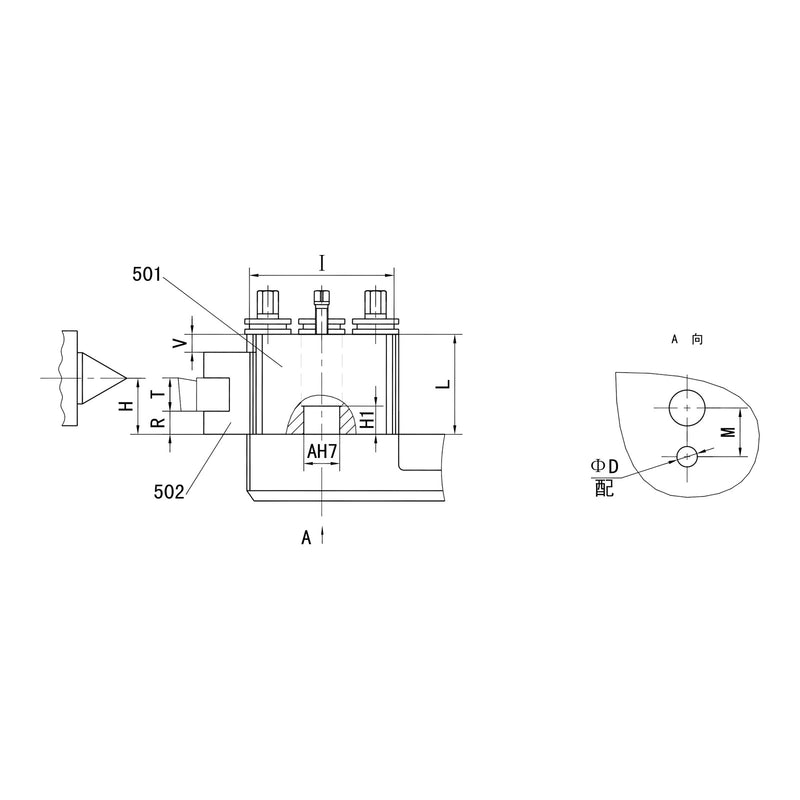

Further dimensions (see drawing): I 57.7 · L 45 · z 56 · R 8 · M 27 · H1 18 · ΦD 7 mm
Weight: 2.89 kg
Set contents (5 pieces): 1 × 501-M tool post, 3 × 502-M tool holder for square tools, 1 × 503-M tool holder with V-seat for round tools
Compatible Morse taper holder (504-M, not included): MT1

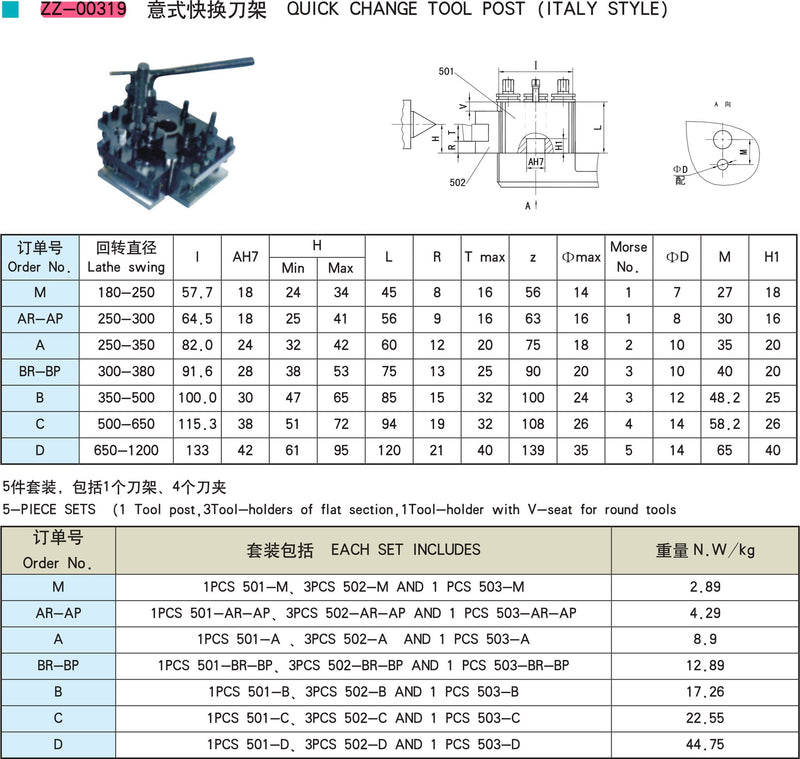

PDFDatasheet

Same-day dispatchfor orders placed by 15:00

Free shippingon orders over €80 (incl. VAT)

Availability & price

Code	Centre Height (mm)	Lathe Swing Ø (mm)	Includes	Availability	excl. VAT	incl. VAT	Cart
ZZ-00319 M	120	180-250	1x 501-M + 3x 502-M + 1x 503-M	1 in stock	€266,00	€329,84	0

Type: Quick change lathe tool post system, Italy style
Size: M
Lathe swing: 180 - 250 mm
Tool post centre height (501-M): 120 mm
Tool height adjustment range (H): 24 - 34 mm
Max square tool height (T max): 16 mm
Max round tool diameter (Φmax): Ø14 mm
Clamping bore (AH7): Ø18 mm
Further dimensions (see drawing): I 57.7 · L 45 · z 56 · R 8 · M 27 · H1 18 · ΦD 7 mm
Weight: 2.89 kg
Set contents (5 pieces): 1 × 501-M tool post, 3 × 502-M tool holder for square tools, 1 × 503-M tool holder with V-seat for round tools
Compatible Morse taper holder (504-M, not included): MT1
