Electrical Instruments

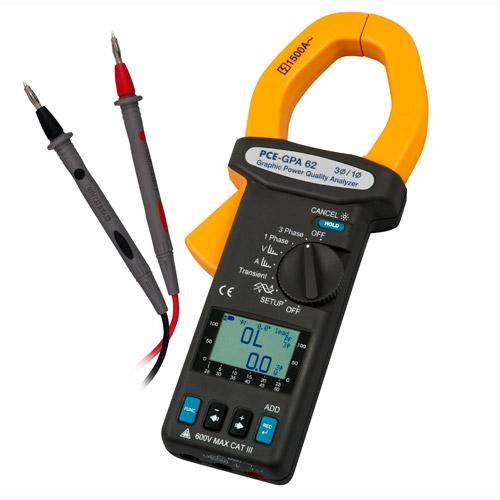

PCE Instruments PCE-GPA 62 clamp multimeter datalogger with yellow jaw, LCD display and test leads

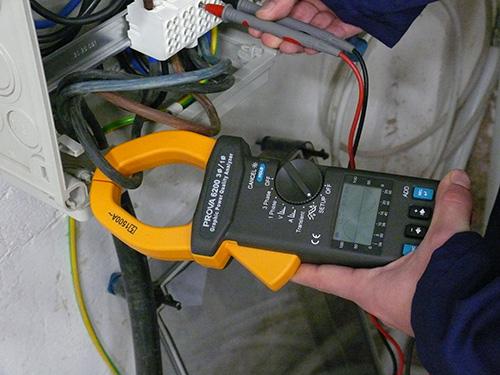

PCE Instruments PCE-GPA 62 clamp multimeter in use in an electrical panel, with yellow jaw and LCD display

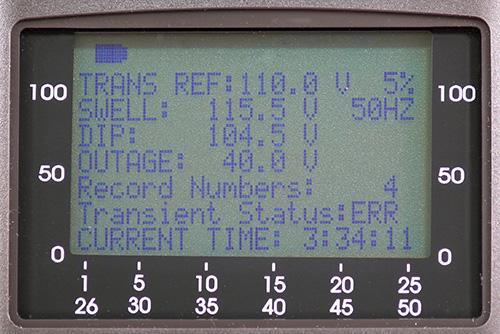

LCD display of the PCE Instruments PCE-GPA 62 showing voltage, 50Hz frequency and Record Number 4

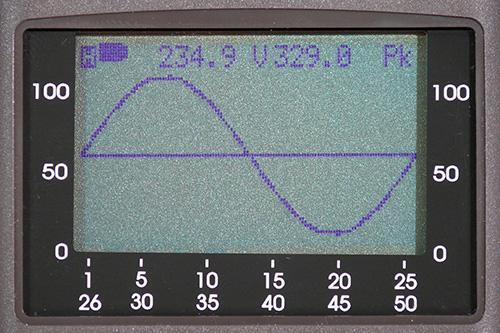

PCE Instruments PCE-GPA 62 clamp meter/multimeter display with waveform graph and measurement readings
PCE Instruments PCE-GPA 62 software screenshot showing power, voltage and current on digital gauges
PCE Instruments PCE-GPA 62 clamp meter/multimeter with rotary switch and HOLD/CANCEL buttons, black and yellow
PCE Instruments PCE-GPA 62 clamp multimeter datalogger with yellow jaw, LCD display and test leads
PCE Instruments PCE-GPA 62 clamp multimeter in use in an electrical panel, with yellow jaw and LCD display
LCD display of the PCE Instruments PCE-GPA 62 showing voltage, 50Hz frequency and Record Number 4
PCE Instruments PCE-GPA 62 clamp meter/multimeter display with waveform graph and measurement readings
PCE Instruments PCE-GPA 62 software screenshot showing power, voltage and current on digital gauges
PCE Instruments PCE-GPA 62 clamp meter/multimeter with rotary switch and HOLD/CANCEL buttons, black and yellow

Availability & price

Code Availability excl. VATincl. VAT Certificate Cart
PCE-GPA 62
€1.043,00
€1.293,32
0
  • Three-phase power quality analyser
  • True RMS to 1500 A
  • Harmonics up to 50th
  • 50,000-reading data logger
  • USB and PC software
  • Optional ISO calibration

The PCE-GPA 62 is a three-phase clamp meter and power quality analyser. It measures active, reactive and apparent power, power factor, phase angle, energy, voltage and current, plus peaks and harmonics up to the 50th, in single-phase or three-phase networks.

Values are shown in real time on the backlit graphic display. The meter records up to 50,000 readings and sends them to a PC over USB for analysis with the supplied software. Maximum clamp opening is 55 mm / 2.2 in and the meter is rated CAT III 600 V.

Highlights

  • Single- or three-phase measurement in symmetrical networks
  • True RMS voltage 4.0 ... 600.0 V
  • True RMS current 4.0 ... 1500.0 A
  • Harmonics to 50th, THD and peak values
  • Graphic LCD 128 x 64 with backlight
  • Memory for 50,000 readings, USB interface
  • Max. clamp opening 55 mm / 2.2 in
  • Auto shut-off after 15 min, can be disabled
Voltage measurement4.0 ... 600.0 V RMS value ± 0.5% of the measured value ± 5 digits / 0.1 V
Voltage peaks (> 10V)50 Hz - 60 Hz / ± 5% ± 50 digits
Current measurements4.0 ... 1500.0 A real ± 1% V. of the measured value ± 5 digits / 0.01 A
Current peaks (> 20A)50 Hz - 60 Hz / ± 5% ± 50 digits
Active power P10 W ... 9999 kW in 5 measurement ranges
± 1% of the value + 20 digits (>20 V y >20 A)
± 2% of the value + 40 digits (>20 V y >20 A)
0.1 W ... 1 kW according to the measurement range
Apparent power S10 VA ... 9999 kVA in 5 measurement ranges
± 1% of the value + 20 digits (>20 V y >20 A)
± 2% of the value + 40 digits (>20 V y >20 A)
0.1 VA ... 1 kVA according to the measurement range
Reactive power Q10 VAr ... 9999 kVAr in 5 measurements ranges
± 1% of the value + 20 digits (>20 V y >20 A)
± 2% of the value + 40 digits (>20 V y >20 A)
0.1 VAr ... 1 kVAr according to the measurement range
PF power factor0.000 ... 1.000
± 0.04 (>20 V >20 A) / 0,001
± 0.1 (>20 V >20 A) / 0,001
Phase angle-180 ... +180 / ±1 / 0,1
0 ... +360 / ±1 / 0,1
Frequency measurement (U > 50 V)46 ... 65 Hz
±0.3 Hz / 0.1 Hz
Active energy0 ... 999.999 kWh
± 1% of the value + 20 digits
Apparent energy0 ... 999.999 kVAh
± 1% of the value + 20 digits
Reactive energy0 ... 999.999 kVarh
± 1% of the value + 20 digits
Harmonics in the voltage (relative) 50 - 60 Hz > 80 V AC1 - 20 th / ± 2% / 0.1%
21 - 50 th / ± 4% of the value ± 2% / 0.1%
Harmonics in the voltage (absolute) 50 - 60 Hz > 80 V AC1 - 20 th / ± 2% / 0.1%
21 - 50 th / ± 4% of the value ± 0.5% / 0.1%
Harmonics in the current (relative) 50 - 60 Hz > 80 V AC1 - 20 th / ± 2% / 0.1 %
21 - 50 th / ± 4% of the value ± 2% / 0.1 %
Harmonics in the current (absolute) 50 - 60 Hz > 80 V AC1 - 20 th / ± 2% of the value ± 0.4 A / 0.1 A
21 - 50 th / ± 4% of the value ± 0.4 A / 0.1 A
Total harmonic distortion (THD-F) 50 - 60 Hz > 80 V y > 20 A0.0 - 20% / 2% / 0.1%
20.1 - 100% / ± 6% of the value ± 1% / 0.1%
100.1 - 999.9 % / ± 10% of the value ± 1% / 0.1%
Max. clamp opening55 mm / 2.2 in
Range selectionAuto
Overload indication"OL = Overload
Memory50,000 readings
InterfaceUSB
Software and data cableincluded in the delivery. They can be used with
Win 2000, XP, ME
Displaygraphic LCD display, 128 x 64 with backlight
Power supply2x 1.5V AA batteries
Energy consumptionApprox. 10-mA
Dimensions271 x 112 x 46 mm / 10.6 x 4.4 x 1.8 in
Weight650 g / 1.4 lbs with batteries
Operating conditions85% max. R.H. / -10 ... 50°C / 14 ... 122°F
Protection / StandardsCAT III 600 V / EN 61010-2-032
  • 1×Three-Phase Clamp Meter PCE-GPA 62
  • 2×Isolated measuring pins with 2 m / 6.6 ft of cable each
  • 2×Batteries
  • 1×Carrying case
  • 1×USB cable for a PC
  • 1×Software (in English)
  • 1×User's manual
