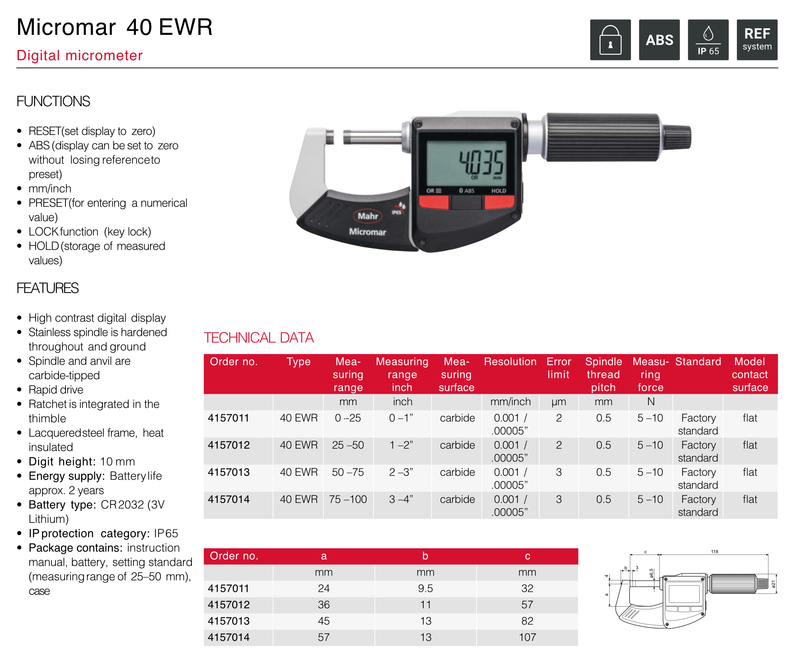

- Type: Micromar 40 EWR, Digital micrometer
- Measuring range: 0-25 mm, 25-50 mm, 50-75 mm, 75-100 mm (or 0-1", 1-2", 2-3", 3-4")
- Resolution: 0.001 mm / 0.00005"
- Error limit: 2-3 μm (depending on the model)
- Measuring surface: Carbide tips
- Spindle thread pitch: 0.5 mm
- Measuring force: 5-10 N
- Digit height: 10 mm
- Power supply: CR2032 battery (3V Lithium)
- Protection class IP: IP65
- Includes: User manual, battery, calibration standard, case
- Model contact surface: Flat

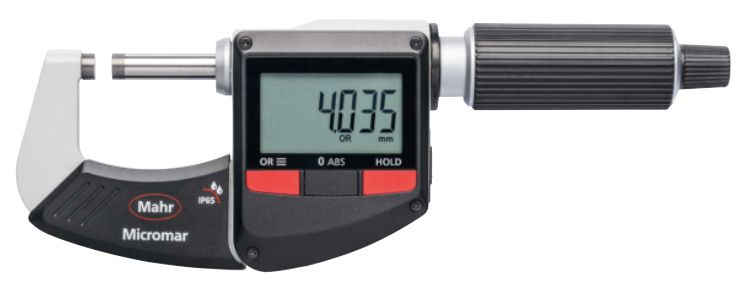

The Micromar 40 EWR is a digital micrometer designed for precise dimensional measurements in industrial applications. It features carbide tips for wear resistance and offers IP65 protection, making it resistant to dust and water. The high-contrast display and zero reset (RESET) capability allow easy and reliable use.
IPXY
-
X = Protection against solid objects & access to hazardous parts
-
Y = Protection against water ingress
| Value | 1st Digit – Solids / Access | 2nd Digit – Water |
|---|---|---|
| 0 | No protection | No protection |
| 1 | Protection against solids ≥50 mm (test probe Ø50 mm) | Vertical falling drops |
| 2 | Protection against solids ≥12.5 mm (test probe Ø12.5 mm) | Drops with tilt up to 15° |
| 3 | Protection against solids ≥2.5 mm (test probe Ø2.5 mm) | Spraying up to 60° |
| 4 | Protection against solids ≥1 mm (test probe Ø1 mm) | Splashing from all directions |
| 5 | Protection against dust (limited ingress without harmful effects) | Water jets (nozzle 6.3 mm) |
| 6 | Complete dust-tightness (dust-tight) | Powerful water jets (nozzle 12.5 mm) |
| 7 | — | Temporary immersion (usually 1 m / 30 min) |
| 8 | — | Continuous immersion (depth & time specified by manufacturer) |
| 9 / 9K | — | High-pressure & high-temperature water jets |
Mahr Factory
The German company Mahr Group, from 1861 to the present day, headquartered in Esslingen, Germany, is synonymous with precision and reliability in the field of metrology. It has established itself worldwide as a specialist in the development and manufacture of mechanical measuring instruments, from calipers, micrometers, portable surface roughness testers and up to fully automated stations for form, contour, and shaft measurement. Mahr’s deep expertise, especially in surface measurements (MarSurf) and cylindricity (MarForm), makes it a leading choice for industries that do not accept compromises in quality. By providing robust solutions both for the metrology laboratory and for the harsh production environment, Mahr ensures process control and compliance with the strictest specifications.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε., is the official representative of Mahr in Greece and we can support the entire range of its catalog, which includes more than 10,000 different product codes.
| SKU | Range | Reading | Availability |
Price
+VAT
|
Certificate |
Cart
Quote
|
|---|---|---|---|---|---|---|
| MA-4157011 | 0-25 mm | 0.001 mm | 5-8 business days |
+VAT
€273,00
|
5-8 business days
|
|
| MA-4157012 | 25-50 mm | 0.001 mm | 5-8 business days |
+VAT
€378,00
|
5-8 business days
|
|
| MA-4157013 | 50-75 mm | 0.001 mm | 5-8 business days |
+VAT
€457,00
|
5-8 business days
|
|
| MA-4157014 | 75-100 mm | 0.001 mm | 5-8 business days |
+VAT
€517,00
|
5-8 business days
|
