SpecificationsDigital height measuring and scribing instrument, robust for the workshopRange 0-350, 0-600 or 0-980 mmResolution 0.01 mmHandwheel fo...

The display unit does not measure on its own: it needs the Millimar P 2004 M inductive probe (code 5323010), sold separately, and a stand or fixtur...

SpecificationsResolution: 0.001 mmSelf-centering measuring head with 3 anvils offset at 120°Fast measurement by lever retraction, in through holes ...

Wireless transfer of readings to a PC requires the i-Stick receiver (code 4102220), sold separately. One receiver per PC serves all Mahr wireless i...

SpecificationsResolution: 0.001 mmSelf-centering measuring head with 3 anvils offset at 120°Measurement with thimble and constant-force ratchet, in...

Wireless transfer of readings to a PC requires the i-Stick receiver (code 4102220), sold separately. One receiver per PC serves all Mahr wireless i...

Type: Micromar 40 EWR, Digital micrometer Measuring range: 0-25 mm, 25-50 mm, 50-75 mm, 75-100 mm (or 0-1", 1-2", 2-3", 3-4") Resolution: 0.001...

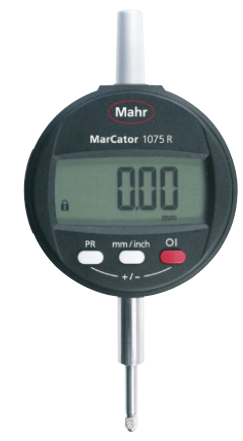

The MarCator 1075 R (Code 4336010) is a digital dial gauge with a measuring range of 12.5 mm (0.5"). It features a Digimatic and USB data interface...

Technical Specifications Measuring range: 0–150 mm / 0–300 mm (depending on model) Resolution: 0.01 mm / 0.0005” Error limit: 0.03 mm or 0.04...

Technical Specifications Type: height gauge Digimar 817 CLT Measuring range: 0-350, 0-600 or 0-1000 mm Application range: 170 – 1170 mm (6.8 – 46....

Technical Specifications Measuring range: 0–150 mm up to 0–300 mm (6" to 12") Resolution: 0.01 mm / 0.0005" Error limit: 0.03 mm or 0.04 mm, ...

Specifications: Measuring Range: 0-150 mm (or 0-6"), 0-200 mm (or 0-8"), 0-300 mm (or 0-12") Resolution: 0.01 mm / 0.0005" Error Limit: 0.03 mm...

Technical Specifications MarSurf PS 10: Type: Portable surface roughness measuring instrument. Parameters: Ra, Rz, Rq, Rmr (compatible with ISO...

Measuring Range: 0 - 25 mm / 0 - 1 inch Resolution: 0.001 mm / 0.00005 inches Error Limit: 2 μm Measuring Faces: Carbide Spindle Thread Pitch...

The probe needs a Millimar display unit to show the reading, e.g. the Millimar C 1200 M (code 5312012), sold separately. M version: compatible with...

SpecificationsPortable surface measuring instrument, to the new standard DIN EN ISO 21920Skidless probe: roughness and waviness (R, W and P paramet...

Wireless transfer of readings to a PC requires the i-Stick receiver (code 4102220), sold separately. One receiver per PC serves all Mahr wireless i...

Wireless transfer of readings to a PC requires the i-Stick receiver (code 4102220), sold separately. One receiver per PC serves all Mahr wireless i...

Wireless transfer of readings to a PC requires the i-Stick receiver (code 4102220), sold separately. One receiver per PC serves all Mahr wireless i...

SpecificationsPortable roughness tester for use in production, to the new surface standard DIN EN ISO 21920Measuring range 350 µm, skidded probe sy...

SpecificationsHighly sensitive analog dial test indicator800 S: dial Ø 28 mm, range ±0.4 mm, resolution 0.01 mm, insert 14.5 mm, ideal for confined...

SpecificationsAnalog dial indicatorMeasuring range 10 mmResolution 0.01 mmHigh-contrast dial face

SpecificationsDigital height gauge for 1D measurementsRange 0-350 or 0-600 mmError limit (2.0 + L/400) µm, L in mmLarge function keys
