Precision Scales

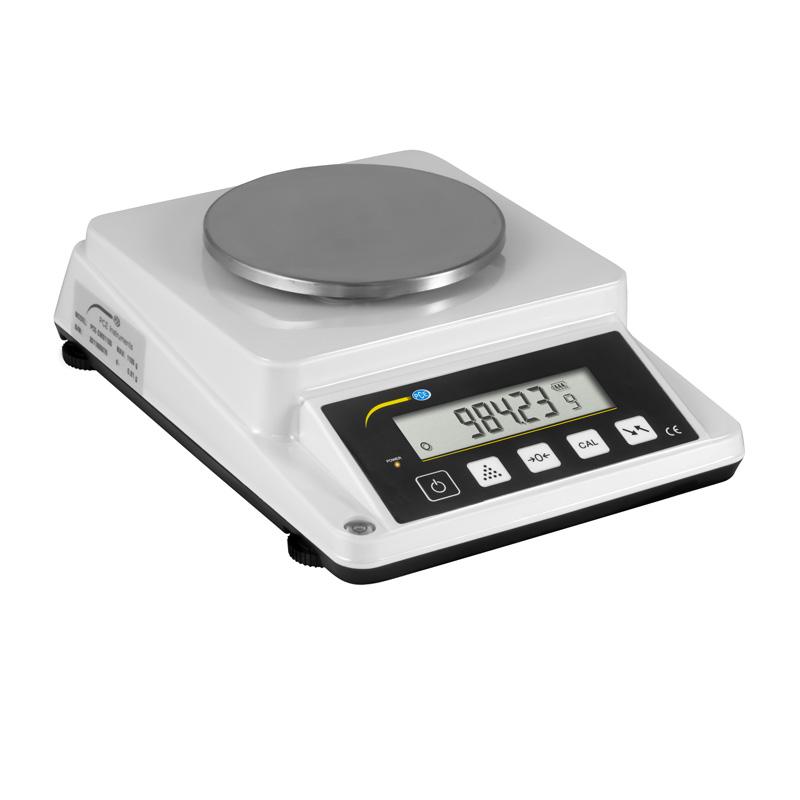

PCE Instruments PCE-DMS 1100 paper scale with round stainless steel platform and digital LCD display

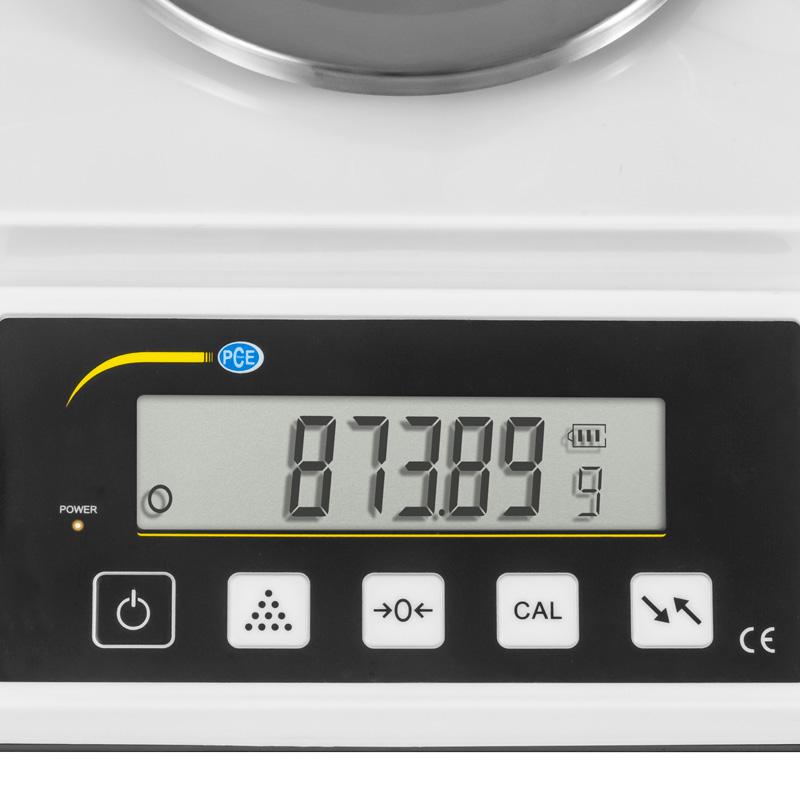

Display and buttons of PCE Instruments PCE-DMS 1100 paper scale with digital readout and CAL button

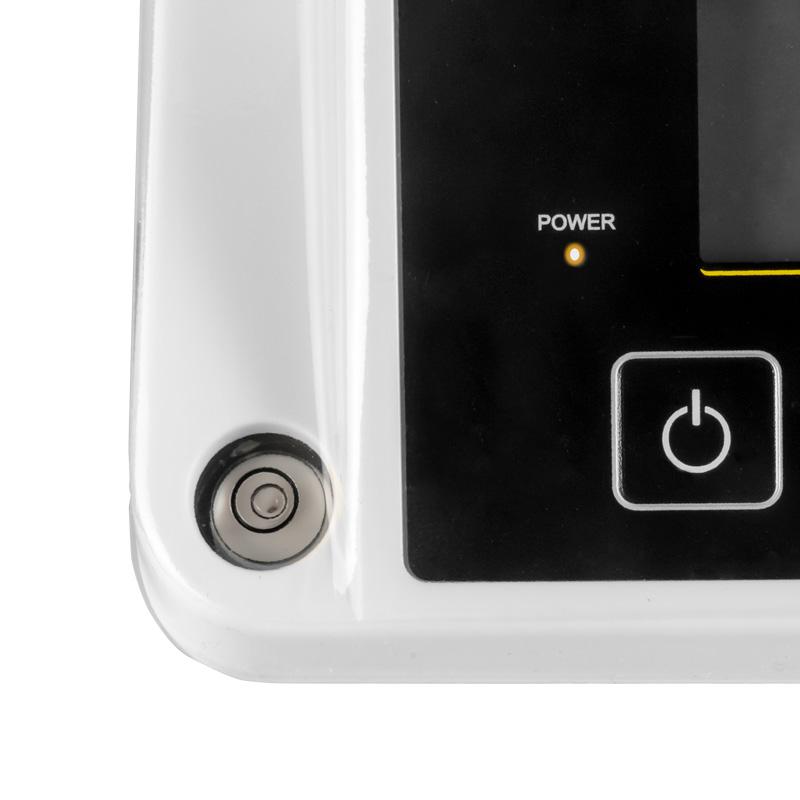

Detail of PCE Instruments PCE-DMS 1100 paper scale with on/off button, POWER indicator and spirit level in the corner

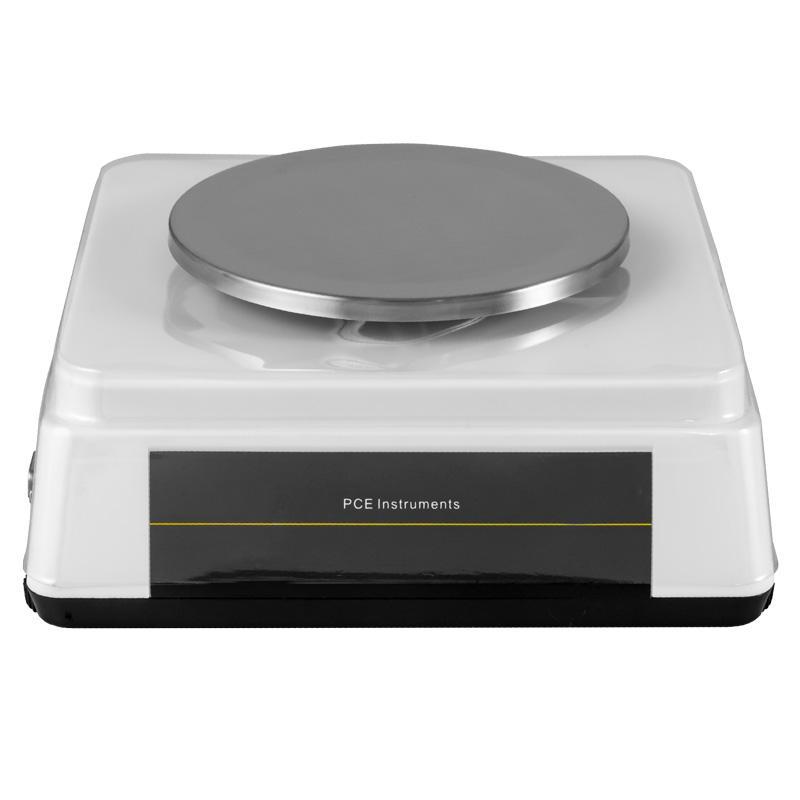

PCE Instruments PCE-DMS 1100 paper scale with round stainless steel platform and white base with front display

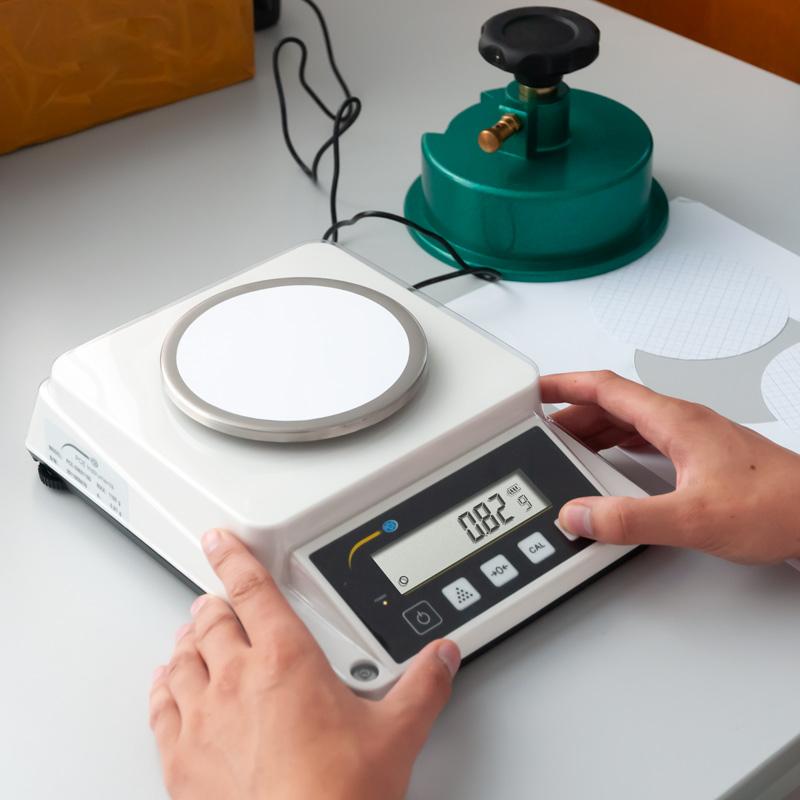

PCE Instruments PCE-DMS 1100 paper scale with round platform and digital display, in use on a workbench

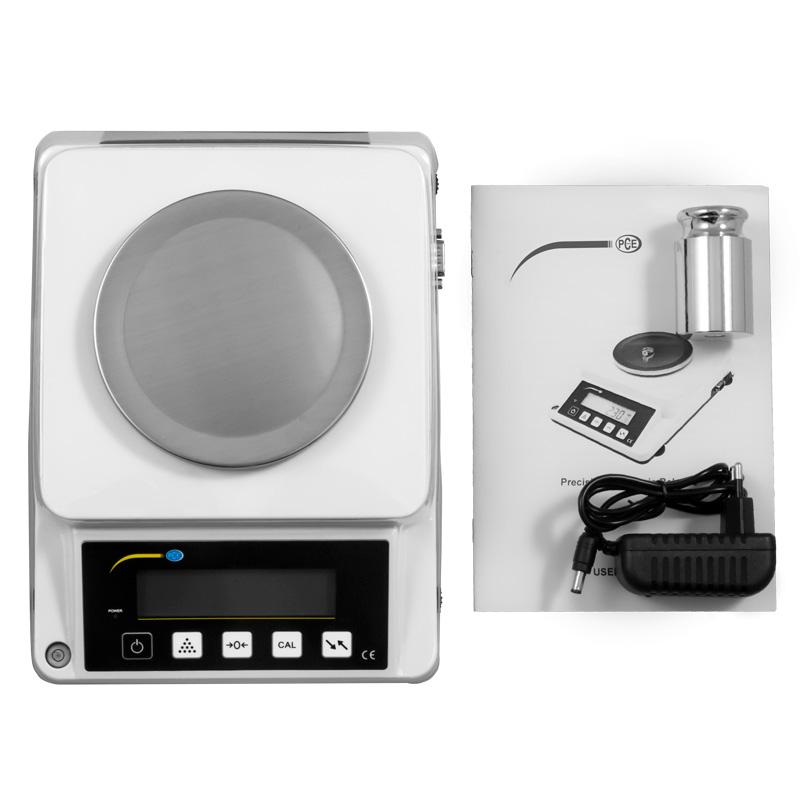

PCE Instruments PCE-DMS 1100 paper scale with stainless steel platform, display and power adapter/calibration weight
PCE Instruments PCE-DMS 1100 paper scale with round stainless steel platform and digital LCD display
Display and buttons of PCE Instruments PCE-DMS 1100 paper scale with digital readout and CAL button
Detail of PCE Instruments PCE-DMS 1100 paper scale with on/off button, POWER indicator and spirit level in the corner
PCE Instruments PCE-DMS 1100 paper scale with round stainless steel platform and white base with front display
PCE Instruments PCE-DMS 1100 paper scale with round platform and digital display, in use on a workbench
PCE Instruments PCE-DMS 1100 paper scale with stainless steel platform, display and power adapter/calibration weight

Availability & price

Code Range (g/m²) Graduation (g/m²) Availability excl. VATincl. VAT Certificate Cart
PCE-DMS 1100 110.000 1
€424,00
€525,76
0

= Express from Europe: at our premises in 1-2 working days, from €35 + VAT Express from Europe, from €35 + VAT

Express from Europe

At our premises in 1-2 working days if you place the order by 13:00
Cost depending on weight from €35 + VAT

If it takes more than 2 working days, we refund the cost.

Contact us

info@organametrisis.gr 210 2231624

Mon–Fri 08:30–18:00

Description

  • Direct readout in g/m²
  • Weighing range 0 … 1100 g
  • Resolution 0.01 g
  • RS-232 interface for PC
  • Battery powered

The PCE-DMS 1100 is a paper scale for measuring basis weight. It weighs up to 1100 g with a resolution of 0.01 g and shows the result directly in g/m². Use it to determine the grammage of paper, cardboard or textiles.

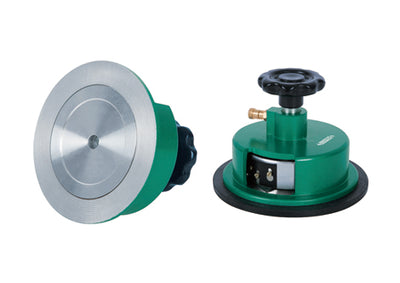

The RS-232 interface transfers the measured data to a PC. The included power supply allows stationary use; 3 x 1.5V AA batteries allow mobile use. A piece counting function is also built in. An optional paper sample cutter ensures the same sample size for every basis weight determination.

Highlights

  • Direct readout in g/m²
  • Up to 1100 g, 0.01 g resolution
  • Backlit display
  • RS-232 interface for PC data transfer
  • Piece counting function
  • Mains adapter or 3 x 1.5V AA batteries
  • Spirit level for levelling
  • For paper, cardboard and textiles

Specifications

Measuring range0 ... 1100 g / 0 ... 110,000 g / m²
Resolution0.01 g / 1 g / m²
Repeatability± 0.02 g
Linearity± 0.03 g
Stabilization period<3 s
Operating conditions17.5 ... 22.5°C / 63.5 ... 72.5°F, 85% rh non-condensing
InterfaceSerial RS232
Power supply battery3 x 1.5V AA
Power supply power supplyPrimary: 100 ... 240 V, 50/60 Hz
Secondary: 6V, 500-mA
Dimensions of the support surface270 x 200 x 80 mm / 10.6 x 7.9 x 3.1
Weight2 kg / 4.4

Package Contents

  • 1×Paper scale PCE-DMS 1100
  • 1×Test weight
  • 1×Power supply
  • 1×User manual

Technical Documents 2

Datasheet Technical datasheet Manual User manual
