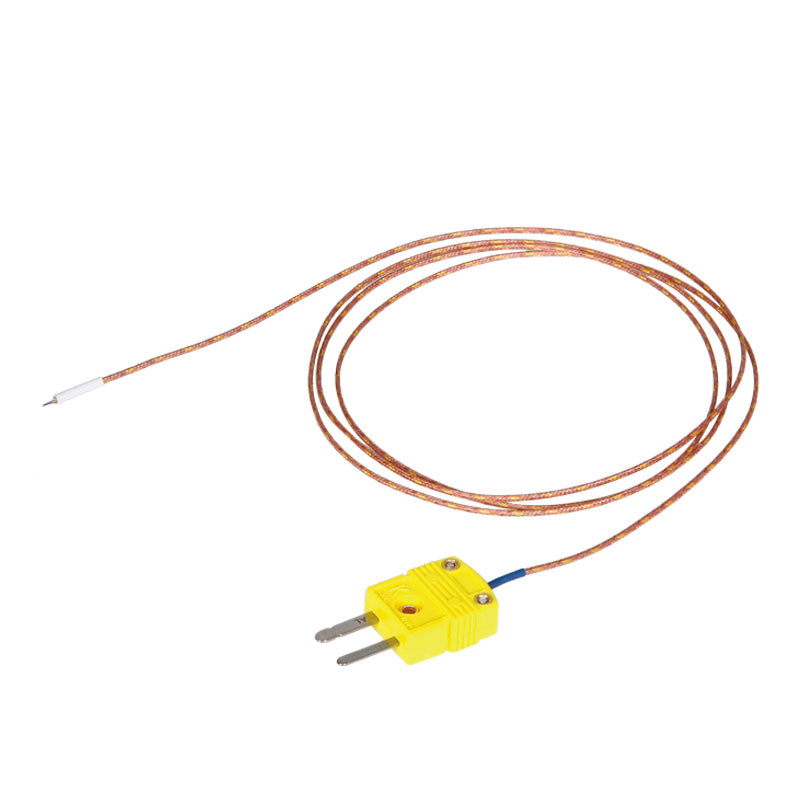

K-Type Glass Fiber Thermocouple -40~480°C
- Thermocouple type: K
- Wire material: Ni-Cr / Ni-Al
- Insulation material: glass fiber
- Temperature range: -40°C ~ 480°C
- Accuracy: ±1.5°C or 0.004·|t|
- Wire diameter: 0.5 mm (AWG 24), 0.255 mm (AWG 30) or 0.127 mm (AWG 36)
- Outer dimensions: 1.3 × 2.1 mm, 0.9 × 1.3 mm or 0.8 × 1.1 mm respectively
- Connection: plug
- Available lead lengths: 0.5, 1, 2, 3 and 5 m
Same-day dispatchfor orders placed by 15:00
Free shippingon orders over €80 (incl. VAT)
Availability & price
15 codes
| Code | Range (°C) | Wire diameter (mm) | Length (m) | Availability | excl. VAT | incl. VAT | Cart |
|---|---|---|---|---|---|---|---|
| 0703-GKA36W1L1 | 480 | 0.127 | 0.5 | On Order |
€15,80
|
€19,59
|
|
| 0703-GKA36W1L2 | 480 | 0.127 | 1 | On Order |
€19,20
|
€23,81
|
|
| 0703-GKA36W1L3 | 480 | 0.127 | 2 | On Order |
€22,00
|
€27,28
|
|
| 0703-GKA36W1L4 | 480 | 0.127 | 3 | On Order |
€28,10
|
€34,84
|
|
| 0703-GKA36W1L5 | 480 | 0.127 | 5 | On Order |
€40,20
|
€49,85
|
|
| 0703-GKA30W1L1 | 480 | 0.255 | 0.5 | On Order |
€15,80
|
€19,59
|
|
| 0703-GKA30W1L2 | 480 | 0.255 | 1 | On Order |
€19,20
|
€23,81
|
|
| 0703-GKA30W1L3 | 480 | 0.255 | 2 | On Order |
€22,00
|
€27,28
|
|
| 0703-GKA30W1L4 | 480 | 0.255 | 3 | On Order |
€28,10
|
€34,84
|
|
| 0703-GKA30W1L5 | 480 | 0.255 | 5 | On Order |
€40,20
|
€49,85
|
|
| 0703-GKA24W1L1 | 480 | 0.5 | 0.5 | On Order |
€17,50
|
€21,70
|
|
| 0703-GKA24W1L2 | 480 | 0.5 | 1 | On Order |
€20,70
|
€25,67
|
|
| 0703-GKA24W1L3 | 480 | 0.5 | 2 | On Order |
€23,30
|
€28,89
|
|
| 0703-GKA24W1L4 | 480 | 0.5 | 3 | On Order |
€29,40
|
€36,46
|
|
| 0703-GKA24W1L5 | 480 | 0.5 | 5 | On Order |
€41,50
|
€51,46
|

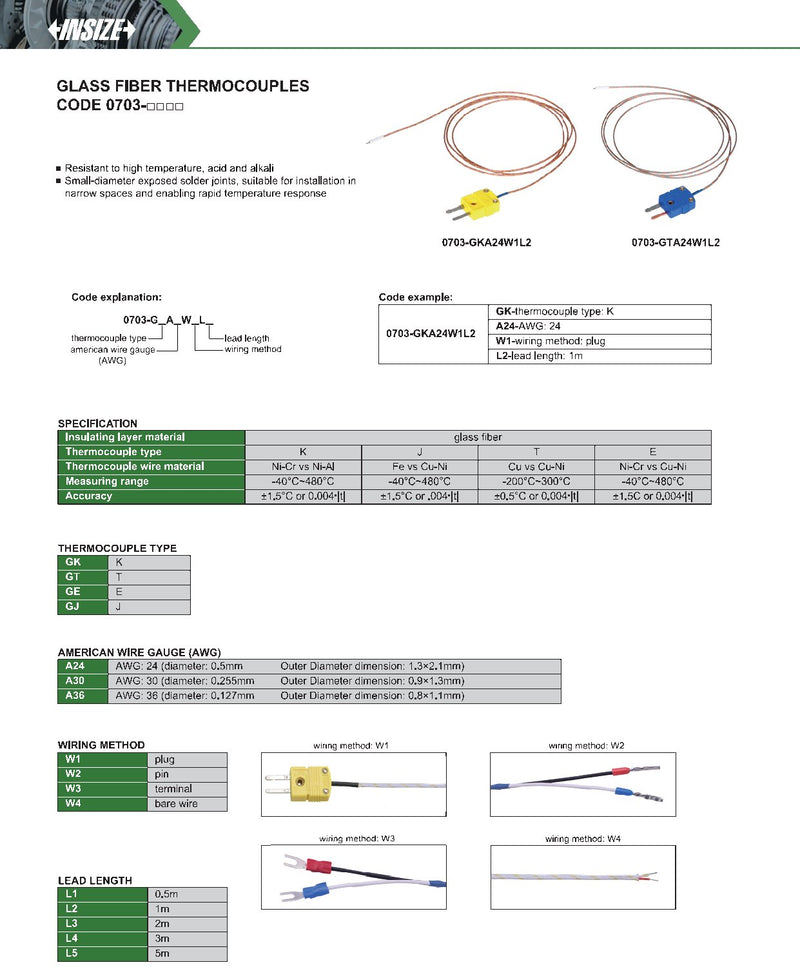

Specifications
- Thermocouple type: K
- Wire material: Ni-Cr / Ni-Al
- Insulation material: glass fiber
- Temperature range: -40°C ~ 480°C
- Accuracy: ±1.5°C or 0.004·|t|
- Wire diameter: 0.5 mm (AWG 24), 0.255 mm (AWG 30) or 0.127 mm (AWG 36)
- Outer dimensions: 1.3 × 2.1 mm, 0.9 × 1.3 mm or 0.8 × 1.1 mm respectively
- Connection: plug
- Available lead lengths: 0.5, 1, 2, 3 and 5 m
Description
Type K thermocouple with glass fiber insulation, resistant to high temperatures as well as to acids and alkalis. It covers a range from -40°C to 480°C, considerably higher than the equivalent Teflon-insulated thermocouples.
The small-diameter exposed solder joints allow installation in narrow spaces and a very fast response to temperature changes. Available in three wire gauges: the thinner the wire, the lower the thermal mass and the faster the response.
The series is also available in J, T and E types on request, and with other connection methods (pin, terminal or bare wire).
- Measurements in furnaces and heat treatment up to 480°C
- Chemical environments with acids or alkalis
- Installation in tight spots needing a fast response
