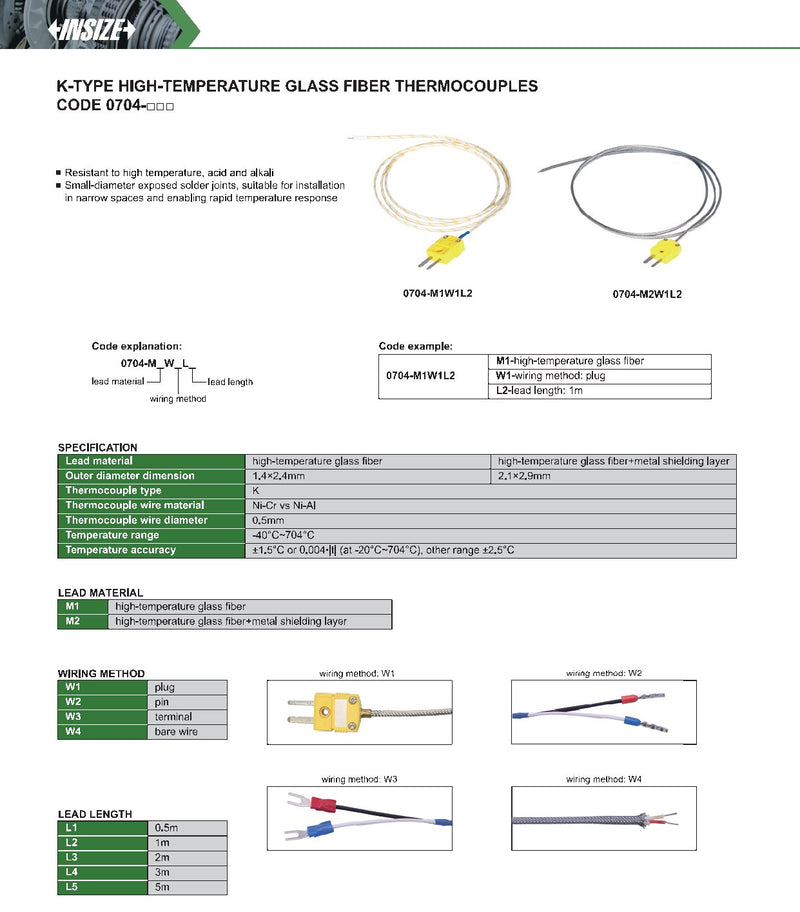

Specifications
- Thermocouple type: K
- Wire material: Ni-Cr / Ni-Al
- Insulation material: high-temperature glass fiber, with or without metal shielding
- Temperature range: -40°C ~ 704°C
- Accuracy: ±1.5°C or 0.004·|t| (-20°C ~ 704°C), outside that range ±2.5°C
- Wire diameter: 0.5 mm
- Outer dimensions: 1.4 × 2.4 mm unshielded, 2.1 × 2.9 mm shielded
- Connection: plug
- Available lead lengths: 0.5, 1, 2, 3 and 5 m
Description

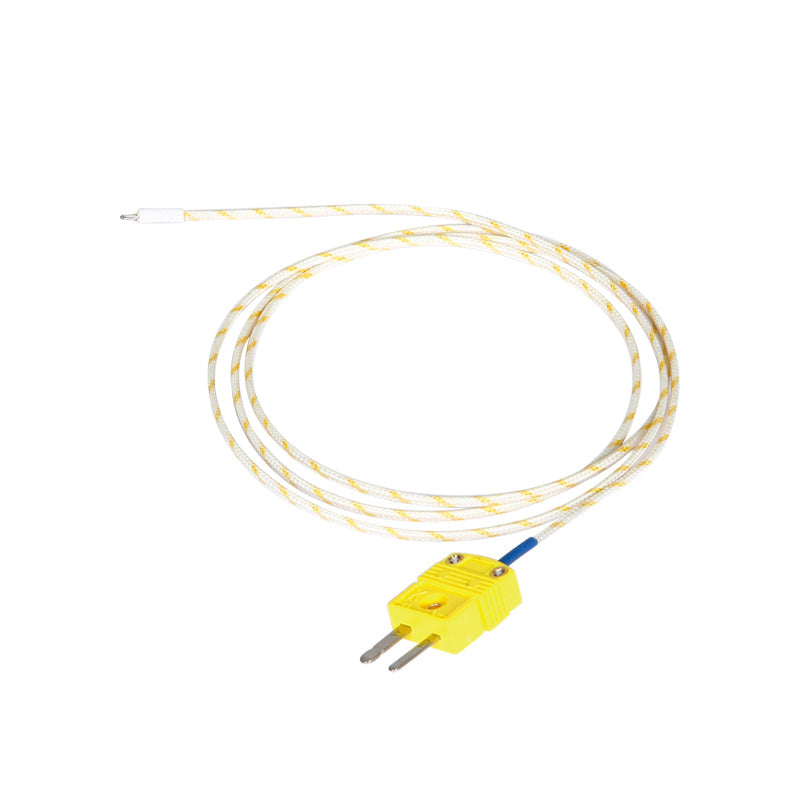

Type K thermocouple with high-temperature glass fiber insulation, covering -40°C to 704°C. It fills the gap between the 480°C glass fiber thermocouples and the 1000°C ceramic ones, and resists acids and alkalis.
Available in two versions: plain glass fiber insulation, or with an additional metal shielding layer that adds mechanical strength and wear protection under continuous use.
Other connection methods (pin, terminal or bare wire) are available on request.
- Furnaces and kilns up to 704°C
- Metal heat treatment
- Chemical environments with acids or alkalis
| Code | Range°C | Insulation | Lengthm | Availability | Price excl. VAT | Price incl. VAT | Cart |
|---|---|---|---|---|---|---|---|
| 0704-M1W1L1 | 704 | Υαλόνημα | 0.5 | On Order |
€20,70
|
€25,67
|
|
| 0704-M1W1L2 | 704 | Υαλόνημα | 1 | On Order |
€24,60
|
€30,50
|
|
| 0704-M1W1L3 | 704 | Υαλόνημα | 2 | On Order |
€40,20
|
€49,85
|
|
| 0704-M1W1L4 | 704 | Υαλόνημα | 3 | On Order |
€55,70
|
€69,07
|
|
| 0704-M1W1L5 | 704 | Υαλόνημα | 5 | On Order |
€87,00
|
€107,88
|
|
| 0704-M2W1L1 | 704 | Υαλόνημα με θωράκιση | 0.5 | On Order |
€23,30
|
€28,89
|
|
| 0704-M2W1L2 | 704 | Υαλόνημα με θωράκιση | 1 | On Order |
€32,70
|
€40,55
|
|
| 0704-M2W1L3 | 704 | Υαλόνημα με θωράκιση | 2 | On Order |
€51,60
|
€63,98
|
|
| 0704-M2W1L4 | 704 | Υαλόνημα με θωράκιση | 3 | On Order |
€70,00
|
€86,80
|
|
| 0704-M2W1L5 | 704 | Υαλόνημα με θωράκιση | 5 | On Order |
€108,00
|
€133,92
|
