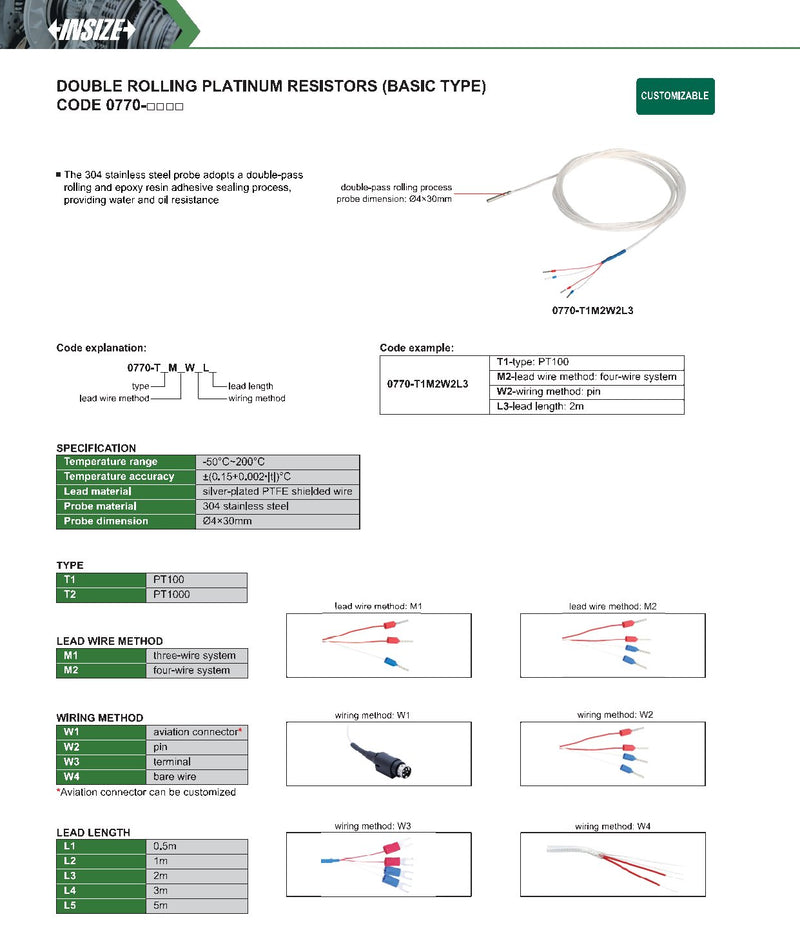

Specifications
- Sensing element: PT100 or PT1000 (platinum)
- Temperature range: -50°C ~ 200°C
- Accuracy: ±(0.15 + 0.002·|t|) °C
- Probe: 304 stainless steel, Ø4 × 30 mm
- Construction: double-pass rolling with epoxy resin sealing
- Lead material: silver-plated PTFE shielded wire
- Wiring system: three-wire
- Available lead lengths: 0.5, 1, 2, 3 and 5 m
Description
General-purpose platinum temperature sensor. The 304 stainless steel probe is made with a double-pass rolling process and sealed with epoxy resin, making it water and oil resistant.
Compared with a thermocouple, a platinum sensor offers higher accuracy and stability. Available as PT100 or PT1000, with a three-wire system, in five lead lengths from 0.5 m to 5 m.
A four-wire system and an aviation connector are available on request.
- Industrial processes up to 200°C
- Measurements in liquids and oils
- Integration into machinery and control systems
| Code | Type | Connection | Lengthm | Availability | Price excl. VAT | Price incl. VAT | Cart |
|---|---|---|---|---|---|---|---|
| 0770-T1M1W2L1 | PT100 | Ακίδα (pin) | 0.5 | On Order |
€71,00
|
€88,04
|
|
| 0770-T1M1W2L2 | PT100 | Ακίδα (pin) | 1 | On Order |
€73,00
|
€90,52
|
|
| 0770-T1M1W2L3 | PT100 | Ακίδα (pin) | 2 | On Order |
€78,00
|
€96,72
|
|
| 0770-T1M1W2L4 | PT100 | Ακίδα (pin) | 3 | On Order |
€83,00
|
€102,92
|
|
| 0770-T1M1W2L5 | PT100 | Ακίδα (pin) | 5 | On Order |
€93,00
|
€115,32
|
|
| 0770-T1M1W3L1 | PT100 | Ακροδέκτης (terminal) | 0.5 | On Order |
€71,00
|
€88,04
|
|
| 0770-T1M1W3L2 | PT100 | Ακροδέκτης (terminal) | 1 | On Order |
€73,00
|
€90,52
|
|
| 0770-T1M1W3L3 | PT100 | Ακροδέκτης (terminal) | 2 | On Order |
€78,00
|
€96,72
|
|
| 0770-T1M1W3L4 | PT100 | Ακροδέκτης (terminal) | 3 | On Order |
€83,00
|
€102,92
|
|
| 0770-T1M1W3L5 | PT100 | Ακροδέκτης (terminal) | 5 | On Order |
€93,00
|
€115,32
|
|
| 0770-T1M1W4L1 | PT100 | Γυμνό καλώδιο | 0.5 | On Order |
€71,00
|
€88,04
|
|
| 0770-T1M1W4L2 | PT100 | Γυμνό καλώδιο | 1 | On Order |
€73,00
|
€90,52
|
|
| 0770-T1M1W4L3 | PT100 | Γυμνό καλώδιο | 2 | On Order |
€78,00
|
€96,72
|
|
| 0770-T1M1W4L4 | PT100 | Γυμνό καλώδιο | 3 | On Order |
€83,00
|
€102,92
|
|
| 0770-T1M1W4L5 | PT100 | Γυμνό καλώδιο | 5 | On Order |
€93,00
|
€115,32
|
|
| 0770-T2M1W2L1 | PT1000 | Ακίδα (pin) | 0.5 | On Order |
€71,00
|
€88,04
|
|
| 0770-T2M1W2L2 | PT1000 | Ακίδα (pin) | 1 | On Order |
€73,00
|
€90,52
|
|
| 0770-T2M1W2L3 | PT1000 | Ακίδα (pin) | 2 | On Order |
€78,00
|
€96,72
|
|
| 0770-T2M1W2L4 | PT1000 | Ακίδα (pin) | 3 | On Order |
€83,00
|
€102,92
|
|
| 0770-T2M1W2L5 | PT1000 | Ακίδα (pin) | 5 | On Order |
€93,00
|
€115,32
|
|
| 0770-T2M1W3L1 | PT1000 | Ακροδέκτης (terminal) | 0.5 | On Order |
€71,00
|
€88,04
|
|
| 0770-T2M1W3L2 | PT1000 | Ακροδέκτης (terminal) | 1 | On Order |
€73,00
|
€90,52
|
|
| 0770-T2M1W3L3 | PT1000 | Ακροδέκτης (terminal) | 2 | On Order |
€78,00
|
€96,72
|
|
| 0770-T2M1W3L4 | PT1000 | Ακροδέκτης (terminal) | 3 | On Order |
€83,00
|
€102,92
|
|
| 0770-T2M1W3L5 | PT1000 | Ακροδέκτης (terminal) | 5 | On Order |
€93,00
|
€115,32
|
|
| 0770-T2M1W4L1 | PT1000 | Γυμνό καλώδιο | 0.5 | On Order |
€71,00
|
€88,04
|
|
| 0770-T2M1W4L2 | PT1000 | Γυμνό καλώδιο | 1 | On Order |
€73,00
|
€90,52
|
|
| 0770-T2M1W4L3 | PT1000 | Γυμνό καλώδιο | 2 | On Order |
€78,00
|
€96,72
|
|
| 0770-T2M1W4L4 | PT1000 | Γυμνό καλώδιο | 3 | On Order |
€83,00
|
€102,92
|
|
| 0770-T2M1W4L5 | PT1000 | Γυμνό καλώδιο | 5 | On Order |
€93,00
|
€115,32
|
