Micrometers
Μικρόμετρο για αυλάκια Insize 3287
Μικρόμετρο για αυλάκια Insize 3287 0–25mm, ασημί, με κυλινδρικό σώμα και κλίμακα 0,01mm
Τεχνικά χαρακτηριστικά 3287 - Μικρόμετρο για αυλάκια (σελ. 1)
Τεχνικά χαρακτηριστικά 3287 - Μικρόμετρο για αυλάκια (σελ. 2)
Τεχνικά χαρακτηριστικά 3287 - Μικρόμετρο για αυλάκια (σελ. 3)
Μικρόμετρο για αυλάκια Insize 3287
Μικρόμετρο για αυλάκια Insize 3287 0–25mm, ασημί, με κυλινδρικό σώμα και κλίμακα 0,01mm
Τεχνικά χαρακτηριστικά 3287 - Μικρόμετρο για αυλάκια (σελ. 1)
Τεχνικά χαρακτηριστικά 3287 - Μικρόμετρο για αυλάκια (σελ. 2)
Τεχνικά χαρακτηριστικά 3287 - Μικρόμετρο για αυλάκια (σελ. 3)

Availability & price

7 codes

Code L (mm) Range Reading Availability excl. VATincl. VAT Certificate Cart
3287-25B 120 0-25 0.01
€354,00
€438,96
0
3287-50B 120 25-50 0.01
€410,00
€508,40
0
3287-75B 120 50-75 0.01
€477,00
€591,48
0
3287-100B 120 75-100 0.01
€547,00
€678,28
0
3287-125B 120 100-125 0.01 On Order
€770,00
€954,80
0
3287-150B 120 125-150 0.01
€880,00
€1.091,20
0
3287-251B 90 0-25 0.01
€364,00
€451,36
0

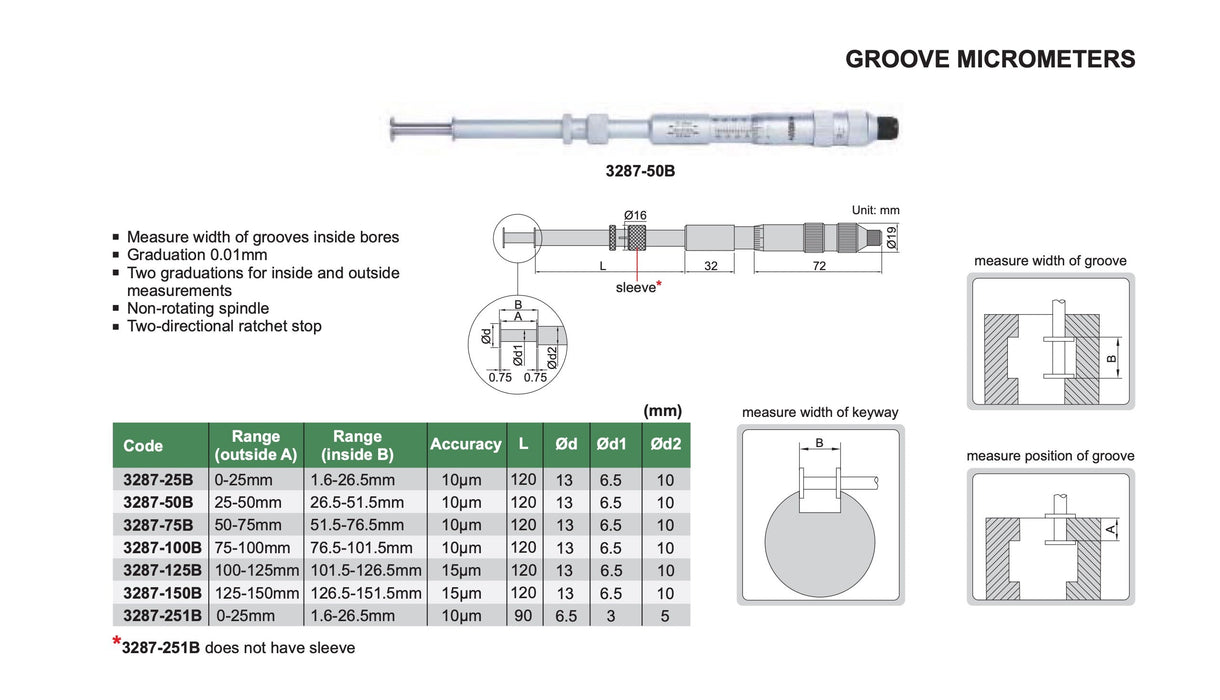

Technical Specifications

  • Measuring range (external A): 0–150 mm (depending on model)

  • Measuring range (internal B): 1.6–151.5 mm (depending on model)

  • Reading: 0.01 mm

  • Accuracy: 10 μm or 15 μm (depending on model)

  • Dual scale for internal and external measurements

  • Non-rotating measuring screw

  • Bidirectional ratchet mechanism

  • Ød: 13 mm (except for model 3287-251B: 6.5 mm)

  • Ød1: 6.5 mm (except for 3287-251B: 3 mm)

  • Ød2: 10 mm (except for 3287-251B: 5 mm)

  • Length L: 120 mm (except for 3287-251B: 90 mm)

  • Model 3287-251B does not have a sleeve

Description

Groove micrometer designed for measuring groove widths in internal cross-sections and axial positions. It provides two scales for measuring internal and external grooves, suitable for dimensional inspection of machined parts or parts with recesses. The tool features a non-rotating screw and a bidirectional ratchet mechanism for consistent pressure during measurement.
