Thread Gauges Metric Male

4130-M M Gauge for Metric Thread 6H (Standard)

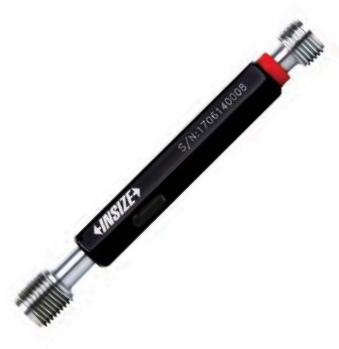

Ελεγκτήρας σπειρώματος Insize 4130-M για μετρικό σπείρωμα 6H, μαύρη λαβή με δύο αρσενικά άκρα GO/NO GO
Τεχνικά χαρακτηριστικά 4130-M - M Ελεγκτήρας για Μετρικό Σπείρωμα 6H (Standard)
Ελεγκτήρας σπειρώματος Insize 4130-M για μετρικό σπείρωμα 6H, μαύρη λαβή με δύο αρσενικά άκρα GO/NO GO
Τεχνικά χαρακτηριστικά 4130-M - M Ελεγκτήρας για Μετρικό Σπείρωμα 6H (Standard)
Code Thread Type Tolerance Availability Price excl. VAT Price incl. VAT Certificate Cart
4130-D8 M0.8x0.2 M20x2 6H
€40,00
€49,60
0
4130-D9 M0.9x0.225 M20x2 6H
€40,00
€49,60
0
4130-1 M1x0.25 M20x2 6H
€37,50
€46,50
0
4130-1D1 M1.1x0.25 M20x2 6H On Order
€39,80
€49,35
0
4130-1D2 M1.2x0.25 M20x2 6H On Order
€39,50
€48,98
0
4130-1D4 M1.4x0.3 M20x2 6H
€37,60
€46,62
0
4130-1D6 M1.6x0.35 M20x2 6H
€37,50
€46,50
0
4130-1D7 M1.7x0.35 M20x2 6H
€39,70
€49,23
0
4130-1D8 M1.8x0.35 M20x2 6H
€39,10
€48,48
0
4130-2 M2x0.4 M20x2 6H
€28,00
€34,72
0
4130-2D2 M2.2x0.45 M20x2 6H
€31,80
€39,43
0
4130-2D3 M2.3x0.4 M20x2 6H
€32,80
€40,67
0
4130-2D5 M2.5x0.45 M20x2 6H
€27,50
€34,10
0
4130-2D6 M2.6x0.45 M20x2 6H
€31,80
€39,43
0
4130-3 M3x0.5 M20x2 6H
€27,50
€34,10
0
4130-3D5 M3.5x0.6 M20x2 6H
€40,90
€50,72
0
4130-4 M4x0.7 M20x2 6H
€28,50
€35,34
0
4130-4D5 M4.5x0.75 M20x2 6H
€32,90
€40,80
0
4130-5 M5x0.8 M20x2 6H
€28,50
€35,34
0
4130-6 M6x1 M20x2 6H
€28,50
€35,34
0
4130-7 M7x1 M20x2 6H
€28,80
€35,71
0
4130-8 M8x1.25 M20x2 6H
€28,50
€35,34
0
4130-9 M9x1.25 M20x2 6H
€28,80
€35,71
0
4130-10 M10x1.5 M20x2 6H
€32,50
€40,30
0
4130-11 M11x1.5 M20x2 6H
€33,20
€41,17
0
4130-12 M12x1.75 M20x2 6H
€37,00
€45,88
0
4130-14 M14x2 M20x2 6H
€39,00
€48,36
0
4130-16 M16x2 M20x2 6H
€39,10
€48,48
0
4130-18 M18x2.5 M20x2 6H
€42,30
€52,45
0
4130-20 M20x2.5 M20x2 6H
€42,30
€52,45
0
4130-22 M22x2.5 M20x2 6H
€43,30
€53,69
0
4130-24 M24x3 M20x2 6H
€51,50
€63,86
0
4130-27 M27x3 M20x2 6H
€51,50
€63,86
0
4130-30 M30x3.5 M20x2 6H
€59,50
€73,78
0
4130-33 M33x3.5 M20x2 6H
€61,00
€75,64
0
4130-36 M36x4 M20x2 6H
€83,00
€102,92
0
4130-39 M39x4 M20x2 6H
€87,00
€107,88
0
4130-42 M42x4.5 M20x2 6H
€83,00
€102,92
0
4130-45 M45x4.5 M20x2 6H
€88,00
€109,12
0
4130-48 M48x5 M20x2 6H
€119,00
€147,56
0
4130-52 M52x5 M20x2 6H
€132,00
€163,68
0
4130-56 M56x5.5 M20x2 6H
€143,00
€177,32
0
4130-60 M60x5.5 M20x2 6H
€153,00
€189,72
0
Thread Gauges
Wiki

Thread Gauges

The thread gauges (thread gauges) are standard verification tools used to check the accuracy and compatibility of threads on screws and nuts. They are based on the "Go / No-Go" method, ensuring that the thread is within the specified tolerance limits for correct assembly and operation of the components.

  • Types: They are classified into standard rings (ring gauges) for external threads and standard plugs (plug gauges) for internal threads.
  • Applications: Essential in mass production, precision machining, and quality control of fastening components.
  • Standards: Manufactured according to international systems such as Metric (M), Whitworth (BSP) or Unified (UNC/UNF), from hardened high-strength steel.
