| Measurement operation | Infrared |
| Measurement range | -50 ... 550 °C |
| Reading | ≤ 1000 °C/°F: 0.1 °C/°F |
| > 1000 °C/°F: 1 °C/°F | |
| Accuracy | -50 … 0 ºC: ± 3 ºC |
| > 0º C: ± 1.5 % or ± 2.0 | |
| The HOLD function retains the maximum value | |
| Measurement operation | Type K thermocouple |
| Measurement range | -50 … 850 ºC |
| Reading | ≤ 1000 °C/°F: 0.1 °C/°F |
| > 1000 °C/°F: 1 °C/°F | |
| Accuracy | ± 1.5 % or ± 1.5 °C |
| the highest value counts | |
| Measurement operation | Air temperature |
| Measurement range | -20 … 60 ºC |
| Reading | 0.1 °C |
| Accuracy | 0 … 40 ºC: ± 1.0 ºC |
| Other: ± 2 °C | |
| Measurement operation | Humidity |
| Measurement range | 0 … 100 % rH |
| Reading | 1 % |
| Accuracy | 35 … 75 % rH: |
| ± 3.0 % rH | |
| Other: ± 5 % rH | |
| Measurement operation | Dew Point |
| Measurement range | -20 … 60 ºC |
| Reading | 0.1 °C |
| Accuracy | 25 ºC, 40 … 80 % rH: ± 1.5 ºC |
| Measurement operation | Wet bulb temperature |
| Measurement range | -20 … 60ºC |
| Reading | 0.1 °C |
| Accuracy | 25 °C: ± 1.5 °C |
| Emission coefficient | adjustable between 0.1 and 1.0 |
| Distance ratio | 13: 1 |
|
Response time |
≤ 500 ms |
| Spectral sensitivity | 8 … 14 μm |
| Laser | ≤ 1 mW, 630 … 670 nm, class 2 laser |
| Automatic power off | after 1 minute of inactivity |
| Operating conditions | 0 … 50 ºC / ≤ 95% rH |
| Storage conditions | -20 … 70 ºC / ≤ 80 % rH |
| Power supply | 9 V battery |
| Weight | approximately 130 gr |

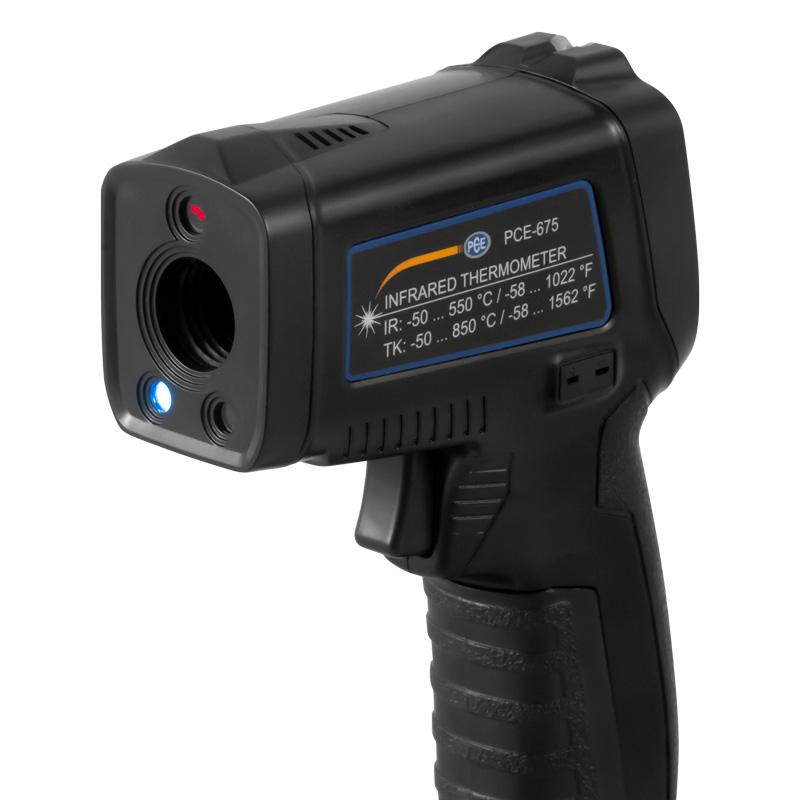

PCE-675 infrared thermometer
Easy to use with red laser pointer / Measurement input for type K / Surface temperatures / Air temperature / Humidity / Dew point temperature
The thermometer has a distance ratio of 13:1 and can accurately measure surface temperatures and ambient humidity from a very long distance. It features a red laser beam.
The built-in lens allows the surface to be measured to be illuminated in the dark. The individual settings of the thermometer allow measurement of a wide range of temperatures and humidity. The thermometer does not have a fixed emissivity coefficient but has an adjustment range from 0.1 to 1.0, covering more than 90% of possible temperatures to be measured.
- Adjustable emissivity coefficient between 0.1 and 1.0
- Automatic shutdown
- Laser beam can be turned off

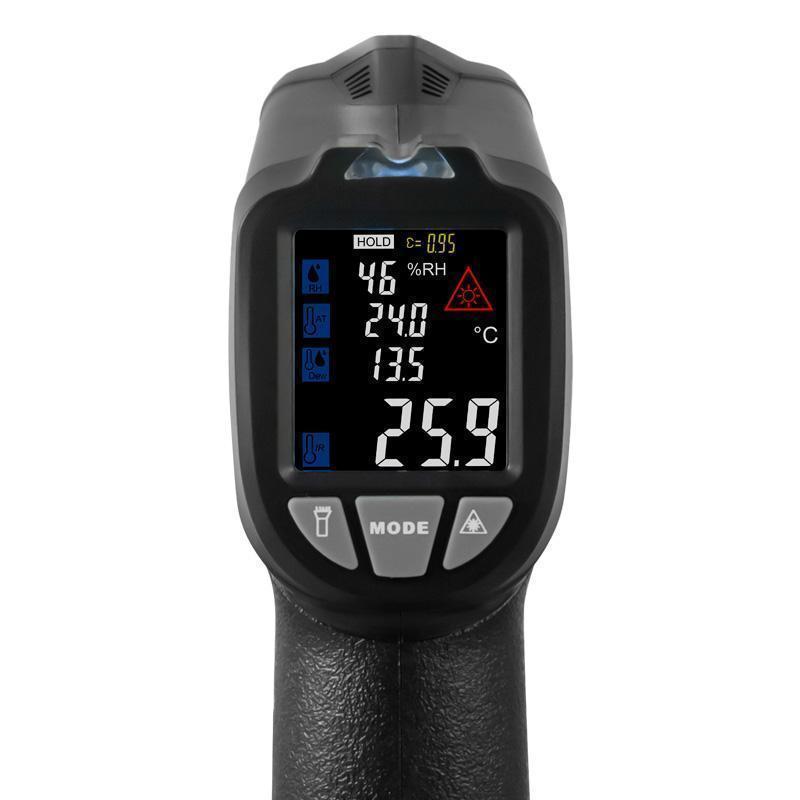

- Measurement display with option to select between °C and °F
- Battery powered
- Compact and robust design

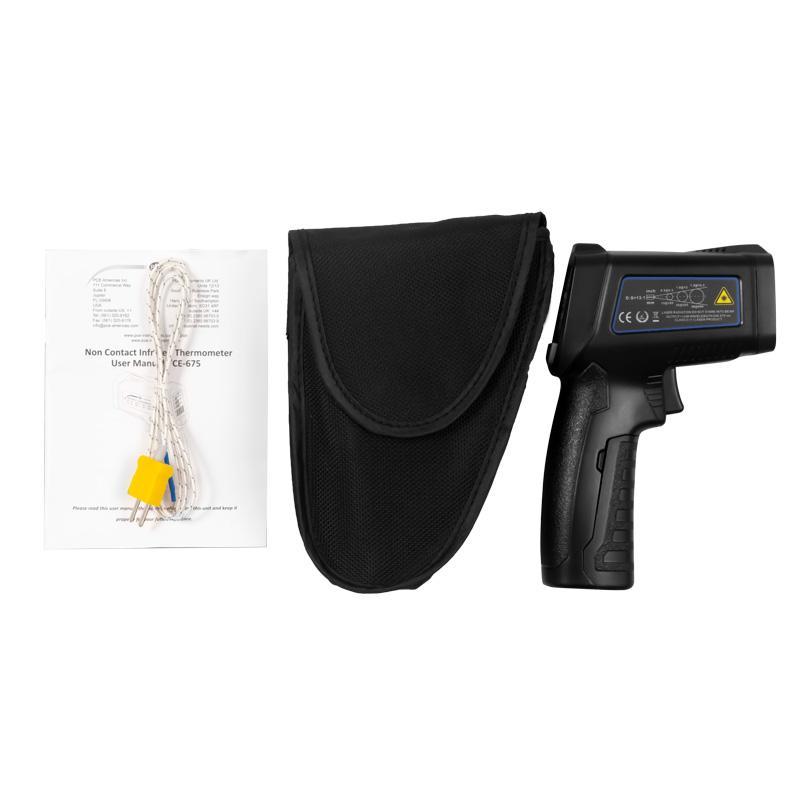

Package contents
1 x PCE-675 thermometer
1 x Type-K thermocouple
1 x 9 V battery
1 x carrying bag
1 x User manual
1 x Type-K thermocouple
1 x 9 V battery
1 x carrying bag
1 x User manual
1 Year Warranty
