Precision Scales

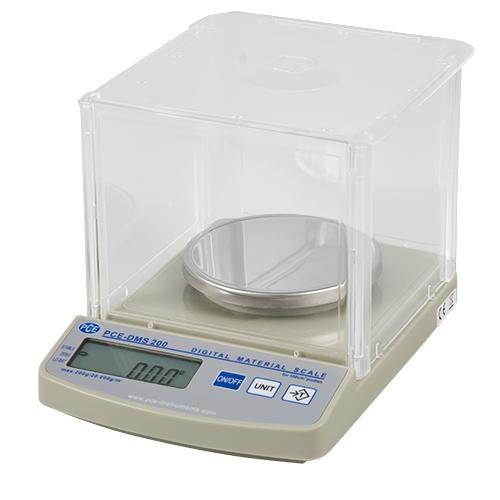

PCE Instruments PCE-DMS 200 paper scale with transparent draft shield and 200 g digital LCD display

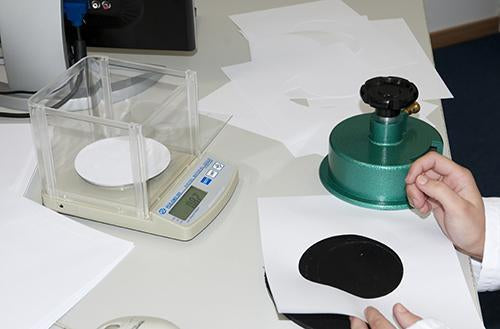

PCE Instruments PCE-DMS 200 paper scale with draft shield, in use with paper sheets on a desk
PCE Instruments PCE-DMS 200 paper scale with transparent draft shield and 200 g digital LCD display
PCE Instruments PCE-DMS 200 paper scale with draft shield, in use with paper sheets on a desk

Availability & price

Code Range (g) Graduation (g/m²) Pan (mm) Availability excl. VATincl. VAT Certificate Cart
PCE-DMS 200 200 1 Ø100
€291,00
€360,84
0

Description

  • Basis weight in g/m² and oz/yd²
  • Up to 200 g / 20,000 g/m²
  • 0.01 g resolution
  • 10 cm pan for 11 cm samples

The PCE-DMS 200 is a GSM paper basis weight scale. It measures the weight per square metre of paper, cardboard, fabric, textiles and similar materials. It reads directly in g, g/m², oz or oz/yd². One button switches the weighing unit.

It is used mainly by paper and textile manufacturers for quality control. Both industries test by weighing an 11 cm round sample of paper or fabric. The 10 cm round pan takes these 11 cm circle cut samples. An optional 11 cm circle sample cutter makes the test quicker.

Highlights

  • 10 cm round pan for 11 cm circle samples
  • Weighing unit changed at one button press
  • 15 mm (0.6") backlit LCD display
  • Auto power-off saves battery, can be disabled
  • Automatic calibration with external weight (not included)
  • Optional ISO calibration certificate

Specifications

Weighing range
Measuring range from0 g
Measurement range up to [Max]200 g
Resolution [d]0,01 g
Measuring range from0 g/m²
Measurement range up to [Max]20000 g/m²
Resolution [d]1 g/m²
General technical data
Unitsg, oz, g/m², oz/yd²
Display typeLCD
Digit size [WxH]Höhe: 15 mm
Automatic power-off2 min
HousingABS (acrylonitrile-butadiene-styrene copolymers)
Reproducibility0.02 g
CalibrationAutomatically using an external test weight
DimensionsWind shield: 145 x 145 x 120 mm
Stabilisation time3 s
Readability0,01 g
Protection class (device)IP20
Power supply12V
Connector typeDevice-europlug
Battery4 x 1,5 V AAA battery , Alkali-manganese
Capacity3000 mAh
Operating conditions0 ... 40 °C , 0 ... 85 % RH
Storage conditions0 ... 40 °C , 0 ... 85 % RH
Dimensions ( L x W x H )145 x 210 x 40 mm
Weight1000 g

Package Contents

  • 1×PCE-DMS 200 Paper Scales
  • 1×Wind screen
  • 1×Power supply
  • 4×AAA batteries
  • 1×User manual

Technical Documents 2

Datasheet Technical datasheet Manual User manual
