Vibration Meters

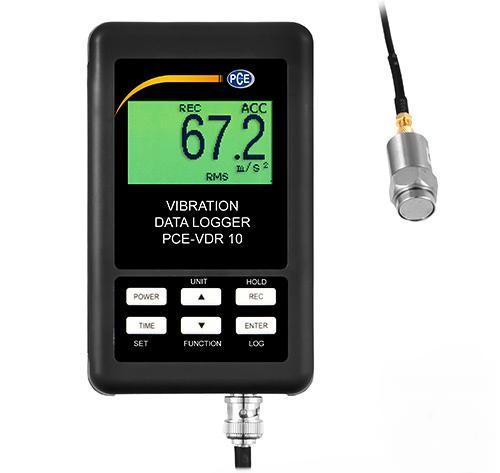

PCE Instruments PCE-VDR 10 vibration meter with green LCD display and external ACC accelerometer

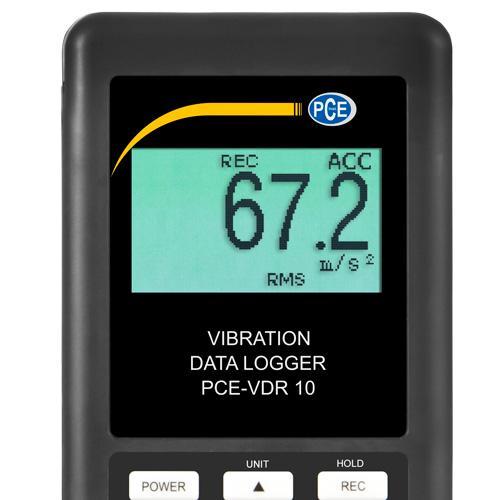

PCE Instruments PCE-VDR 10 vibration meter with large LCD display and Power/Unit/Hold/Rec keys

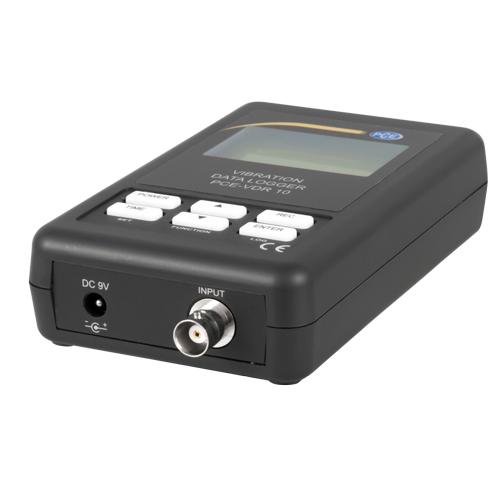

PCE Instruments PCE‑VDR 10 vibration meter with LCD display, keys and BNC sensor input, black

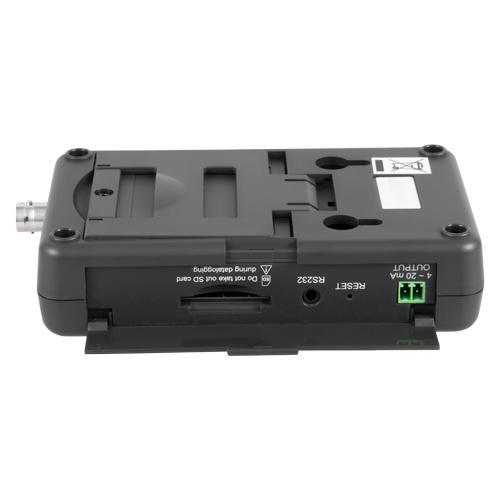

Bottom view of PCE Instruments PCE‑VDR 10 vibration meter, black body with SD slot and 4–20 mA output port

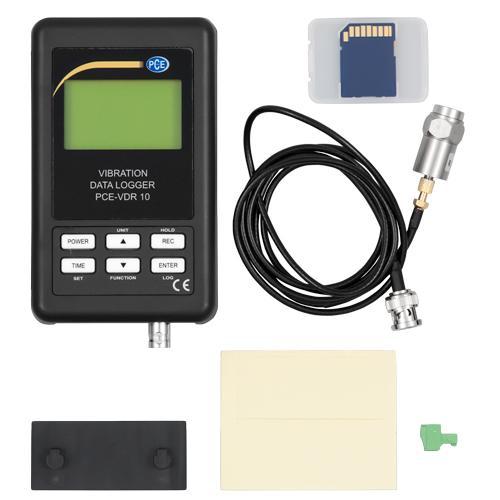

PCE Instruments PCE-VDR 10 vibration meter with display, cabled sensor and SD memory card

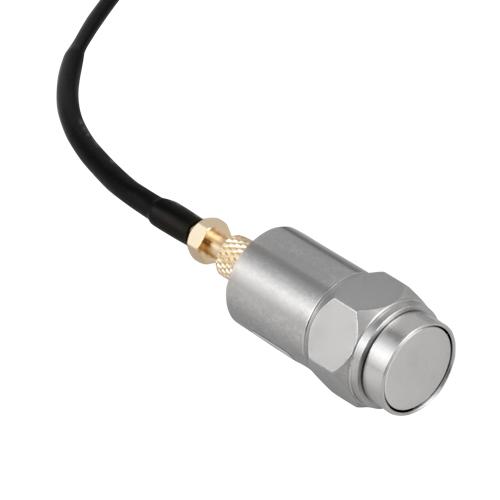

PCE vibration sensor with metal cylindrical body and black cable, for PCE‑VDR 10

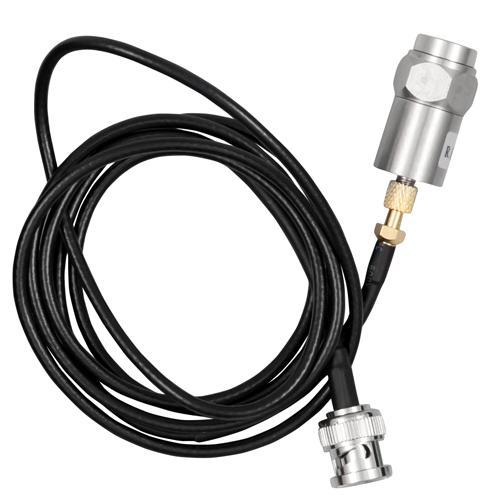

PCE Instruments PCE-VDR 10 vibration sensor with black cable and metal connector
PCE Instruments PCE-VDR 10 vibration meter with green LCD display and external ACC accelerometer
PCE Instruments PCE-VDR 10 vibration meter with large LCD display and Power/Unit/Hold/Rec keys
PCE Instruments PCE‑VDR 10 vibration meter with LCD display, keys and BNC sensor input, black
Bottom view of PCE Instruments PCE‑VDR 10 vibration meter, black body with SD slot and 4–20 mA output port
PCE Instruments PCE-VDR 10 vibration meter with display, cabled sensor and SD memory card
PCE vibration sensor with metal cylindrical body and black cable, for PCE‑VDR 10
PCE Instruments PCE-VDR 10 vibration sensor with black cable and metal connector

Availability & price

Code Availability excl. VATincl. VAT Certificate Cart
PCE-VDR 10
€870,00
€1.078,80
0
  • Single-axis vibration measurement
  • Real-time measurement and logging
  • SD card memory included
  • USB and RS-232 interface
  • 4 ... 20 mA analogue output
  • Easy-to-read backlit LCD

The PCE-VDR 10 is a single-axis vibration data logger that measures acceleration (m/s, g, ft/s) and speed (mm/s, cm/s, in/s) in real time and stores the readings on the included SD card. It is used for short-term machine condition checks and long-term condition monitoring.

No software is needed: take out the SD card, plug it into a PC and open the time-stamped data (year, month, date, hour, minute, second) in MS Excel. A 4 ... 20 mA analogue output connects the logger to an mA meter, a signal converter or a data system. For the first SD card setup, connect the PCE-VDR 10 to AC power (NET-LUT or NET-LUT-US adapter sold separately).

Highlights

  • Single-axis acceleration and speed measurement
  • Acceleration in m/s, g, ft/s
  • Speed in mm/s, cm/s, in/s
  • SD card memory, adjustable logging interval
  • RS-232 and USB interface
  • 4 ... 20 mA analogue output
  • Data read directly in Microsoft Excel
  • Backlit LCD, portable
Frequency range10 ... 1000 Hz
Acceleration measuring range (at 50 m/s, 160 Hz)0.5 ... 199.9 m/s, 0.05 ... 20.39 g, 2 ... 656 ft/s
Resolution0.1, 0.01, 1
Accuracy± (5% of reading + 2 digits)
Speed measuring range (at 50 mm/s, 160 Hz)0.5 ... 199.9 mm/s, 0.05 ... 19.99 cm/s, 0.02 ... 7.87 in/s
Resolution0.1, 0.01, 1
Accuracy± (5% of reading + 2 digits)
DisplayLCD
Display update timeupdate time: 1 second
MemorySD card (included)
Automatic data logging interval5 ... 3600 seconds (adjustable)
Analog output4 ... 20 mA
Power supply6 x 1.5 V AAA batteries or 9 V DC electric power (adapter sold separately)
InterfaceRS-232 and USB
Dimensions132 x 80 x 32 mm (5.20 x 3.15 x 1.26")
  • 1×Vibration Data Logger PCE-VDR 10
  • 1×vibration sensor
  • 1×wall bracket
  • 6×1.5 V AAA batteries
  • 1×SD memory card
  • 1×connector for 4 ... 20 mA output
  • 1×user manual
Datasheet Technical datasheet Manual User manual
