PCE-VM 5000 - Vibration Meter for control and maintenance - SD Memory Card
| Acceleration | |
| Unit: m/s² |
Range: 0.5 ... 199.9 m/s² Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz |
| Section: g |
Range: 0.05 ... 20.39 g Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz |
| Unit: ft/s² |
Range: 2 ... 656 ft/s² Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz |
| Calibration point | 50 m/s² (160 Hz) |
| Speed | |
| Unit: mm/s |
Range: 0.5 ... 199.9 mm/s Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz |
| Unit: cm/s |
Range: 0.05 ... 19.99 cm/s Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz |
| Unit: inch/s |
Range: 0.02 ... 7.89 inches/second Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz |
| Calibration point | 50mm/s (160Hz) |
| Displacement | |
| Unit: mm |
Range: 1,999 mm Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz |
| Unit: in |
Range: 0.078 in Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz |
|
Calibration point |
0.141mm (160Hz) |
| Screen |
82 x 61 mm / 3.22 in x 2.4" LCD with backlight |
|

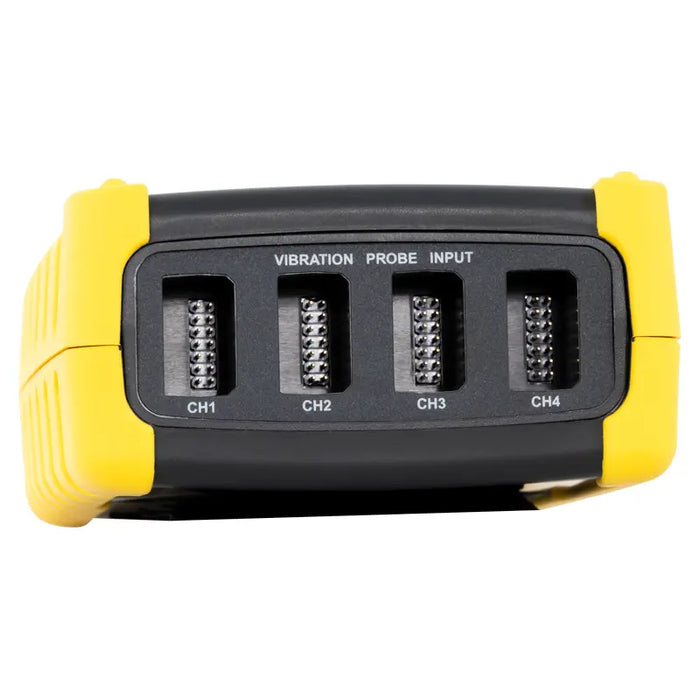

Number of channels |

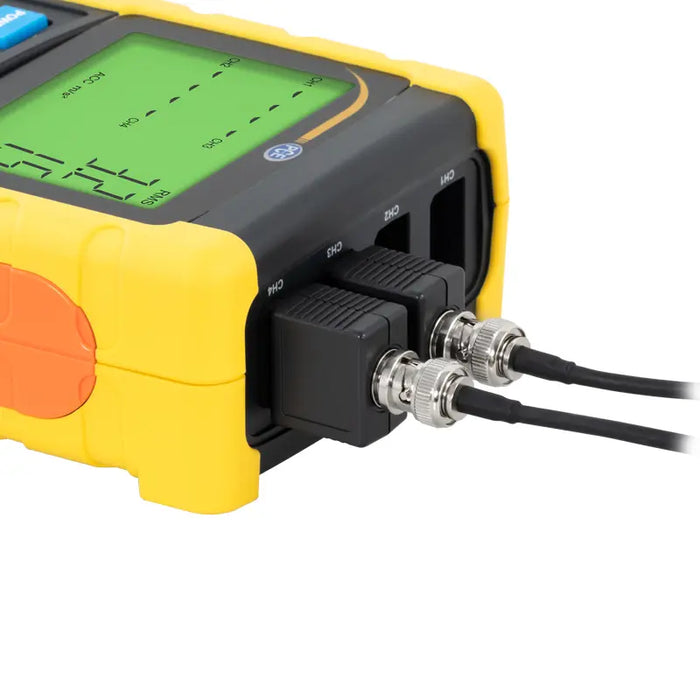

4 input channels |
|
Parameters |
Velocity, acceleration, displacement |
|
Measurement unit |
Acceleration: m/s², g, ft/s² Speed: mm/s, cm/s, in/s Offset: mm, in |
| Frequency range | 10 Hz ... 1 kHz |
| Peak Hold |
Acceleration, Velocity: Measures / updates the maximum value Extension: Counts / updates the pp value |
| Max Hold |
Acceleration, Velocity: Measures / updates the maximum value Extension: Counts / updates the pp value |
| Max Hold reset |
Button activation |
| Zero mode | Enable button for acceleration measurements (RMS) |
|
Recorder sampling rate |
Automatic: 1 ... 3,600 seconds Manually: at the push of a button |

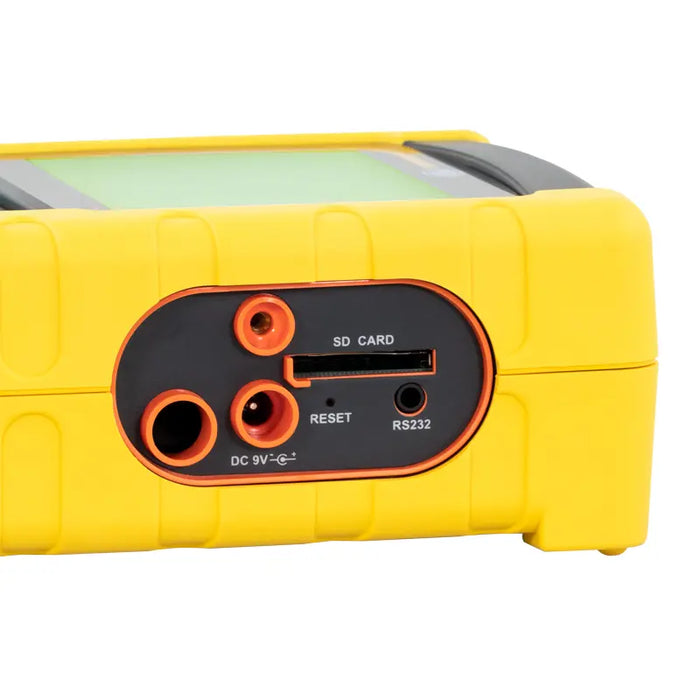

| Memory | SD memory card (1 ... 16 GB) |
| Data retention function |
Holds the displayed measurement value |
|
Audio output point |
Mini stereo jack socket Max. voltage: 2V Output resistance: 100 Ohm |
| Operating temperature | 0 ... +50 °C / 32 ... 122 °F |
|
Operating humidity |
85 % RH max. |
| Power supply | 8 x 1.5V AA batteries or 9V power supply |
|
Energy consumption |
NiMH battery 3 x 2700 mAh |
|
Normal operation: approx 12mA dc With backlight off and data logger on: approx 35mA dc |
|
| Weight |
Meter: 515g / / 1.1 lbs Detector with cable and magnetic base: 99 g / 0.2 lbs |
| Dimensions |
Main unit: 203 x 76 x 38 mm / 8.0 x 3.0 x 1.5" Detector: 16 x 37 mm / 0.6 in x 1.5" in diameter Cable length: 1.2 m / 3.9 ft |

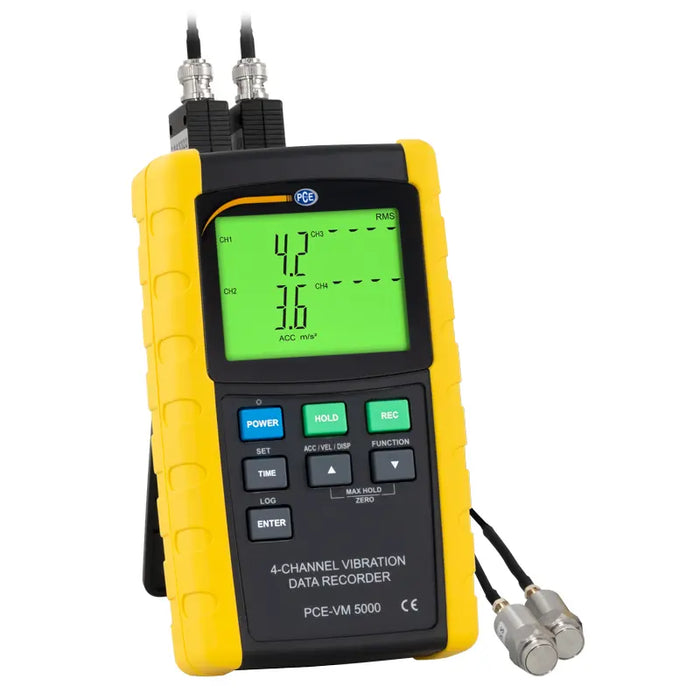

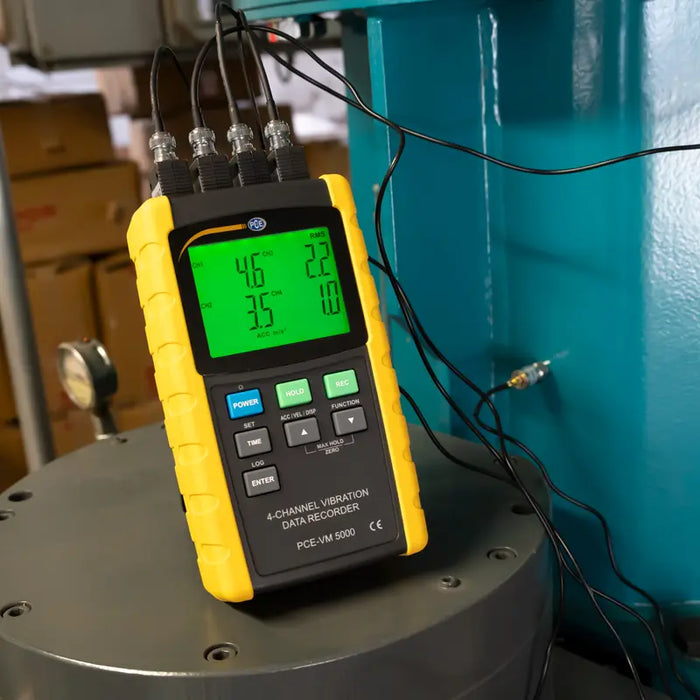

Vibration meter PCE-VM 5000 /

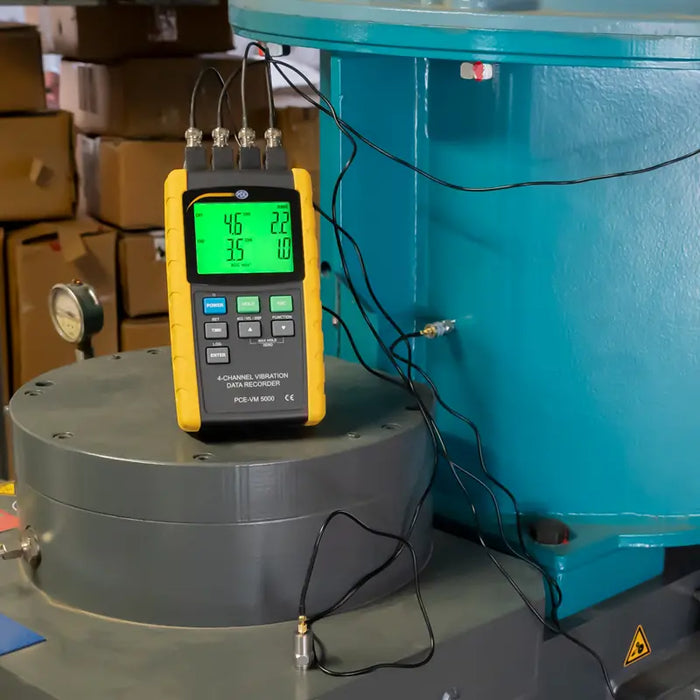

Visualization and storage of acceleration, velocity and vibration displacement measurement / 4 channels of simultaneous vibration measurement via remote vibration sensors
Visualization and storage of acceleration, velocity and vibration displacement measurement / 4 channels of simultaneous vibration measurement via remote vibration sensors
The PCE-VM 5000 4-channel vibration meter is specially designed for accurate vibration measurements. Despite the fact that it is a complex and sensitive device, its robust design ensures its reliable operation and use for many years. In a frequency range from 10 Hz to 1 KHz, the meter measures the velocity, acceleration and displacement of vibrations through 4 channels. Measurements are displayed on the large, illuminated LCD screen and then recorded and stored on an SD memory card, where the user can choose between automatic and manual storage. Via the SD memory card the data can then be transferred to a computer for further analysis in an excel file. In addition, the user can choose the desired units of measurement: for acceleration, m/s², g and ft/s², for speed, mm/s, cm/s and in/s, and finally for the displacement mm and inches can be selected.
- Acceleration, speed and displacement
- Long lasting battery
- Accurate measurement
- Large LCD screen with background lights
- Different units of measurement
- Save data to SD card
- Frequency range 10 Hz ... 1 KHz
- Evaluation of data on the computer
- Long lasting battery
- Accurate measurement
- Large LCD screen with background lights
- Different units of measurement
- Save data to SD card
- Frequency range 10 Hz ... 1 KHz
- Evaluation of data on the computer

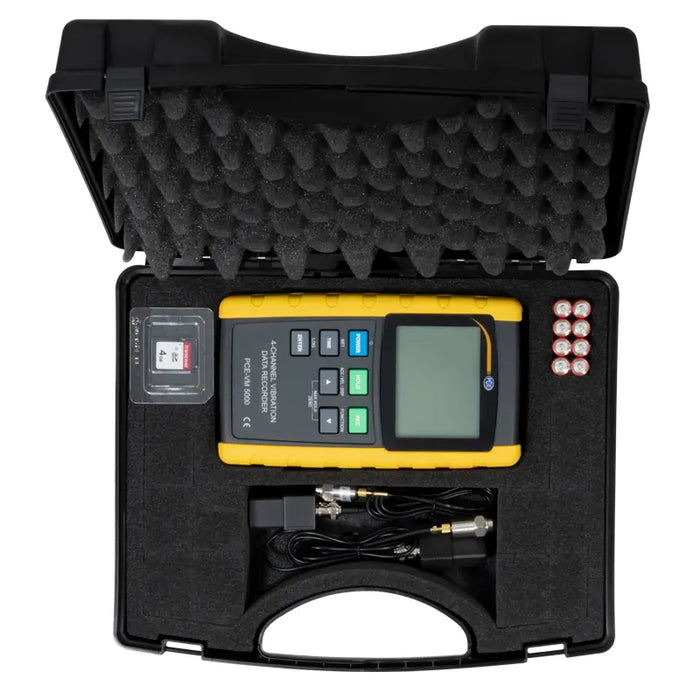

Package contents
1 x PCE-VM 5000 Vibration Meter

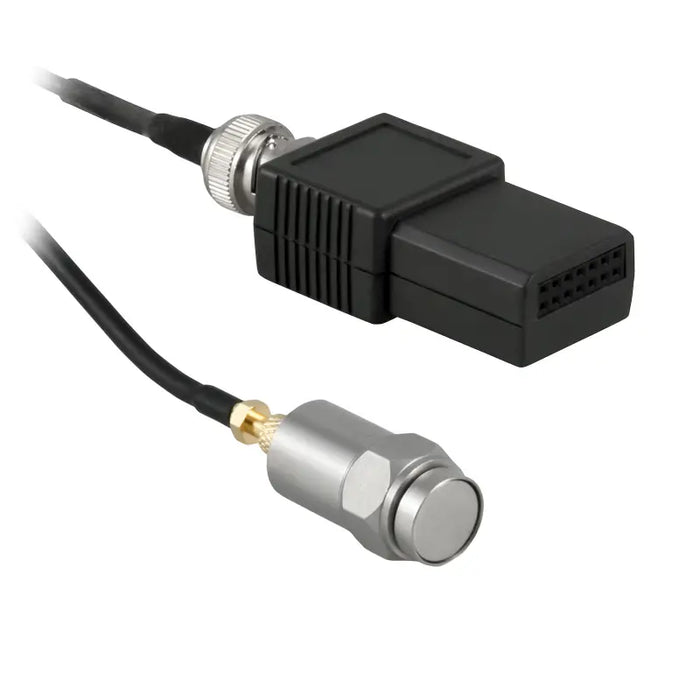

2 x Sensors with cable and magnet foot (1.2m / 3.9ft)
8 x 1.5V AA batteries
1 x carrying case
1 x Instruction Manual
2 x Sensors with cable and magnet foot (1.2m / 3.9ft)
8 x 1.5V AA batteries
1 x carrying case
1 x Instruction Manual
