PCE-VT 1100 - Vibration meter for machine control and maintenance
| Parameter | Measurement range | Frequency Range |
| Acceleration | 0.01 ... 199.9 m/s² peak | 10 Hz ... 1 kHz |
| Vibration speed | 0.01 ... 199.9 mm/s rms | 10 Hz ... 1 kHz |
| Displacement | 0.001 ... 1.999 mm pp | 10 ... 500 Hz |
| Measurement accuracy |
Acceleration: ≤ 3 % Vibration rate: ±5 %, ±2 Digits Offset: +10/-20 % (10...20 Hz); ±5 % (20...1000 HZ) |
|
| General characteristics | ||
| Screen | LCD, response time approx 1 s | |
| Power supply | 2 x 6V CR2032 | |
| Battery life | About 5 hours (in continuous operation) | |
| Environmental conditions | 0 ... 40°C / 32 ... 104°F, 0 ... 84% rH | |
| Dimensions | 155 x 24 x 18.7mm / 6.1 x 0.9 x 0.7in | |
| Weight | about 40g / 1.4oz (with batteries) | |

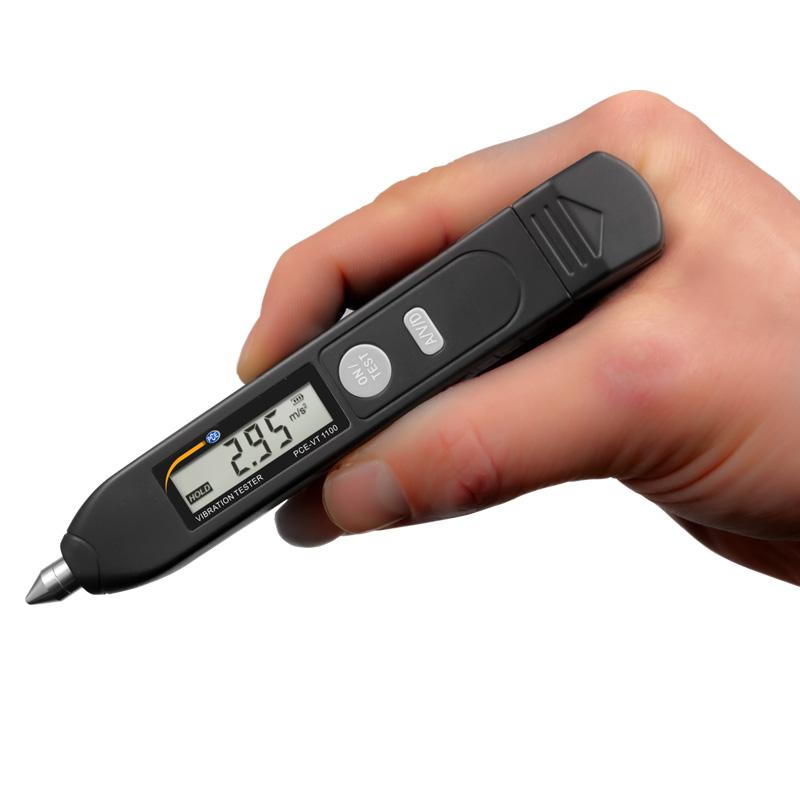

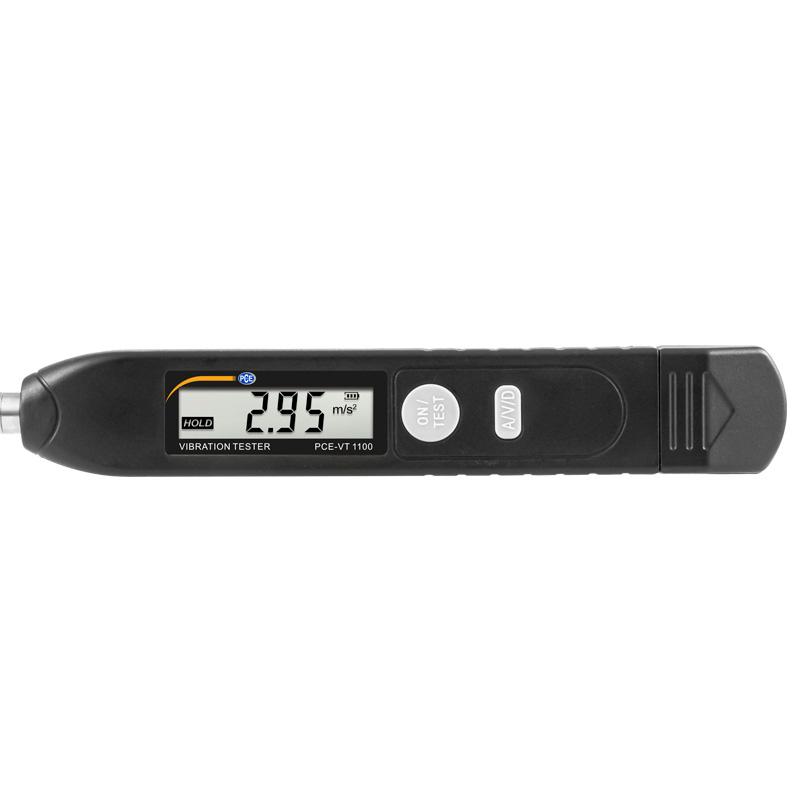

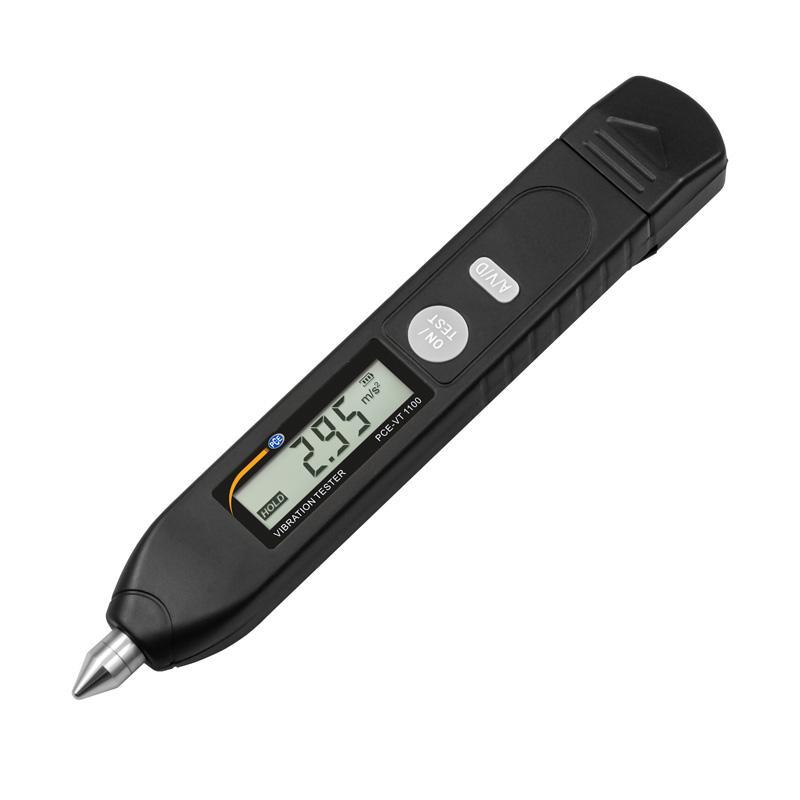

Vibration meter PCE-VT 1100
Measurement of acceleration, vibration velocity and displacement in metric system only / Wide frequency range / Portable with battery / Auto power off

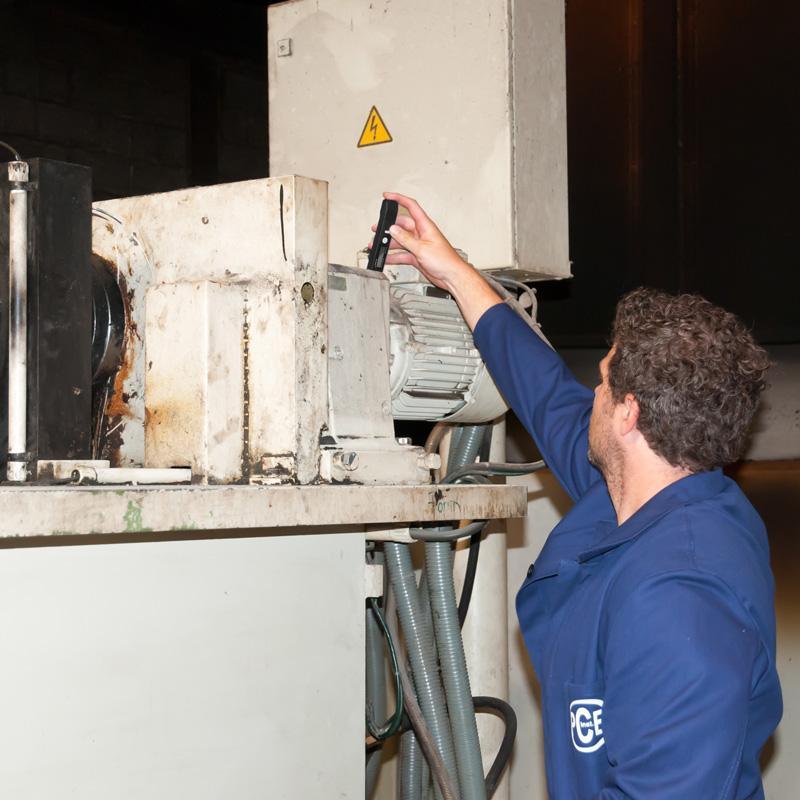

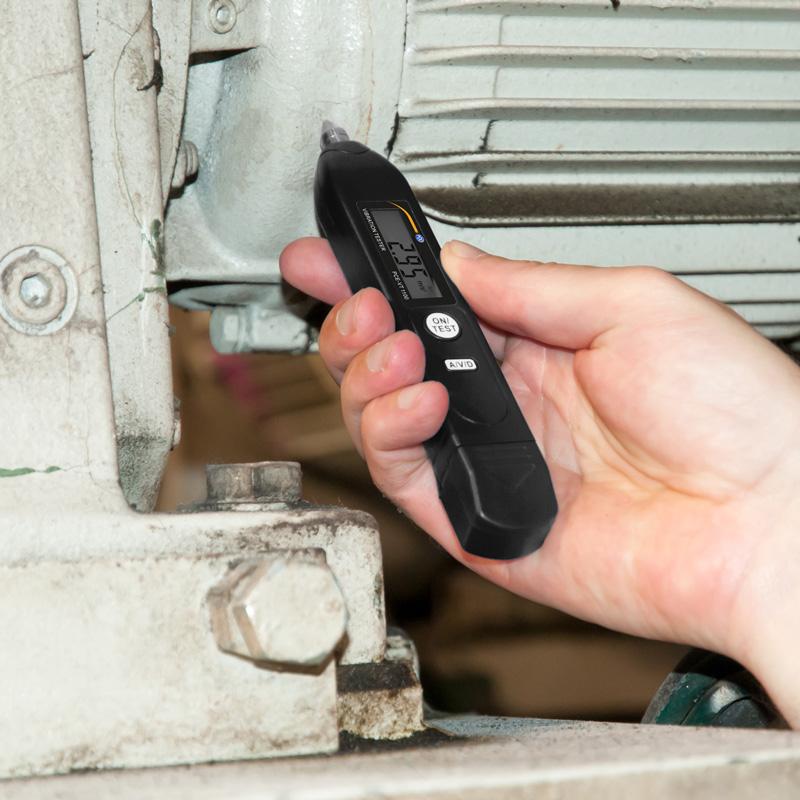

The pen-type vibration meter is used as a portable measuring device to assess and control vibrations in machinery and systems. The meter provides direct evaluation of the system being tested, enabling the user to make corrections to the system on site and re-evaluate it with the meter.
- Measures speed, distance, acceleration
- Keeps the value after each measurement
- Easy handling, powered by batteries
- Wide frequency range
- Automatic shutdown after 20 seconds of inactivity to save battery
- Low battery indicator
Package contents
1 x PCE-VT 1100 Vibration Meter
1 x PCE-VT-NF-10 standard sensor (10mm length)
2 x Batteries

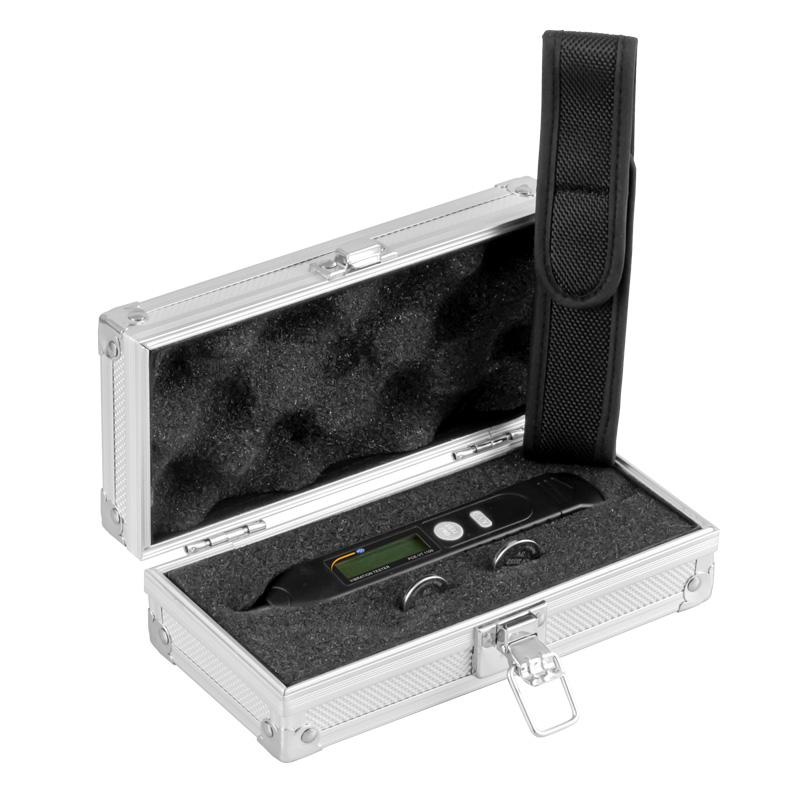

1 x Carrying case
1 x Storage Box
1 x User Manual
