PCE-VT 204 - Vibration meter for machine control and maintenance
| Κωδικός | Τιμή ** | Στοκ | |
|---|---|---|---|
| PCE-VT 204 | €911,00 | Με παραγγελία |
| Vibration measurement range | ||
| Acceleration | 0.5 ... 199.9 m/s², 0.05 ... 20.39 g, 2 ... 656 ft/s² | |
| Speed | 0.5 ... 199.9 mm/s, 0.05 ... 19.99 cm/s, 0.02 ... 7.87 in/s | |
| Offset (peak to peak / pp) | 0.005 ... 1.999 mm, 0.002 ... 0.078 in | |
| Reading | ||
| Acceleration | 0.1 m/s² | |
| Speed | 0.1mm/s | |
| Shift (pp) | 0.001 mm | |
| Accuracy | ||
| Acceleration | ±5% ±2 digits | |
| Speed | ±5% ±2 digits | |
| Shift (pp) | ±5% ±2 digits | |
| Frequency | ||
| Hertz (Hz) | 10 ... 1000 Hz | |
| kilohertz (kHz) | 0.01 ... 1 kHz | |
|
RPM measurement range |
||
| No contact | 10 ... 99999 rpm | |
| With contact | 0.5 ... 19999 rpm | |
| Speed | 0.05 ... 1999 m/min, 0.2 ... 6560 ft/min | |
|
Reading |
||
| 0.1 rpm | <1000rpm | |
| 1 rpm | ≥1000rpm | |
| 0.01m/min | <100 m/min | |
| 0.1m/min | ≥100 m/min | |
| 0.1 ft/min | <1000 ft/min | |
| 1 ft/min | ≥1000 ft/min | |
| Accuracy | ±0.05% ±1 digit | |
| Optical measurement distance | 50 ... 1500 mm / 2 .... 59 in (depending on surface) | |
|
General properties |
||
| Internal memory | Stores up to 1000 readings | |
| Data output | RS-232 | |
| LCD screen | 45 x 48mm / 1.77 x 1.88in | |
| Power supply | 4 x 1.5V AA batteries | |
| Dimensions | 188 x 76 x 47mm / 7.4 x 3.0 x 1.9in | |
| Operating conditions | 0 ... 50ºC / 32 ... 122°F / <80% RH | |
| Weight | 400 g / < 1 lb | |
| Casing | Plastic | |

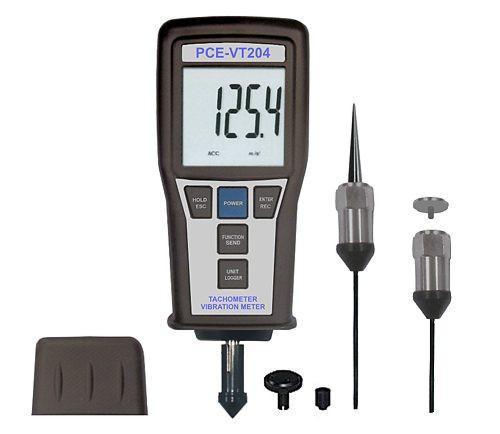

Vibration meter PCE-VT 204
For 3-axis vibration measurements as well as contact (mechanical) and non-contact (optical) rotation measurements
The PCE-VT 204 is a multi-function handheld vibration meter for machine operation monitoring and control. The meter has the ability to accurately measure both revolutions per minute (RPM) and three-axis vibrations such as velocity, displacement and vibration acceleration. He is an expert in testing and inspecting machine components such as engines, gearboxes, gears and wheels.
The meter's sensor can be mounted on the component to be measured with the help of the magnet or the provided fixing screw. Internal frequency filters eliminate the effects of ambient noise, allowing the device to detect specific vibrations.
Note: If you want to transfer readings from the handheld to a computer, the optional software package is required.
- Measures speed or vibration rate, acceleration and displacement as well as revolutions per minute (RPMs)
- Works as both contact (mechanical) and non-contact (optical) tachometer
- It has an internal memory for storing up to 1000 measurements
- Easy
- Low battery indicator
- RS-232 port
- Min/max and data retention
- Features needle sensor, level sensor, adjustable magnetic base, mechanical wheel sensor and built-in optical sensor

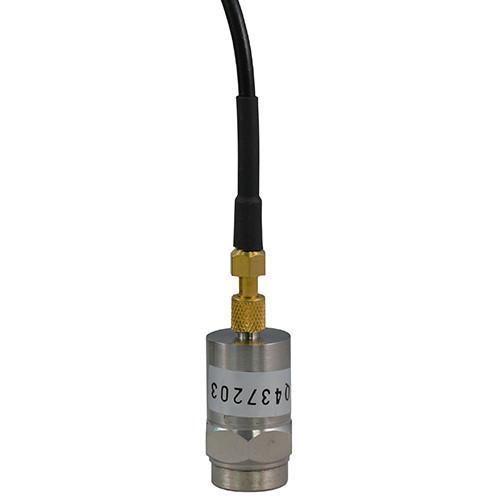

1 x Flat sensor with 1.5 m / 0.06 in cable
1 x 70mm / 2.8 needle sensor

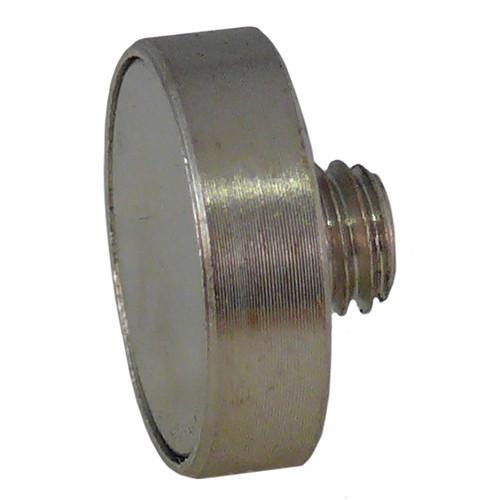

1 x Magnetic base
1 x Mechanical Wheel Sensor
1 x 600 mm / 23 in reflective tape
1 x Carrying case
4 x Batteries
1 x User Manual
